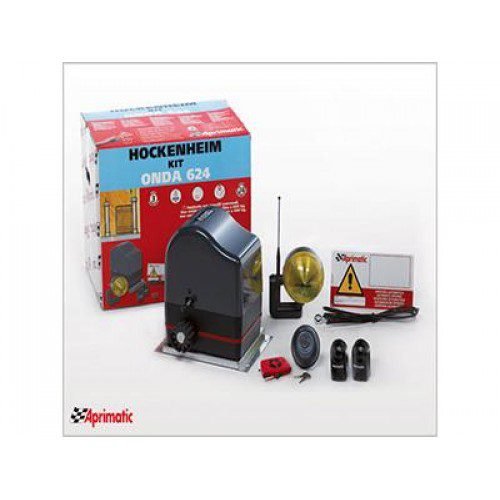

Aprimatic Hockenheim Kit ONDA 624 sliding gate motor accessories set
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

BENINCA BULL5M Sliding Gate Motor 500kg

230Vac sliding gate motor for 500kg residential gates, integrated control unit, ARC 433.92MHz receiver, M4 Z18 rack pinion, IP44 housing, 10.5 m/min opening speed, grease lubrication.

AED 1,900

Product price:AED 1,900
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

BULL5M Gate Motor is a 230 Vac sliding gate automation motor for residential gates in Abu Dhabi with a maximum gate weight of 500 kg. It is designed for controlled residential sliding gate movement, using an integrated control unit and 433.92 MHz ARC receiver for remote operation. The system supports up to 64 stored transmitters and uses encoder management for precise gate manoeuvring. Its compact motor body, metal release lever, and M4 rack pinion support practical installation for villas, private entrances, and residential parking access. Verified kit details show the KBULL5M package with the motor, photocells, LAMPY accessory, and TO.GO2VA transmitter.

Key Features and Technical Specifications

  • Brand: BENINCA / Benincà
  • Model: BULL5M
  • Product type: 230 Vac gear motor with integrated control unit
  • Recommended use: Residential sliding gates
  • Maximum gate weight: 500 kg
  • Power supply: 230 Vac, 50–60 Hz
  • Motor supply: 230 Vac
  • Max absorbed current: 1.3 A
  • Maximum thrust: 650 N
  • Opening speed: 10.5 m/min
  • Duty cycle: 30%
  • Protection level: IP44
  • Built-in control unit: Yes
  • Integrated receiver: Yes
  • Radio receiver: 433.92 MHz
  • Receiver coding: Advanced Rolling Code / ARC
  • Transmitter memory: Up to 64 transmitters
  • Encoder management: Yes, through control unit / MAG.E encoder connection
  • Pinion for rack: M4 Z18
  • Operating temperature: -20°C to +50°C
  • Lubrication: Grease
  • Motor weight: 11.3 kg
  • Kit weight: 12.1 kg
  • Magnetic limit switches: Accessory available, not listed as built-in
  • Virtual encoder: Not specified by manufacturer

Use Cases

Compatibility and Installation Notes

BENINCA BULL5M is suitable for sliding gates up to 500 kg where the gate track, wheels, rack alignment, mechanical stoppers, and electrical supply are correctly prepared. Professional installation is strongly recommended because gate automation requires safe wiring, correct foundation plate fixing, photocell positioning, force adjustment, and emergency release testing. The installer should check that the gate moves smoothly before automation and use safety devices to reduce crushing, impact, dragging, and shearing risks; for technical safety guidance, refer to the BULL5M product manual installation notes.

Packing Includes

  • 1 x BENINCA BULL5M 230 Vac gear motor with integrated control unit
  • 1 x PUPILLA.T pair of adjustable photocells
  • 1 x LAMPY accessory
  • 1 x TO.GO2VA 2-channel 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code (Electric Gate Systems)

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi gives local buyers direct support for gate automation product selection, installation guidance, and after-sales service. You get a suitable residential sliding gate motor with professional advice instead of random copied specifications that may not match the actual kit.

Buy BENINCA BULL5M today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “BENINCA BULL5M Sliding Gate Motor 500kg”

Your email address will not be published. Required fields are marked *

The BENINCA BULL5M and the Beninca BULL10M are both 230 Vac grease-lubricated residential sliding gate motors with M4 Z18 pinion and integrated ARC receiver. The BULL5M handles 500 kg at 650N with 30% duty, weighing 11.3 kg. The BULL10M handles 1000 kg at 1000N with 40% duty, weighing 19 kg. The BULL5M is the correct BENINCA choice for standard Abu Dhabi villa residential sliding gates under 500 kg where a compact, lighter motor is sufficient.

The BENINCA BULL5M includes a pair of PUPILLA.T adjustable photocells — BENINCA’s adjustable-beam outdoor safety sensor. The “T” designation confirms these are the adjustable-angle version, allowing the transmitter and receiver heads to be angled precisely at the gate opening rather than requiring strict parallel alignment between pillars. For Abu Dhabi villa gates where the two gate pillars are not perfectly parallel, the PUPILLA.T’s angular adjustment simplifies photocell alignment and ensures consistent beam coverage across the gate opening.

The BENINCA BULL5M kit includes the TO.GO2VA — BENINCA’s 2-channel 433.92 MHz remote control supporting both Advanced Rolling Code (ARC) and standard Rolling Code. ARC is BENINCA’s enhanced security rolling code standard. Only one transmitter is included in the KBULL5M kit. Additional TO.GO2VA or compatible BENINCA ARC transmitters can be paired to the integrated receiver, which stores up to 64 transmitters for shared access. The LAMPY accessory included in the kit provides the warning blinker function during gate movement.

The BENINCA BULL5M’s 30% duty cycle at 230 Vac and 650N is the standard residential rating, allowing the motor to operate for 18 minutes of every hour before thermal rest. For a typical Abu Dhabi villa with 10–20 gate cycles per day for family vehicles, domestic staff, and deliveries, 30% provides a comfortable safety margin. The motor’s compact 11.3 kg body and grease-lubricated gearbox are correctly scaled for 500 kg residential gates without being oversized for the application.

The BENINCA BULL5M carries a 24-month BENINCA manufacturer warranty. Standard kit: 1 x BULL5M motor with built-in control unit, 1 x PUPILLA.T photocell pair, 1 x LAMPY blinker accessory, 1 x TO.GO2VA transmitter. Foundation plate, rack, and push button must be sourced separately. The MAG.E magnetic encoder accessory can be added to upgrade the system’s position accuracy. Magnetic limit switches are also available as a separate accessory. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
