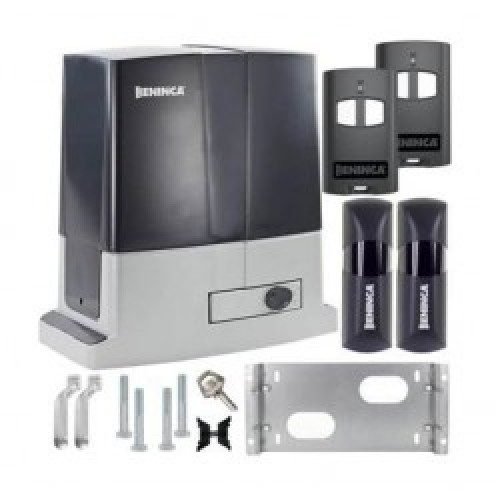

Beninca BULL624SW sliding gate motor kit with remotes, photocells and plate
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

BENINCA BULL624SW 600 kg Sliding Gate Motor

24 Vdc sliding gate geared motor for gates up to 600 kg, with integrated control unit, virtual encoder, magnetic limit switches, IP44 protection and intensive-use operation.





AED 1,175

Product price:AED 1,175
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

BENINCA BULL624SW Motor is a 24 Vdc sliding gate opener designed for Abu Dhabi customers who need reliable automation for gates up to 600 kg. This geared motor is suitable for intensive use and comes with an integrated control unit, integrated receiver, virtual encoder, and magnetic limit switches. Its switching power supply supports 115/230 Vac input, helping reduce energy consumption while supporting long actuator life. With STC movement tracking, amperometric obstacle detection, and optional battery backup integration, it is a strong solution for residential, villa, condominium, and light commercial sliding gate automation.

Key Features and Technical Specifications

  • Brand: BENINCA
  • Model: BULL624SW
  • Product type: Sliding gate geared motor
  • Use category: Residential use
  • Maximum gate weight: 600 kg
  • Motor type: 24 Vdc gear motor for intensive use
  • Power supply: 115/230 Vac, 50–60 Hz
  • Motor supply: 24 Vdc
  • Maximum absorbed current: 3.2 / 1.7 A
  • Maximum thrust: 715 N
  • Opening speed: 5.5 ÷ 11 m/min
  • Duty cycle: Intensive use
  • Protection level: IP44
  • Built-in control unit: Yes
  • Integrated receiver: Yes
  • Receiver frequency: 433.92 MHz
  • Receiver coding: Advanced Rolling Code
  • Receiver storage capacity: 64 transmitters
  • Virtual encoder: Yes
  • Magnetic limit switches: Yes
  • STC system: Yes
  • Anti-crushing system: Amperometric obstacle detection
  • Control unit adjustment: Trimmers and dip-switches
  • Switching power supply: 115/230 Vac
  • Battery backup compatibility: 2 x 1.2 Ah batteries, integrable in the motor
  • KNX integration compatibility: Prepared for X.BE accessory
  • MQTT integration compatibility: Prepared for Q.BE accessory
  • App programming compatibility: BeUP app with PRO.UP / pro.UP interface
  • Pinion for rack: M4 Z14
  • Operating temperature: -20°C to +50°C
  • Lubrication: Grease
  • Operator weight: 8.0 kg
  • Kit weight: 8.5 kg
  • Reinforced foundation plate: Included
  • Foundation plate dimensions: 326 x 164.5 x 2 mm
  • Motor fixing distance: 301 x 75 mm
  • Foundation plate holes: 4 holes Ø 8.5 mm

Use Cases

  • Residential sliding gates up to 600 kg
  • Villa entrance gates
  • Condominium gate automation
  • Light commercial sliding gates
  • Parking entrance gates
  • Private property access control
  • Medium-duty automated gate systems
  • Sliding gates requiring intensive-use 24 Vdc automation

Compatibility and Installation Notes

The BENINCA BULL624SW Motor is compatible with sliding gates up to 600 kg and requires correct rack alignment, foundation plate fixing, magnetic limit switch setup, safety photocell connection, and control unit programming. Its 24 Vdc system, virtual encoder, STC torque management, and amperometric obstacle detection improve movement control, but they must be configured properly during installation. Professional installation is recommended to ensure safe gate travel, correct force settings, and reliable accessory integration. For official installation and technical information, check the Benincà product page.

Packing Includes

  • 1 x BENINCA BULL624SW 24 Vdc geared motor with integrated control unit and virtual encoder
  • 1 x Integrated receiver
  • 1 x Reinforced foundation plate

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies BENINCA automation products with local support, proper product guidance, and practical assistance for gate automation projects in Abu Dhabi. For a 24 Vdc operator like the BULL624SW, correct installation and configuration are not optional; they directly affect safety, smooth operation, and long-term reliability.

Buy BENINCA BULL624SW Motor today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “BENINCA BULL624SW 600 kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

Both handle 600 kg gates with 24 Vdc motors, M4 pinion, virtual encoder, and ARC receiver. The BULL624SW prioritises strength over speed: 715N thrust at 5.5–11 m/min with magnetic limit switches, STC system, and switching power supply. The BENINCA BULL624 TURBO prioritises speed: 330N at 12.5–25.5 m/min, battery backup integrated. The SW at AED 1,175 is significantly more affordable; the TURBO at AED 2,455 suits high-traffic fast-cycling installations. Choose the SW for reliable residential use; the TURBO for fast commercial access.

The SW designation in BULL624SW refers to the motor’s switching power supply. A switching power supply converts 115 or 230 Vac mains input to the 24 Vdc motor supply more efficiently than a conventional transformer, producing less heat and consuming less standby energy. For an Abu Dhabi gate motor running continuously in outdoor conditions, lower heat generation in the power supply circuit contributes to longer component life. The switching supply also handles the wide 115–230 Vac input range, making the BULL624SW tolerant of supply voltage variations.

The BENINCA BULL624SW uses an M4 Z14 pinion (module 4, 14 teeth), while most other BULL motors use M4 Z18 (module 4, 18 teeth). The same module 4 means both are compatible with M4-pitch rack, but the different tooth count changes the motor speed-to-linear-speed ratio — Z14 produces slower gate movement per motor revolution than Z18, contributing to the BULL624SW’s lower 5.5–11 m/min range versus the TURBO’s 25.5 m/min. Confirm M4 Z14 rack compatibility when specifying the rack.

The BENINCA BULL624SW includes magnetic limit switches for precise detection of the gate’s open and closed end positions — a feature absent from the BULL624 TURBO. Magnetic limit switches provide a definitive electrical signal when the gate reaches its mechanical stop, independent of the virtual encoder’s position estimate. The STC (Speed, Torque Control) system monitors and adjusts motor torque dynamically throughout the gate cycle, applying more force when resistance increases (such as a slight slope on the track) and reducing force in the slowdown phase.

The BENINCA BULL624SW carries a 24-month BENINCA manufacturer warranty. The kit includes 1 x motor with built-in control unit, 1 x integrated receiver, and 1 x reinforced foundation plate (326 × 164.5mm, 4 × Ø8.5mm holes). Photocells, remote controls, rack, blinker, and push button must all be sourced separately. Battery backup uses 2 × 1.2 Ah batteries integrable in the motor. Optional X.BE (KNX) and Q.BE (MQTT) accessories are available. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
