BENINCA CP.BULL-RI Control Board

Description

Exact product name available on branded site: CP.BULL-RI

CP.BULL-RI

Slug: beninca-cp-bull-ri-control-unit

Product Description

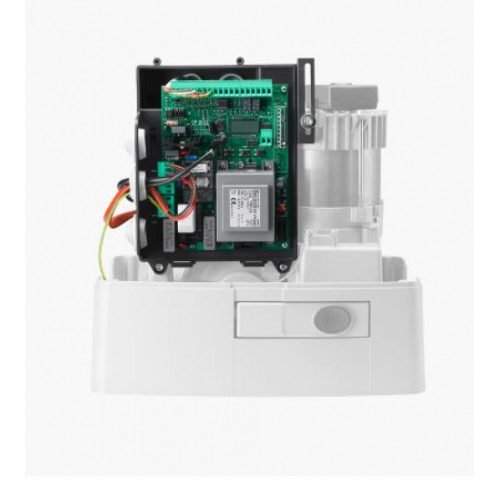

Benincà CP.BULL-RI is an internal control unit engineered for one sliding gate actuator in the BULL series. It serves as the command and safety management board of the automation system, processing operating logic, encoder feedback, limit inputs, accessory connections, and radio control from one central platform. Designed for replacement and service applications in Abu Dhabi, it helps restore stable gate movement, precise stopping, programmable control behavior, and dependable integration with photocells, sensitive edges, flashing lights, and command devices in demanding sliding gate installations.

Key Features and Technical Specifications

• Official product type: internal control unit
• Application: 1 actuator for sliding gates
• Official compatible series: BULL10M, BULL15M, BULL20M
• Control unit power supply: 230 Vac – 50/60 Hz
• Motor power supply: 230 Vac / 1000 W
• Integrated LCD display
• Integrated 433.92 MHz radio receiver
• Receiver memory capacity: 64 codes
• Supported radio coding systems: Advanced Rolling Code, Rolling Code, Fixed Code
• Automatic, semi-automatic, and deadman operating logic
• Encoder input for obstacle detection
• Motor limit switch inputs
• Inputs: stop, open, close, pedestrian, and step-by-step
• Programmable photocell input PHOT O
• Photocell input PHOT C
• Input for N.C. or 8K2 sensitive edge
• Configurable output as gate open indicator, service light, or second radio channel
• Photocell test output
• Flashing light output
• Removable terminal boards
• Operating parameter autoset
• Electronic motor torque adjustment
• Adjustable slow-down systems
• Electronic braking for precise stop with heavy gates
• Advantouch system support for parameter and transmitter management
• Number of maneuvers display/function
• Programming access password
• Maintenance warning function

Main Benefits for the Customer

• Restores stable and accurate sliding gate operation
• Centralizes command management for safer automation control
• Simplifies replacement in compatible Benincà BULL systems
• Supports safety devices and accessory integration from one board
• Improves stopping precision through encoder logic and electronic braking
• Helps achieve smoother gate travel with adjustable slow-down settings
• Reduces setup time with autosetting and onboard display functions
• Supports reliable radio-based access control without a separate receiver

Use Cases

• Replacement of a damaged sliding gate control unit
• Repair of commercial sliding gate automation
• Upgrade of an older compatible BULL gate control system
• Service replacement where encoder-based obstacle detection is required
• Installations needing integrated radio receiver and programmable inputs
• Sliding gate systems requiring photocell and sensitive edge integration

Compatibility and Installation Notes

• Suitable for one Benincà sliding gate actuator only
• Officially compatible with BULL10M, BULL15M, and BULL20M series
• Confirm 230 Vac input and motor voltage matching before replacement
• Supports photocells, flashing light connection, and sensitive edge input
• Supports open, close, stop, pedestrian, and step-by-step commands
• Integrated receiver operates on 433.92 MHz with supported Benincà coding systems
• Programming and wiring should be carried out by a qualified automation technician
• Use the official documentation to verify terminal mapping and setup parameters before installation

Packing Includes

Restore Precise Sliding Gate Control

Order the correct Benincà replacement unit for dependable sliding gate automation in Abu Dhabi — Call/WhatsApp: +971 54 482 5472

Benincà CP.BULL-RI internal control unit for BULL sliding gate actuators, with 230 Vac supply, integrated receiver, encoder input, safety connections, programmable logic, and precise braking.
