BFT ATHOS AC A40 AL Swing Gate Motor

Product Overview

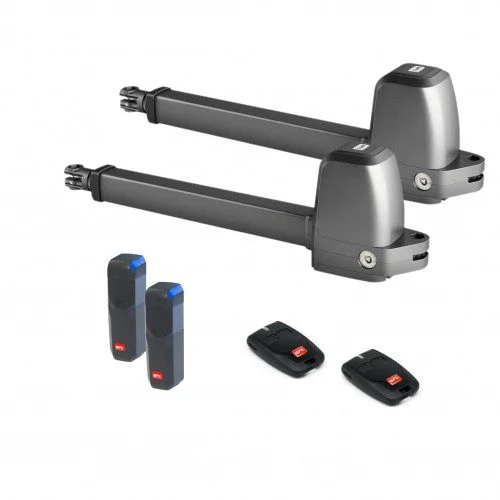

BFT Athos AC A40 AL swing gate motor is a 230V irreversible electromechanical operator designed for swing gate leaves up to 400 kg and 4 m long. It is suitable for Abu Dhabi customers who need a compact, strong and reliable automation solution for residential, commercial and light industrial swing gates. The ATHOS AC A40 AL uses a sturdy structure with die-cast aluminium shells, mechanical locking, slowdown function and ALENA SW2 control compatibility. Its compact body helps installers fit the motor even where space is limited, while the 16-second cycle time supports smooth daily gate operation.

Key Features and Technical Specifications

• Brand: BFT
• Product name: ATHOS AC A40 AL
• Product code: P935116 00002
• Operator type: Irreversible electromechanical operator
• Motor side: Left motor
• Gate type: Swing gates
• Control unit: ALENA SW2
• Board power supply: 230V
• Motor voltage: 230V
• Power consumption: 280W
• Maximum gate leaf width: 4 m
• Maximum gate leaf weight: 400 kg
• Useful rod stroke: 400 mm
• Maximum opening angle: 110°
• Cycle time: 16 seconds
• Type of limit switch: Work time
• Slowdown: Yes
• Locking: Mechanical
• Release system: Triangle key
• Impact reaction: Electronic clutch
• Frequency of use: Semi-intensive
• Protection rating: IP54
• Operating temperature: -20°C to +55°C
• Compact design for flexible installation
• Front and rear brackets aligned for easier installation

Use Cases

• Residential swing gates
• Villa entrance gates
• Commercial swing gate automation
• Parking entrance swing gates
• Warehouse access gates
• Semi-intensive gate automation applications
• Double-leaf swing gate systems when paired with the correct matching operator and control panel

Compatibility and Installation Notes

ATHOS AC A40 AL is compatible with swing gate leaves up to 400 kg and 4 m long, and it is designed to work with the ALENA SW2 control unit for one or two 230V operators. Correct installation requires proper bracket alignment, mechanical gate stops where required, safe electrical wiring, photocell positioning, force adjustment and testing of safety functions before handover. Professional installation is strongly recommended because incorrect geometry, poor cabling or missing safety devices can damage the motor or create unsafe gate movement. For technical details, check the official BFT product information page before installation.

Packing Includes

• For product code P935116 00002: 1 x BFT ATHOS AC A40 AL left motor/operator

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable automation products with local support, product guidance and assistance for correct gate motor selection. For swing gate automation, choosing the right operator, control panel and safety accessories matters more than just buying a motor.

Buy BFT Athos AC A40 AL today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
