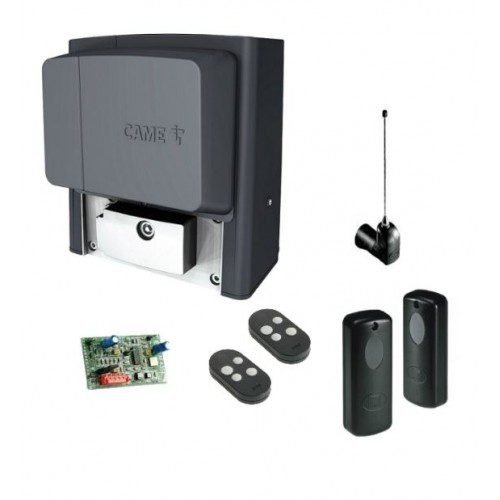

CAME BK 1800 Sliding Gate Motor 1800 kg

230 V heavy-duty sliding gate motor for gates up to 1800 kg and 20 m, with electronic board, programming display, radio decoding, mechanical limit switches and IP44 protection.





AED 3,975

Product price:AED 3,975
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

CAME BK 1800 Motor is a heavy-duty sliding gate automation solution for large gates up to 1800 kg. It is suitable for Abu Dhabi properties that need strong, reliable gate movement for wide entrances, commercial premises, warehouses, villas, and industrial access points. The current CAME BK 1800 equivalent is identified as 801MS-0090 / BKS18AGS, a 230 V automation with an electronic board, programming display, built-in radio decoding, and mechanical limit switches. Its strong thrust, module 4 pinion support, and safety input configuration make it a practical choice for demanding sliding gate automation.

Key Features and Technical Specifications

  • Brand: CAME
  • Product family: BK
  • Current model/code: 801MS-0090 / BKS18AGS
  • Common product name: CAME BK 1800
  • Product type: Sliding gate motor
  • Application: Large sliding gates
  • Motor power supply: 230 V
  • Power supply: 230 V, 50/60 Hz
  • Maximum leaf weight: 1800 kg
  • Maximum leaf length: 20 m
  • Power: 480 W
  • Absorption/current draw: 4.2 A
  • Manoeuvring speed: 10.5 m/min
  • Thrust: 1150 N
  • Protection rating: IP44
  • Pinion module: 4
  • Electronic board: Included with programming display
  • Radio decoding: Built-in radio decoding
  • Limit switches: Mechanical limit switches
  • Magnetic limit switch readiness: Ready for magnetic limit-switch accessory
  • Safety input support: Configurable for 8k2Ω resistive sensitive safety edges
  • User storage: Up to 250 users, as stated for the BK range
  • CAME Connect: Ready through compatible gateway/accessory
  • RIO System 2.0: Compatible through supported plug-in module
  • Operating temperature: Not specified by manufacturer on the verified product page
  • Motor thermal protection: Not specified by manufacturer on the verified product page
  • Self-locking: Not specified by manufacturer on the verified product page

Use Cases

  • Large residential sliding gates
  • Villa entrance gates
  • Commercial sliding gates
  • Warehouse entry gates
  • Industrial access gates
  • Parking entrances
  • Factory and facility access points
  • High-traffic controlled vehicle entrances
  • Long sliding gates up to 20 m where 1800 kg capacity is suitable

Compatibility and Installation Notes

The CAME BK 1800 Motor is suitable for sliding gates up to 1800 kg and up to 20 m leaf length, provided the gate frame, track, rollers, rack, end stops, electrical supply, and safety accessories are correctly prepared. Professional installation is strongly recommended because heavy sliding gates need accurate foundation fixing, rack alignment, limit switch setup, force testing, radio configuration, photocell positioning, and safety edge checks. For more technical details, review the official CAME 801MS-0090 product information.

Packing Includes

  • 1 x CAME 801MS-0090 / BK 1800 sliding gate motor
  • 1 x Integrated electronic board with programming display
  • 1 x Built-in radio decoding
  • 1 x 433.92 MHz plug-in radio frequency card
  • 2 x Four-channel 433.92 MHz rolling code transmitters
  • 1 x Pair of 12–24 V AC/DC outdoor photocells
  • 1 x 120–230 V AC LED flasher

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies heavy-duty gate automation products with local support, correct product guidance, and practical assistance for selecting the right motor capacity. You get a properly described CAME BK 1800 Motor without copied city terms, mixed-brand accessories, or unsupported specifications.

Buy CAME BK 1800 Motor today from PowerGate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “CAME BK 1800 Sliding Gate Motor 1800 kg”

Your email address will not be published. Required fields are marked *

The CAME BK 1800 (model 801MS-0090 / BKS18AGS) is a 230V heavy-duty sliding gate motor for gates up to 1800 kg and 20 m leaf length, delivering 1150N thrust at 10.5 m/min from 480W. It is suited for Abu Dhabi commercial premises, warehouses, villa estates, industrial access points, and large private parking areas where gate weight and leaf span exceed standard residential motor ratings. The built-in electronic board with programming display, radio decoding, and IP44 protection make it a self-contained heavy-gate solution.

The CAME BK 1800’s 20m maximum gate leaf length is the longest specification of any sliding gate motor in the POWERgate Abu Dhabi range. Most residential sliding gate motors are rated for leaves up to 6–8 m. A 20m sliding gate is a large industrial or estate perimeter gate typically found at commercial logistics facilities, factory compounds, or large private estates in Abu Dhabi. The motor’s 1150N thrust and 1800 kg capacity must be matched with a correctly sized and aligned track, rollers, and M4 rack for the full 20m span.

The CAME BK 1800 is ready for CAME Connect — CAME’s cloud-based gate management platform allowing remote monitoring, control, and diagnostics via smartphone. It also supports RIO System 2.0, CAME’s professional-installer platform for managing multiple connected CAME devices across one or several sites from a central dashboard. Both require compatible gateway accessories not included in the standard kit. For Abu Dhabi commercial or multi-property managers needing remote gate monitoring and access reporting, these platforms extend the BK 1800 beyond standalone gate automation.

The CAME BK 1800’s electronic board accepts 8kΩ resistive sensitive safety edges — a professional-grade safety device that continuously checks the edge’s resistive value and immediately triggers a gate reverse if the value drops (edge compressed by an obstacle). This is more reliable than simple NC-contact edges, which cannot detect cable faults. The board is also ready for magnetic limit switch accessories without modification, allowing more precise end-position detection to be added later if required for the specific installation.

The CAME BK 1800 carries a 24-month CAME manufacturer warranty. Kit includes: 1 x 801MS-0090 motor with electronic board and programming display, 1 x built-in radio decoding, 1 x 433.92 MHz plug-in RF card, 2 x 4-channel rolling code transmitters, 1 x 12–24V AC/DC outdoor photocell pair, and 1 x 120–230V LED flasher. The system stores up to 250 users. Rack, foundation plate, safety edges, and push button must be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
