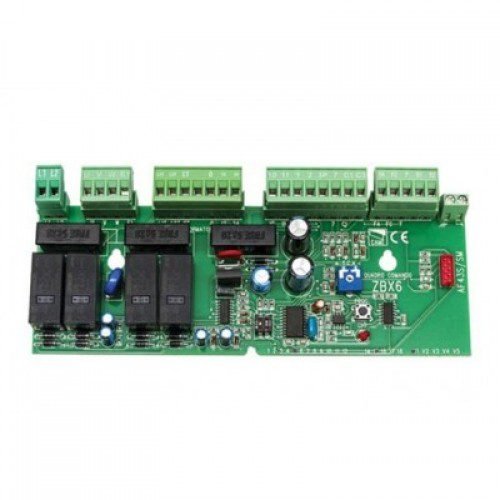

CAME ZBX6 230V sliding gate control board with relays, terminal blocks and electronic adjustment controls

✓ 100% Genuine Brand Product

★ 1 Year Warranty

➤ UAE Wide Delivery

⚙ Technical Support

CAME ZBX6 Sliding Gate Control Board

Name: CAME ZBX6 Control Board | POWERgate Abu Dhabi
Price: 625 AED
Availability: InStock

230V sliding gate control board for compatible CAME BX-A and BX-B operators, with 24V accessory output, fuse protection, automatic closing, photocell inputs, and fixed 80-second working time.

AED 625

Optional Services: Professional installation +1-Year Warranty (+AED 190)

Product price:	AED 625
Total options:
Order total:

- +

Product Overview

CAME ZBX6 control board is a sliding gate PCB controller for Abu Dhabi gate automation systems using compatible CAME BX-A and BX-B series 230V single-phase operators. It is designed to manage motor operation, control commands, safety inputs, accessories, and automatic closing functions from inside the gearmotor control board holder. This board is suitable for maintenance, replacement, and repair work where the existing system matches the required CAME 230V sliding gate automation range. It is not the correct board for every CAME sliding gate motor, so compatibility must be checked before installation. Another CAME sliding gate board is the CAME ZBKN.

Key Features and Technical Specifications

Official model: CAME ZBX6
Product type: Sliding gate control board
Compatible automation type: 230V single-phase automated sliding gates
Compatible CAME series: BX-A / BX-B series
Installation position: Fixed inside the gearmotor circuit board holder
Board power supply: 230V AC
Power terminals: L1 and L2
Line protection: Two 5A fuses
Low-voltage control device protection: 1A fuse
Accessories power output: 24V
Maximum total accessory capacity: 20W
Working time: Fixed at 80 seconds
Automatic closing: Supported with adjustable automatic closing time
Operating mode: Operator-present function supported
Safety device compatibility: Photocells can be connected
Control inputs: Open, close, stop, and command inputs
Radio receiver compatibility: Requires suitable CAME radio receiver card where applicable
BXL 400kg compatibility: Not verified as the correct official control board for CAME BXL 24V models

Use Cases

Sliding gate control board replacement
CAME BX-A sliding gate automation
CAME BX-B sliding gate automation
Residential automatic sliding gates
Villa entrance gate systems
Commercial sliding gate operators
Access automation maintenance
Repair of compatible 230V CAME gate systems

Compatibility and Installation Notes

The CAME ZBX6 control board should only be used with compatible CAME BX-A or BX-B 230V single-phase sliding gate operators. Your rough data mentions CAME BXL 400kg, but the BXL range is listed as a 24V sliding gate solution, so it should not be assumed compatible with ZBX6 without checking the installed motor label, voltage, control housing, wiring, receiver card, photocells, and limit-switch setup. Professional installation is strongly recommended because wrong voltage matching, incorrect safety wiring, or improper programming can damage the board or create unsafe gate movement. For model comparison, check the official CAME BXL sliding gate automation details.

Packing Includes

1 x CAME ZBX6 sliding gate control board

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies gate control boards with local support for automation repairs, replacements, and upgrades. The correct PCB must match the motor voltage, gate series, wiring layout, safety accessories, and receiver setup, so compatibility checking is essential before purchase or installation.

Buy CAME ZBX6 today from POWERgate Abu Dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “CAME ZBX6 Sliding Gate Control Board”

Can the CAME ZBX6 replace the board on a 24V CAME BXL sliding gate motor?

No, not without checking. The CAME ZBX6 is for BX-A and BX-B 230V single-phase sliding operators, while the BXL range is a 24V solution, and BXL 400kg compatibility is not verified for the ZBX6. Read the motor label for voltage and series before ordering, because a voltage mismatch can damage the board.

What does the fixed 80-second working time mean for the CAME ZBX6 on long gates?

The CAME ZBX6 has a fixed working time of 80 seconds, with adjustable automatic closing time. The motor stops after 80 seconds even if the gate has not finished travelling, so on long Abu Dhabi driveway gates, measure the real open and close time first and allow margin before relying on this board.

How do the fuses and 20W accessory limit on the CAME ZBX6 affect photocells and lights?

The CAME ZBX6 has two 5A line fuses, a 1A fuse protecting low-voltage control devices, and a 24V accessory output limited to 20W in total. Add up photocell and lamp loads before connecting accessories at an Abu Dhabi gate, and use the correct fuse ratings when replacing blown fuses.

The CAME ZBX6 supports operator-present mode — when should it be used?

The CAME ZBX6 offers operator-present operation, where the gate moves only while a command is held, plus open, close, stop, and command inputs and photocell connection. Operator-present suits commissioning and fault-finding, but do not leave a gate in that mode in daily use at a shared Abu Dhabi entrance.

At AED 625, what else does the CAME ZBX6 need before it can control remotes?

At AED 625, the CAME ZBX6 ships as the board only, fixed inside the gearmotor’s board holder, and needs a suitable CAME radio receiver card for remotes where applicable. Confirm the motor series and voltage first. Contact POWERgate Abu Dhabi on WhatsApp +971 50 884 4933 to check the board and card together.
