Product Overview

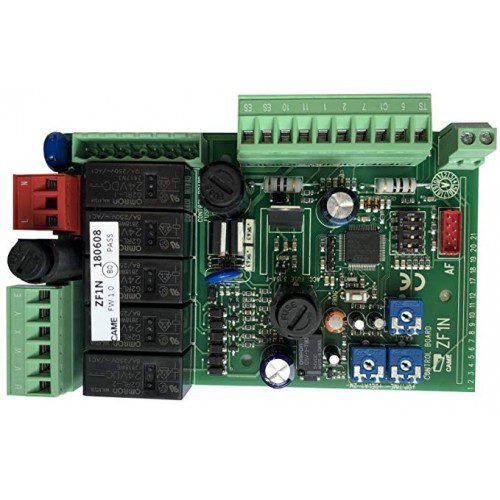

CAME ZF1N control board is a 230V control panel for two-leaf swing gate automation systems in Abu Dhabi. It is designed for CAME swing gate gearmotors used in private homes and apartment buildings, including ATI, FERNI, FAST, and KRONO series motors where system compatibility is correct. The board uses DIP-switch function settings and trimmer adjustments for automatic closing time, operating time, and second motor closing delay. It also supports photocell safety input, step-by-step control, sequential control, torque limiter adjustment, flashing light output, gate-open signal output, and AF card radio control management.
Key Features and Technical Specifications
- Brand: CAME
- Product model: ZF1N
- Product code: 002ZF1N
- Product type: Control panel for two-leaf swing gates
- Intended use: CAME swing gate gearmotors for private homes and apartment buildings
- Compatible CAME motor series: ATI, FERNI, FAST, and KRONO
- Power supply: 230V AC, 50/60Hz
- Motor input voltage: 230V AC
- Maximum power: 320W
- Standby consumption: 40 mA
- Protection rating: IP54
- Casing material: ABS
- Operating temperature: -20°C to +55°C
- Line fuse: 5A
- Control-board fuse: 315 mA
- Accessories fuse: 3.15A
- Low-voltage accessories output: 24V AC, maximum 20W
- Setup method: DIP-switches and trimmers
- Adjustable functions: Automatic closing time, operating time, and Motor 2 closing delay
- Automatic closing time adjustment: 1 to 120 seconds
- Operating time adjustment: 15 to 120 seconds
- Motor 2 closing delay: 3 to 10 seconds
- Command modes: OPEN-CLOSE-INVERT and OPEN-STOP-CLOSE-STOP
- Safety input: Photocell input with reopening during closing
- Safety test: Photocell safety test function
- Radio control support: AF card connector
- Radio users: Up to 50 users with compatible AF card
- Signalling output: Flashing light output, 120V or 230V AC, 25W maximum
- Gate-open signal output: 24V AC, 3W maximum
- Electric lock output: 12V, 15W maximum
- Torque adjustment: Four-position motor torque limiter
Use Cases
- Residential two-leaf swing gates
- Villa swing gate automation
- Apartment building gate systems
- CAME ATI swing gate motor control
- CAME FERNI swing gate motor control
- CAME FAST swing gate motor control
- CAME KRONO swing gate motor control
- Replacement PCB for compatible CAME swing gate systems
- Gate automation maintenance and repair projects
Compatibility and Installation Notes
The CAME ZF1N control board is suitable for compatible CAME two-leaf swing gate motors, especially ATI, FERNI, FAST, and KRONO 230V systems. Installation must be completed by a qualified gate automation technician because mains wiring, motor connections, photocell safety input, AF radio card setup, fuse protection, torque setting, operating time, and closing delay must be configured correctly before use. For technical wiring and safety guidance, refer to the official CAME technical documentation area through the CAME product support page.
Packing Includes
- 1 x CAME ZF1N control board PCB
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies gate control boards with local support for Abu Dhabi customers who need correct replacement parts, product compatibility guidance, and practical help for gate automation maintenance. Buyers get support in choosing the right CAME board for their existing swing gate motor system.
Buy CAME ZF1N today from POWERgate Abu Dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.
