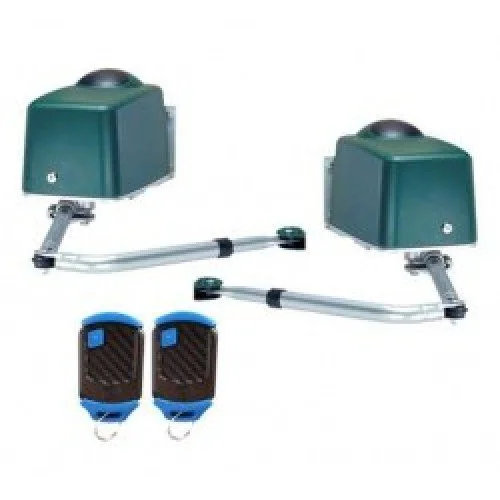

Centurion R6 swing gate motor kit with rotary operators, arms and remote controls shown
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Centurion R6 Rotary Swing Gate Motor

12V DC rotary swing gate motor with 90–240V AC input, 300Nm or 390Nm torque models, IP55 housing, adjustable electronic collision sensitivity and battery-backed power supply options.





AED 4,925

Product price:AED 4,925
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Centurion R6 Swing Motor is a rotary swing gate operator designed for versatile domestic, light-industrial, and industrial gate automation in Abu Dhabi. It is available in Standard Torque and High Torque versions, giving installers options for different gate sizes and site requirements. The Standard Torque model offers 300Nm output torque for gates up to 500 kg, while the High Torque model offers 390Nm output torque for gates up to 750 kg. With 12V DC motor operation, battery-backed power options, smooth sinusoidal movement, and adjustable electronic collision sensitivity, the R6 is built for reliable swing gate automation.

Key Features and Technical Specifications

  • Brand: Centurion Systems
  • Product model: R6
  • Product type: Rotary swing gate motor
  • Available versions: Standard Torque and High Torque
  • Standard Torque operator output torque: 300Nm
  • High Torque operator output torque: 390Nm
  • Standard Torque application: Gates up to 500 kg
  • High Torque application: Gates up to 750 kg
  • Input voltage: 90V – 240V AC
  • Motor voltage: 12V DC
  • Maximum DC current draw: 16A
  • Current consumption with CP13E: 80mA
  • Current consumption with CP84SM: 170mA
  • Domestic power supply: 0.8A CP13E, 7.2Ah battery
  • Light-industrial power supply: 1.8A CP84SM, 7.2Ah battery
  • Industrial power supply: 1.8A CP84SM, 33Ah battery
  • Typical gate operating time: 12 seconds for Standard Torque, 15 seconds for High Torque
  • Housing protection: IP55
  • Temperature range: -15°C to +50°C
  • Collision sensitivity: Electronic, adjustable
  • Mass of motor kit excluding pedestal or wall bracket: 15 kg
  • Smooth sinusoidal movement
  • Designed for retrofitting legacy systems and new installations
  • Can operate from solar supply; manufacturer recommends consulting Centurion Systems for assistance

Use Cases

  • Residential swing gates
  • Villa entrance gates
  • Domestic gate automation
  • Light-industrial swing gates
  • Industrial swing gate automation
  • Wind-exposed gate installations
  • Retrofit upgrades for compatible legacy swing gate systems

Compatibility and Installation Notes

Centurion R6 Swing Motor is compatible with rotary swing gate installations where the correct torque version, power supply, control equipment, gate weight, and site geometry are selected. Installation requires secure mechanical mounting, correct arm positioning, suitable battery and charger selection, electrical wiring, collision sensitivity setup, limit configuration, and final safety testing. Professional installation is recommended because the Standard Torque and High Torque versions must be matched correctly to the gate size and operating environment. For detailed setup guidance, check the official R6 installation manual.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi provides local support for customers who need reliable swing gate automation, correct product selection, and professional installation guidance. We help Abu Dhabi buyers choose the right Centurion R6 torque model based on gate weight, usage level, and site requirements.

Buy Centurion R6 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Centurion R6 Rotary Swing Gate Motor”

Your email address will not be published. Required fields are marked *

The Centurion R6 is a rotary swing gate operator — its motor directly drives a rotary output shaft that mounts to the gate hinge post and turns the gate leaf through its arc, rather than using a linear rod that pushes and pulls the gate from a bracket. This rotary design eliminates the actuator arm and bracket geometry constraints that apply to linear motors (C max distances, stroke lengths, bracket positions). The rotary mechanism mounts directly at or near the hinge point, making it particularly suited to retrofit installations on existing gate posts where linear actuator mounting space is limited.

Choose the Standard Torque R6 (300Nm) for gate leaves up to 500 kg with a 12-second cycle time — suitable for most Abu Dhabi residential villa gates. Choose the High Torque R6 (390Nm) for heavier gate leaves up to 750 kg with a 15-second cycle time — suited to larger compound entrances, heavier steel or iron gates, and wind-exposed installations where extra torque compensates for lateral wind loading. Both versions use the same 12V DC motor platform and power supply options, so the upgrade path from Standard to High Torque is straightforward if gate requirements increase.

The Centurion R6 operates its motor at 12V DC converted from a 90–240V AC input — the only 12V motor in the POWERgate Abu Dhabi range. The 12V architecture is designed for battery integration: the system supports a 7.2Ah battery for domestic and light-industrial use and a 33Ah battery for industrial use, enabling the gate to continue operating through power cuts. Centurion also confirms the R6 is compatible with solar supply, making it the only motor in the range explicitly supporting solar-powered gate automation — highly relevant for Abu Dhabi off-grid or solar-equipped properties.

The Centurion R6 uses sinusoidal movement — the gate accelerates smoothly from rest, reaches peak speed at mid-arc, then decelerates smoothly into the open or closed position. This S-curve motion profile mirrors a sine wave shape rather than the constant-speed-then-abrupt-stop cycle of simpler motors. For Abu Dhabi villa gates made from heavy wrought iron or aluminium profiles, sinusoidal movement reduces mechanical shock at end-of-travel, lowering long-term wear on gate hinges, post fixings, and the motor itself. It also produces a noticeably quieter and more refined gate operation compared to linear motors with abrupt slowdown.

Centurion specifies three power supply tiers for the R6. Domestic: CP13E charger at 0.8A with a 7.2Ah battery — suitable for residential villas with moderate daily gate cycles. Light-industrial: CP84SM charger at 1.8A with a 7.2Ah battery — for busier residential or light commercial access points. Industrial: CP84SM at 1.8A with a 33Ah battery — for high-frequency or extended power-cut scenarios. For most Abu Dhabi villa installations, the domestic tier with CP13E and 7.2Ah is the correct starting point, providing battery backup for power cuts while keeping installation cost appropriate for residential use.

The Centurion R6 carries a 24-month manufacturer warranty. Critical installation factors: the correct torque version (Standard vs High Torque) must match the gate weight — using Standard Torque on a 700 kg gate causes chronic overload and voids warranty. The IP55 rating requires protected mounting away from direct water jets. Abu Dhabi’s peak summer temperatures approaching 50°C sit at the motor’s +50°C maximum operating limit — shaded or ventilated mounting is essential. The battery must be sized correctly for the usage tier. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com for support.
