LIFE DEUS 6 HP Sliding Gate Motor 600 Kg

Product Overview

LIFE DEUS gate motor is a 24V sliding gate automation system for gates up to 600 kg, suitable for Abu Dhabi residential, villa, commercial, and parking entrance applications. The LIFE DEUS 6 HP model is designed for easy installation, reduced standby energy consumption, and improved operating safety. It uses a double magnetic encoder instead of conventional limit switches, helping reduce installation time and improve movement control. With a non-reversing electromechanical gearmotor, CT1 24 Display control unit, IP55 protection, and permanent grease lubrication, it is a reliable choice for modern sliding gate automation.

Key Features and Technical Specifications

• Brand: LIFE Home Integration
• Model: DEUS 6 HP / DEUS6HP
• Product type: Electromechanical gearmotor for sliding gates with control unit
• Maximum gate leaf weight: 600 kg
• Main supply voltage: 230 Vac, 50/60 Hz
• Motor type: 24V DC
• Maximum engine power: 140W
• Maximum motor current: 6A
• Thrust: 400N
• Maximum starting torque: 15Nm
• Maximum speed: 0.23 m/s, approximately 13.8 m/min
• Work intermittence: 80%
• Continuous working time: 20 minutes
• Limit switch type: Without limit switch, double magnetic encoder
• Electronic control unit: CT1 24 Display
• Lubrication: Permanent grease
• Heat protection: 140°C
• Protection level: IP55
• Operating temperature: -20°C to +70°C
• Sound pressure: Less than 70 dB(A)
• Motor insulation: Class D
• Motor dimensions: 260 x 150 x 270 mm
• Motor weight: 4 kg
• Above-ground installation
• Non-reversing motor design
• Low standby power consumption
• Weather-resistant polyester powder-coated motor body

Use Cases

• Residential sliding gates
• Villa gate automation
• Commercial entrance gates
• Parking entrance sliding gates
• Warehouse access gates
• Light industrial gate automation
• Abu Dhabi property access control systems

Compatibility and Installation Notes

LIFE DEUS gate motor is compatible with sliding gates up to 600 kg when the gate is mechanically stable, correctly aligned, and able to move smoothly before automation. Installation requires a proper concrete base, secure anchor plate positioning, correct rack-to-pinion clearance, safe 230 Vac wiring, earth connection, photocell setup, flashing light connection, and final safety testing. The manufacturer recommends installation by professional installers because incorrect wiring, poor gate alignment, or unsafe force settings can cause damage or injury. For official product and technical information, check the manufacturer product page.

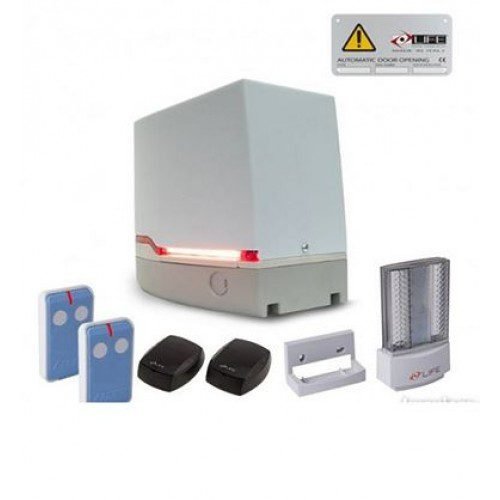

Packing Includes

• 1 x LIFE DEUS 6 HP sliding gate motor for gates up to 600 kg
• 1 x CT1 24 Display control unit with built-in receiver
• 2 x MAXI 2 remote controls, 433.92 MHz LIFE Rolling Code
• 1 x VISIO pair of photocells for outdoor use
• 1 x SUNLED 24 flashing light with built-in antenna
• 1 x TL sign plate
