Product Overview
Marantec Comfort TU800 motor is a 230 V AC sliding gate operator set for gates up to 800 kg. It is designed for private-sector sliding gates where durability, compact installation, and reliable everyday automation are required. The TU800 set includes integrated Control CBX102B, 868 MHz bi.linked radio receiver, hand transmitters, light barrier, premounted module 4 spur gear, and ground console. With 29 Nm output torque, 16 cm/s speed, electronic limit switch, soft-start/soft-stop functions, and IP44 protection, it is a practical solution for Abu Dhabi gate automation projects.
Key Features and Technical Specifications
- Brand: Marantec
- Product model: Comfort TU800
- Article number: 178406
- Product type: Sliding gate operator set
- Maximum gate weight: 800 kg
- Motor voltage: 230 V / 1~
- Motor power: 0.45 kW
- Output torque: 29 Nm
- Maximum running speed: 16 cm/s
- Duty type: S2 – 3 min
- Gear module: Module 4
- Limit system: Electronic limit switch
- Control unit: Integrated Control CBX102B
- Radio receiver: Digital 992 universal receiver, 868 MHz bi.linked
- Hand transmitters: 2 × Digital 572 Micro 2-channel transmitters, 868 MHz bi.linked
- Safety beam: LS22 one-way light barrier without connection cable
- Protection rating: IP44
- Operating temperature: -20°C to +55°C
- Dimensions: 320 × 260 × 184 mm
- Continuous sound pressure level: Max. 70 dB(A)
- Functions: Soft-start, soft-stop, soft-run, partial opening, cycle counter, error signalling, automatic closing function
- Connections: Button input, 4-wire light barrier input, stop circuit, 8.2 kΩ contact strip, 230 V AC signal light
- Output: 24 V DC, max. 500 mA
- Nylon rack: Not specified by manufacturer
- Push button: Not specified by manufacturer
- Battery backup: Not specified by manufacturer
Use Cases
- Residential sliding gates
- Villa entrance gates
- Private property access gates
- Small parking entrance gates
- Light-duty commercial sliding gates
- Compact installation areas with limited space
Compatibility and Installation Notes
Marantec Comfort TU800 motor is compatible with sliding gates up to 800 kg when the gate track, rollers, rack, foundation, and movement path are correctly prepared. Active closing-edge safety is required, and safety accessories should be installed according to the site risk assessment. Professional installation is recommended to ensure correct fixing, electrical wiring, limit switch programming, force setting, safety testing, and reliable operation. For more technical details, check the official Comfort TU series information before installation.

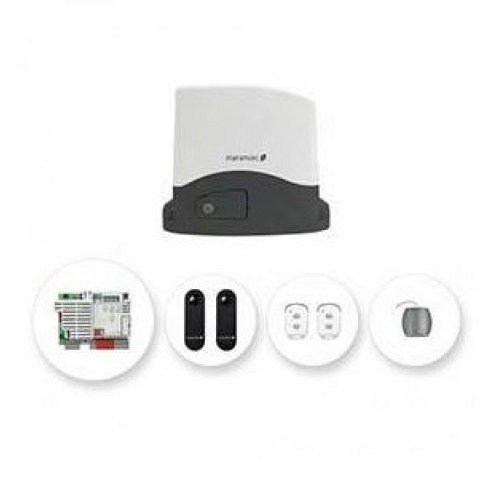

Packing Includes
- Comfort TU800 motor unit with integrated Control CBX102B
- Digital 992 universal receiver, 868 MHz bi.linked
- 2 × Digital 572 Micro 2-channel hand transmitters, 868 MHz bi.linked
- LS22 one-way light barrier without connection cable
- Premounted module 4 spur gear
- Ground console
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi provides local support, product guidance, and professional assistance for customers choosing sliding gate automation in Abu Dhabi. We help you select the right motor based on gate weight, site condition, safety needs, and usage level. Buy Comfort TU800 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
