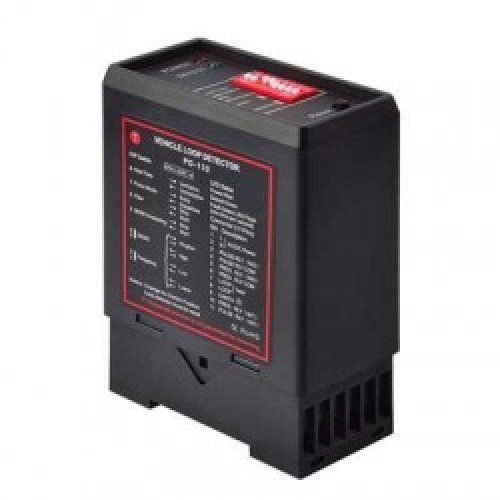

PD 132 Vehicle Loop Detector

Description

PD 132 Vehicle Loop Detector in Dubai, Sharjah, Abu Dhabi UAE.

Model No : PD-132

Exact Product Name on Official Website

• S4A Vehicle Loop Detector for Gate
• Model No.: PD-132

Slug Advice

• pd-132-single-channel-vehicle-loop-detector-12v-abu-dhabi

Product Description

The PD-132 is a single channel inductive vehicle loop detector designed for barrier gates, automatic gate openers, and controlled vehicle access points in Abu Dhabi. On the official S4A product page, it is listed as a vehicle loop detector for gate with model number PD-132 and voltage options that include 12V DC/AC, depending on the unit label. The detector is built for dependable vehicle presence sensing, with fast 10 ms reaction time, adjustable sensitivity in four increments, and loop inductance support from 50 μH to 1000 μH, with an ideal range of 100 μH to 300 μH. Its compact housing, 240V/5A output relay, and configurable holding time make it suitable for entry automation systems that require stable triggering and efficient loop response. For Abu Dhabi access control projects, this detector is a practical choice where accurate vehicle detection and smooth gate or barrier operation are important.

Key Features and Technical Specifications

• Official model number: PD-132
• Official product type: vehicle loop detector for gate
• Single channel inductive vehicle detector design
• 12V DC/AC version available, depending on unit label
• Voltage tolerance: AC +10% / -15%
• Voltage tolerance: DC ±15%
• Power consumption: 4.5VA
• Output relay rating: 240V / 5A
• Frequency range: 20 KHz to 170 KHz
• Reaction time: 10 ms
• Signal holding time: unlimited, or limited to 10 minutes when loop is permanently covered
• Sensitivity: adjustable in 4 increments
• Loop inductance: 50 μH to 1000 μH, ideal 100 μH to 300 μH
• Loop connection wiring: maximum 20 meters, twisted at least 20 times per meter
• Operating temperature: -20°C to +65°C
• Storage temperature: -40°C to +85°C
• Housing size: 78 x 40 x 108 mm

Main Benefits for the Customer

• Delivers fast vehicle detection response, which helps barriers and automated gates react quickly with less delay at entry and exit points.
• Supports four adjustable sensitivity levels, giving installers better control when tuning the system for different loop conditions and site layouts.
• Works with 12V DC/AC versions, making it useful for selected low-voltage automation setups where compact sensing hardware is preferred.
• Offers configurable signal holding logic, allowing the detector to suit continuous presence detection or limited holding when a loop stays covered.
• Handles a broad loop inductance range, which improves flexibility during installation and reduces compatibility issues with properly designed loop wiring.
• Uses a compact housing that fits easily inside control panels without taking unnecessary space in automation cabinets.
• Helps maintain smoother vehicle access management for parking barriers, gate operators, and traffic control points across Abu Dhabi.
• Provides a practical solution for projects that need reliable vehicle presence detection without overcomplicating the barrier control system.

Use Cases

• Vehicle detection for automatic barrier gates at commercial parking entrances and managed access lanes in Abu Dhabi.
• Triggering gate opening logic only when a vehicle is present, helping improve controlled entry and reduce unnecessary barrier movement.
• Safety loop detection for barrier systems where vehicle presence must be confirmed before closing movement is completed.
• Integration with automatic gate opener systems that depend on inductive loop sensing for more reliable vehicle recognition.
• Use in residential compounds, office access points, warehouse lanes, industrial yards, and service road entry control systems.
• Suitable for parking systems where loop-based detection is preferred over less stable trigger methods in daily traffic environments.
• Helpful in projects requiring compact loop detector hardware with fast response, adjustable sensitivity settings, and straightforward cabinet installation.
• A practical replacement option for existing PD-132 based installations where maintaining similar specifications, wiring behavior, tuning characteristics, and reliable long-term field performance is important.

Compatibility and Installation Notes

• Intended for automatic gate opener, barrier gate, and traffic vehicle access applications.
• Install in a convenient weatherproof location as close to the loop as possible.
• Keep the detector away from heat sources and maintain at least 10 mm clearance from nearby devices.
• Correct loop shape, size, turns, and wiring method are important for stable inductive detection performance.
• Frequency can be adjusted to reduce interference between neighboring loops or detectors.
• Automatic sensitivity boost can be enabled through DIP5 when stronger in-presence detection is required.
• Filter mode can be activated through DIP6 in poor site conditions, though this delays reaction time and reduces sensitivity.
• Press RESET after switch changes or relocation so the detector can retune correctly.
• Review the installation setup guide before final fitting.

Packing Includes

• Official source confirms the detector unit and carton data below, while extra accessories are not specified.

Recommended Anchor Text

• installation setup guide

Smarter Detection Starts Here

• Improve your Abu Dhabi gate and barrier response with dependable loop sensing control. Call/WhatsApp: +971 54 482 5472

Single-channel 12V loop detector with 10ms response, 240V/5A relay, 20-170kHz range, adjustable sensitivity, and compact control housing design.
