Product Overview

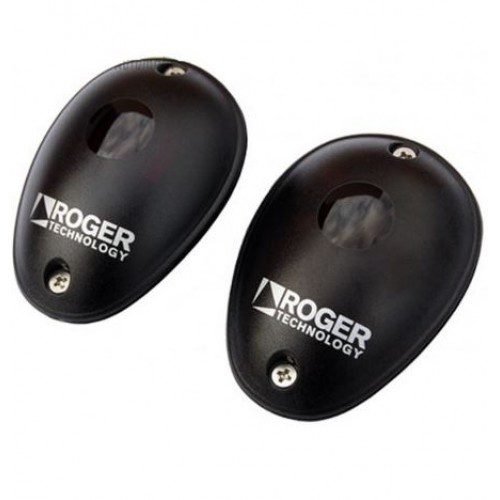

ROGER M90/F4ES Photocell Sensors are slim fixed synchronized photocells for automatic gate safety systems in Abu Dhabi. This pair is designed for external installation and helps detect obstacles between the transmitter and receiver using infrared beam technology. With 24V AC/DC power support, IP55 protection, and a 10–15 m open-field range, it suits residential, commercial, and industrial gate automation setups. The M90/F4ES can also be synchronized with up to 4 photocell pairs, reducing interference in multi-beam safety installations.
Key Features and Technical Specifications
- Product name: ROGER M90/F4ES
- Product type: Pair of synchronized photocells
- Series: M90 slim fixed version
- Installation type: External
- Standard power: 24V AC 50Hz / 12–24V DC
- Current absorption: TX 18mA, RX 27mA
- Protection level: IP55
- Maximum distance in open field: 10–15 m
- Maximum number of synchronized photocell pairs: 4
- Orientation angle: Not adjustable
- Relay contact maximum current: 0.5A RX
- Relay contact maximum voltage: 30V
- Operating temperature: -20°C to +55°C
- Maximum product dimensions: 110 x 35 x 24 mm
- Packed product weight: 0.2 kg
Use Cases
- Residential automatic gate safety systems
- Villa sliding and swing gate automation
- Commercial entrance gates
- Parking access points
- Warehouse gate automation
- Industrial access control gates
- Multi-photocell synchronized gate safety layouts
Compatibility and Installation Notes
ROGER M90/F4ES Photocell Sensors are suitable for compatible gate automation control boards that accept 24V AC/DC photocell safety inputs and relay contact wiring. Correct alignment between TX and RX units is essential, because poor positioning can cause detection errors or unsafe gate operation. Professional installation is recommended to verify wiring, synchronization terminals, beam height, relay output, and control board safety response. For official technical details, review the Roger Technology M90 product page before installation.
Packing Includes
- ROGER M90/F4ES transmitter photocell — 1 unit
- ROGER M90/F4ES receiver photocell — 1 unit
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies gate automation safety accessories with local support for installers, maintenance teams, and property owners. Customers get reliable guidance for product selection, compatibility checking, and replacement support for Roger Technology automation systems.
Buy ROGER M90/F4ES today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
