Product Overview

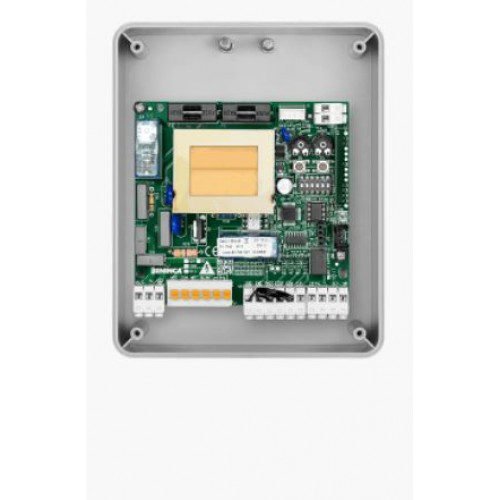

BENINCA CORE gate control board is a 230 Vac control unit for managing one sliding gate actuator or one swing gate leaf in Abu Dhabi automation systems. It is built for 230 Vac motors up to 750 W and includes an integrated 433.92 MHz radio receiver with memory for 64 transmitter codes. The CORE board supports automatic, semi-automatic, and deadman operating logic, making it useful for gate repairs, control panel replacement, and automation upgrades. It also supports encoder input, motor limit switch inputs, photocells, step-by-step control, stop input, flashing light output, and adjustable motor torque for safer gate movement.
Key Features and Technical Specifications
- Brand: BENINCA
- Product model: CORE
- Product type: External gate control unit / control board
- Application: 1 actuator for sliding gate or 1 swing gate leaf
- Control unit power supply: 230 Vac, 50/60 Hz
- Motor power supply: 230 Vac / 750 W
- Integrated receiver: Yes
- Radio frequency: 433.92 MHz
- Memorised transmitter codes: 64
- Radio coding systems: Advanced Rolling Code, Rolling Code, Fixed Code
- Operating logic: Automatic, semi-automatic, and deadman
- Adjustment method: Trimmers and DIP switches
- Terminal boards: Removable
- Encoder input: MAG.E encoder input for obstacle detection
- Limit switch inputs: Motor limit switch inputs
- Control inputs: Step-by-step, stop, and photocell inputs
- Configurable step-by-step input: Can be set as open
- Configurable stop input: Can be set as close or pedestrian
- Photocell input: Programmable as active in opening-closing or closing phase
- Output: Gate open indicator output
- Flashing light output: Supported
- Autosetting: Operation and slowdown parameters
- Slowdowns: Adjustable
- Motor torque adjustment: Electronic torque control on 5 levels
- Advantouch support: Management of radio transmitters stored on the integrated receiver
- Compatibility with Beninca BULL5M, BULL8M, and BULL15M: Not confirmed by manufacturer for CORE
Use Cases
- Sliding gate control board replacement
- Single-leaf swing gate automation
- Residential gate automation
- Villa gate automation
- Commercial gate access systems
- Parking entrance gate control
- Gate motor repair and upgrade work
- Abu Dhabi automation systems using compatible 230 Vac motors
Compatibility and Installation Notes
The BENINCA CORE board is suitable for one 230 Vac sliding gate actuator or one swing gate leaf with a motor rating up to 750 W. It should not be sold blindly as a confirmed replacement for BULL5M, BULL8M, or BULL15M unless the installer checks the motor wiring, encoder type, limit switches, receiver requirements, and original control panel configuration. The rough data mentioned BFT, but that is wrong; this is a Beninca control unit. Professional installation is recommended because wrong wiring or incorrect force settings can damage the gate motor or create safety risks. Installers should review the official Beninca CORE technical information before connecting accessories, photocells, flashing light, and safety inputs.
Packing Includes
- 1 x BENINCA CORE control board / control unit
- Built-in 433.92 MHz radio receiver
