Product Overview

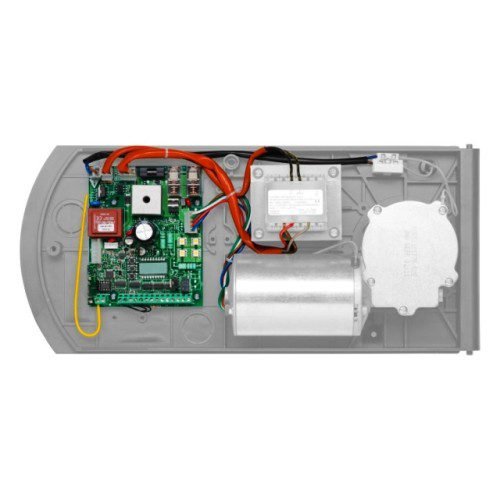

BENINCA CP J4ESA Control Board is an internal control unit for managing one BENINCA JM.3ESA or JM.4ESA actuator in automatic gate and garage automation systems. Built for 230V AC control-unit input and 24V DC motor supply, this board supports precise encoder management, automatic operating-parameter setup, electronic torque adjustment, and integrated radio control. It is suitable for Abu Dhabi customers who need a replacement control board for maintenance, repair, or system restoration. The integrated LCD display and 433.92 MHz receiver make setup and transmitter management more practical for professional installers.
Key Features and Technical Specifications
- Product model: BENINCA CP.J4ESA
- Product type: internal gate/garge motor control board
- Application: 1 actuator, BENINCA JM.3ESA or JM.4ESA series
- Control unit power supply: 230V AC, 50/60Hz
- Motor power supply: 24V DC / 8.5A
- Integrated LCD display: yes
- Integrated radio receiver: 433.92 MHz
- Receiver memory: up to 64 transmitters
- Radio encoding systems: Advanced Rolling Code, Rolling Code, and Fixed Code
- Encoder management: yes
- ESA System: integrated energy-saving system
- Operating logic: automatic and semi-automatic
- Inputs: step-by-step, open, close, stop, and photocell
- Safety edge input: N.C. or 8K2 sensitive edge
- Configurable output: gate open indicator, service light, second radio channel, or area light
- Flashing light output: yes
- Photocell testing: supported
- Autosetting of operating parameters: supported
- Electronic torque adjustment: supported through STC System
- Anti-crushing safety: amperometric detection with encoder management
- Soft start: slower starting speed setting for 2 seconds
- Slow-downs: adjustable
- Advantouch system support: parameter configuration and transmitter management
- Number of manoeuvres counter: available
- Programming access password: available
- Maintenance warning function: available
Use Cases
- Automatic gate control board replacement
- BENINCA JM.3ESA and JM.4ESA actuator systems
- Residential gate automation in Abu Dhabi
- Garage motor control applications
- Commercial gate maintenance projects
- Access automation repair and upgrade work
- Systems needing encoder-based control and safety management
- Sites requiring integrated 433.92 MHz radio receiver support
Compatibility and Installation Notes
BENINCA CP.J4ESA is compatible with one BENINCA JM.3ESA or JM.4ESA actuator and should be installed only after confirming the motor model, voltage supply, encoder wiring, safety inputs, photocells, radio controls, and limit settings. Professional installation is strongly recommended because incorrect wiring or programming can damage the board, reduce safety performance, or cause unreliable gate movement. For more technical details, review the official Beninca internal control unit page.
Packing Includes
- 1 × BENINCA CP.J4ESA internal control unit
