Product Overview

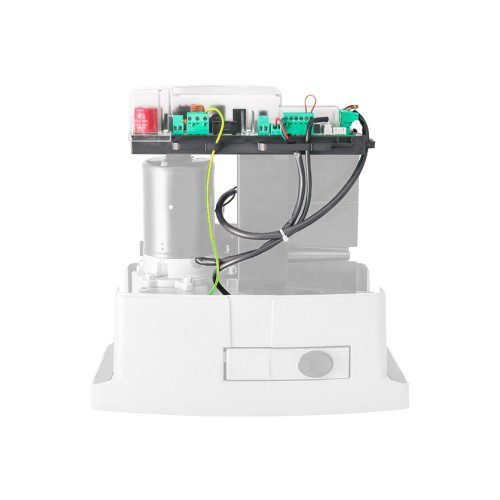

BENINCA CP.B24 TURBO control board is an internal gate automation controller for Abu Dhabi sliding gate systems using BULL624 TURBO and BULL1224 TURBO operators. It manages one 24V DC actuator and supports reliable communication between the motor, safety inputs, photocells, radio receiver, and command devices. The board includes an integrated LCD display, removable terminal boards, automatic setup functions, electronic torque adjustment, and a built-in 433.92MHz receiver with ARC coding. It is suitable for replacement, maintenance, or upgrade work where a compatible BENINCA TURBO sliding gate control unit is required. A related BENINCA board is the BENINCA CP.BISON OTI.
Key Features and Technical Specifications
- Brand: BENINCA
- Product model: CP.B24 TURBO
- Product type: Internal control board for sliding gate automation
- Application: 1 actuator for sliding gates, BULL624 TURBO and BULL1224 TURBO series
- Control unit power supply: 115V AC or 230V AC selectable, 50/60Hz
- Motor power supply: 24V DC / 20A
- Integrated LCD display: Yes
- Integrated radio receiver: 433.92MHz
- Radio memory: 512 codes
- Radio coding: ARC Advanced Rolling Code
- Terminal boards: Removable terminal boards
- Operating logic: Automatic, semi-automatic, and deadman’s logic
- Motor limit switch inputs: Yes
- Command inputs: Step-by-step, open, close, and stop
- PHO photocell input: Configurable for opening-closing or closing phase only
- PHC photocell input: Active in both opening and closing phases
- Sensitive edge input: N.C. or 8K2
- Safety sensor input: Yes
- Pedestrian opening: OPEN input configurable as pedestrian
- Configurable outputs: Gate open indicator, courtesy light, zone light, second radio channel, photocell testing, flashing light, or alarm contact
- Flashing light output: Yes
- KNX connection: Predesigned through optional X.BE board
- MQTT connection: Predesigned through optional Q.BE accessory
- Opposed sliding gates: Predesigned through optional SIS synchronisation board
- BeUP app support: Possible with PRO.UP accessory
- Operating parameter auto-setting: Yes
- Torque adjustment: Electronic torque adjustment with STC System
- Safety function: Anti-crushing safety with amperometric obstacle detection
- Encoder type: Virtual encoder
- Slow-downs: Adjustable
- Battery charger: Integrated, compatible with DA.BT2 / DA.BT6 batteries
Use Cases
- BENINCA BULL624 TURBO sliding gate automation
- BENINCA BULL1224 TURBO sliding gate automation
- Residential sliding gate control systems
- Commercial gate entrances
- Industrial sliding gate automation
- Parking entrance automation
- Gate control board replacement
- Automation maintenance and upgrade projects
- Access control systems using photocells, sensors, and remote transmitters
Compatibility and Installation Notes
The BENINCA CP.B24 TURBO control board is designed for BENINCA BULL624 TURBO and BULL1224 TURBO sliding gate operators. It must be matched with the correct 24V DC motor, limit switch wiring, photocells, sensitive edge, safety sensor, flashing light, and approved radio accessories. Professional installation is recommended because wrong voltage selection, poor terminal wiring, incorrect safety input setup, or badly adjusted torque settings can damage the automation system or create unsafe gate movement. For official technical details, check the BENINCA CP.B24 TURBO product information.
Packing Includes
- 1 × BENINCA CP.B24 TURBO control board
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies gate control boards with local support for Abu Dhabi automation customers. Buyers get practical guidance for model compatibility, wiring requirements, replacement selection, and accessory matching, so the control board is fitted to the right BENINCA gate operator instead of being chosen by guesswork.
Buy BENINCA CP.B24 TURBO today from POWERgate Abu Dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.
