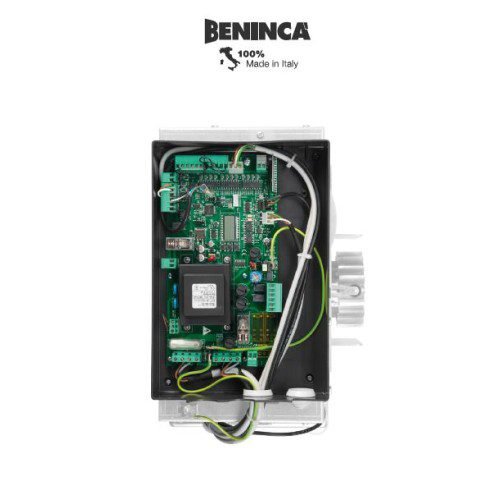

BENINCA CP BISON OTI Control Board

Description

Exact product name available on branded site: CP.BISON OTI
Official branded site terminology: internal control unit / control unit. (Benincà)

CP.BISON OTI

Slug: beninca-cp-bison-oti-control-unit

Product Description

The Benincà CP.BISON OTI is an internal control unit designed to manage one sliding gate operator from the BISON25 OTI, BISON35 OTI, and BISON45 OTI range. It handles command logic, inverter-ready motor management, safety inputs, obstacle detection through encoder input, and integrated radio control in one board. For replacement and upgrade jobs in Abu Dhabi, this unit is a strong choice where stable automation logic, precise maneuver control, and dependable accessory integration are required for intensive sliding gate systems in demanding applications. (Benincà)

Key Features and Technical Specifications

• Official product name: CP.BISON OTI
• Official product type on the brand site: internal control unit
• Application: 1 actuator for sliding gates
• Compatible operator series: BISON25 OTI, BISON35 OTI, and BISON45 OTI
• Control unit power supply: 230 Vac three-phase or 400 Vac three-phase
• Motor power supply: 230 Vac / 750 W three phase with inverter or 400 Vac / 1500 W three phase with inverter
• Integrated LCD display
• Integrated 433.92 MHz radio receiver
• Receiver capacity: 64 transmitters
• Supported radio encoding systems: Advanced Rolling Code, Rolling Code, and Fixed Code
• Removable terminal boards
• Control logics: automatic, semi-automatic, and deadman’s logic
• Encoder input for obstacle detection
• Motor limit switch inputs
• Command inputs: open, close, pedestrian, step-by-step, and stop
• Inputs for 4 pairs of photocells, programmable by phase, with PHOTO TEST logic
• Safety edge input: N.C. or 8K2 sensitive edge
• Safety sensor input
• Predesigned for inverter connection
• Output for gate open indicator
• Configurable output for service light, area light, or second radio channel
• Photocell testing output
• Output for flashing light connection
• Autosetting of operating parameters
• Electronic motor torque adjustment
• Adjustable slow-down systems
• Electronic braking for more precise stopping on heavy gates
• Advantouch system for parameter setup and radio transmitter management
• Maneuver counter
• Programming access password
• Maintenance warning (Benincà)

Main Benefits for the Customer

• Delivers stable and consistent control of heavy-duty sliding gate movement
• Supports accurate command handling for open, close, pedestrian, stop, and step-by-step functions
• Simplifies replacement of a faulty original board within compatible BISON OTI systems
• Improves safety integration through support for photocells, sensitive edge input, safety sensor input, and PHOTO TEST logic
• Enhances control precision through encoder-based obstacle detection and adjustable slow-down management
• Reduces setup effort with autosetting functions and integrated display-based configuration
• Supports integrated radio control and accessory connectivity in one unit (Benincà)

Use Cases

• Replacement control unit for a damaged or non-responsive board in a BISON OTI sliding gate operator
• New control unit installation in industrial or commercial sliding gate automation systems
• Upgrade of an older compatible gate setup requiring integrated receiver and richer safety input handling
• Sliding gate projects that need inverter-ready control logic and precise stopping behavior
• Sites where accessory integration for photocells, flashing light, and status indication is required (Benincà)

Compatibility and Installation Notes

• Intended for one sliding gate actuator only
• Designed for use with Benincà BISON25 OTI, BISON35 OTI, and BISON45 OTI operators
• Suitable for three-phase 230 Vac or 400 Vac configurations only, according to the matched operator and motor setup
• Supports limit switch, encoder, photocell, flashing light, safety edge, safety sensor, and command input connections as listed by the manufacturer
• Integrated 433.92 MHz receiver supports three encoding systems and stores up to 64 transmitters
• Voltage matching, terminal wiring, and parameter setup must follow the manufacturer’s technical documentation
• Installation and programming should be carried out by a qualified gate automation technician
• For terminal mapping and setup reference, see the manufacturer documentation. (Benincà)

Packing Includes

Only the control unit identity and built-in receiver are clear from the official product listing; other box contents are not specified on the branded page. (Benincà)

Order the Right Replacement Control Unit Today

Call/WhatsApp: +971 54 482 5472 to secure the correct Benincà control unit for your sliding gate system with expert support in Abu Dhabi.

Benincà CP.BISON OTI internal control unit for sliding gate systems, with inverter-ready three-phase motor control, encoder management, safety inputs, LCD display, and integrated receiver.
