Product Overview

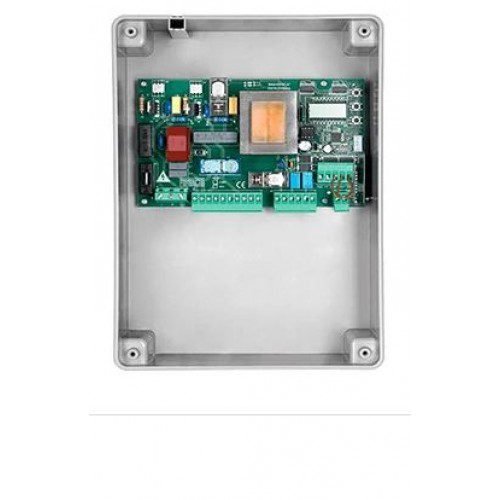

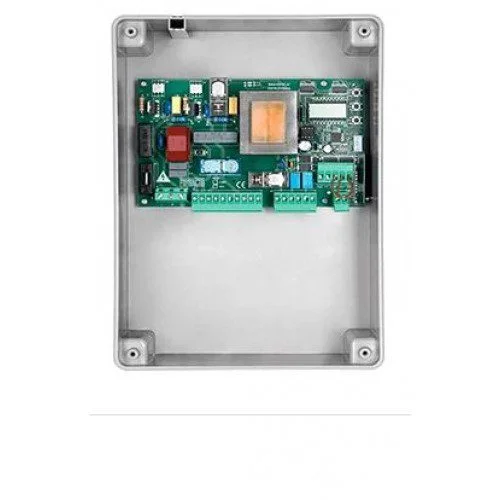

Beninca Heady control board is a 230Vac electronic control unit for swing gate motors in Abu Dhabi. It is designed to control 1 or 2 swing gate actuators and includes an integrated 433.92 MHz radio receiver, LCD display, removable terminal boards, photocell inputs, pedestrian opening input, stop input, flashing light output, and electronic torque adjustment. It is a practical PCB replacement or upgrade for compatible Benincà 230Vac swing gate systems, especially where reliable motor control, safety device management, and simple programming are required for daily residential or commercial gate automation.
Key Features and Technical Specifications
- Brand: Benincà.
- Model: HEADY.
- Product type: Electronic control board / external control unit.
- Application: 1 or 2 actuators for swing gates.
- Control unit power supply: 230Vac, 50/60Hz.
- Motor power supply: 230Vac / 500W + 500W.
- Integrated display: LCD display.
- Radio receiver: Integrated 433.92 MHz receiver.
- Memorised transmitters: Up to 64 codes.
- Radio coding systems: Advanced Rolling Code, Rolling Code, and Fixed Code.
- Terminal boards: Removable terminal boards.
- Operating logic: Automatic and semi-automatic.
- Control inputs: Step-by-step, pedestrian, and stop.
- Photocell inputs: Separate photocell inputs for opening-closing and closing phases.
- Electric lock / service light output: 230Vac.
- Gate open indicator output: Available.
- Second radio channel output: Available.
- Photocell testing output: Available.
- Flashing light output: Available.
- Electronic torque adjustment: Separate adjustment for each motor.
- Operating time adjustment: Available.
- Slowdowns: Fixed slowdowns.
- Advantouch support: Parameter configuration and transmitter management.
- Number of maneuvers: Available.
- Programming access password: Available.
- Maintenance warning: Available.
Use Cases
- Swing gate PCB replacement.
- Residential automatic gate systems.
- Villa swing gate motors.
- Commercial entrance gates.
- Access automation maintenance.
- Gate motor upgrades.
- Control board replacement for compatible Benincà 230Vac actuators.
- Automatic gate systems requiring receiver, photocell, and flashing light control.
Compatibility and Installation Notes
Beninca Heady control board is compatible with 230Vac Benincà swing gate systems using 1 or 2 actuators, including compatible BOB30M, BOB50M, BILL30M, BILL40M, and BILL50M setups where the wiring, motor voltage, safety accessories, and installation layout match the board requirements. Professional installation is strongly recommended because incorrect motor wiring, photocell configuration, torque setting, radio programming, or output connection can damage the board or create unsafe gate movement. For technical setup guidance, refer to the official HEADY control unit page.
Packing Includes
- 1 × Benincà HEADY control board.
