Product Overview

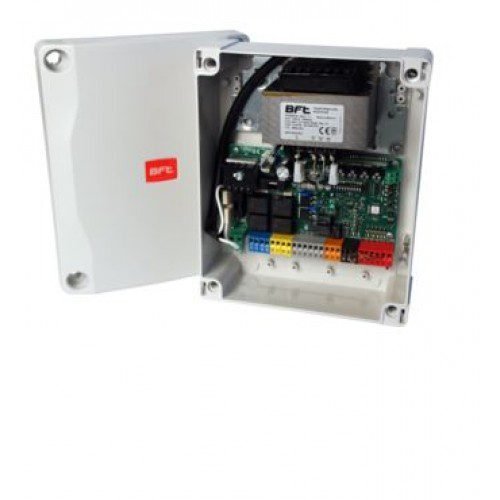

BFT ZARA BT L2 control board is a 24V swing gate control panel for one or two compatible BFT electromechanical operators in Abu Dhabi. It is designed for reliable swing gate automation where accurate motor control, safety input management, and simple setup are required. The board supports dip-switch and trimmer programming, electronic torque control, obstacle detection, removable terminal blocks, and a built-in rolling code radio receiver. It is a practical replacement PCB for compatible BFT swing gate systems, especially for maintenance, repair, or restoring smooth gate operation.
Key Features and Technical Specifications
- Brand: BFT
- Model: ZARA BT L2
- Product code: D113796 00002
- Alternate part number: 2607507
- Product type: Swing gate control board / control panel
- Application: Control of 1 or 2 24V BT motors
- Board power supply: 220–230V, 50/60 Hz
- Motor output: 24V
- Maximum motor power: 40W + 40W
- Maximum total power: 130W
- Operating temperature range: -20°C to +55°C
- Motor relay switching current: 10A
- Accessory power supply: 24V, max 0.2A
- Solenoid lock output: 24V, max 15W
- Flashing light output: 24V, max 25W
- Maximum work time: 3 minutes
- Maximum memorised transmitters: 63
- Programming method: Dip switches and trimmers
- Radio receiver: Built-in rolling code receiver with transmitter cloning
- Safety functions: Electronic torque control with obstacle detection
- Safety inputs: STOP, PHOT photocell input, BAR safety edge input
- Command inputs: START and OPEN
- Limit switch inputs: Motor 1 and motor 2 limit switch inputs
- Terminal strip: Removable terminal block for easier maintenance and replacement
- Supported protocol: EELINK
- Compatible BFT operators listed in rough data: PHOBOS BT A25 and PHOBOS BT A40
- Compatibility with LIBRA C MA, LIBRA, LIBRA R, LIBRA MA R: Not specified by manufacturer in the checked manual
Use Cases
- Residential swing gate automation
- Villa swing gate control systems
- Commercial swing gate entrances
- BFT PHOBOS BT A25 control board replacement
- BFT PHOBOS BT A40 control board replacement
- Maintenance of 24V swing gate operators
- Access control gate repair
- Pedestrian opening control
- Gate automation PCB replacement in Abu Dhabi
Compatibility and Installation Notes
BFT ZARA BT L2 control board is intended for compatible 24V BFT swing gate operators and should not be treated as a universal PCB for all swing gate motors. A qualified gate automation technician should install it because the board requires correct mains wiring, motor output wiring, limit switch setup, photocell connection, safety edge configuration, radio programming, and torque adjustment. Incorrect setup can damage the PCB or create unsafe gate movement. For setup and wiring details, review the BFT ZARA BTL2 installation manual.
Packing Includes
- 1 x BFT ZARA BT L2 control board
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies gate control boards with local support for replacement, repair, and automation maintenance. Buyers get help checking compatibility with their existing BFT swing gate motor before purchase, reducing the risk of ordering the wrong PCB or installing an unsafe control setup.
Buy BFT ZARA BT L2 today from POWERgate abu dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.
