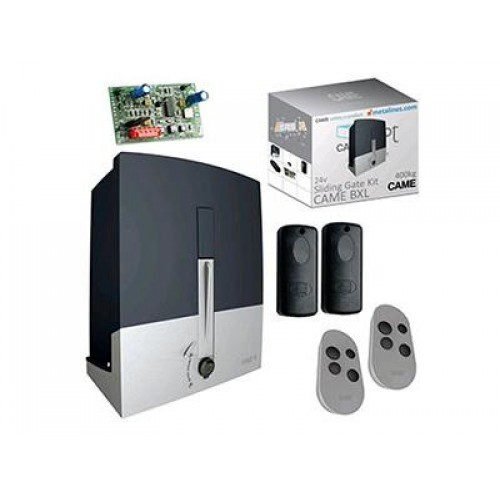

CAME BX-64 sliding gate motor kit with remotes, photocells and control board
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

CAME BX-64 400kg Sliding Gate Motor

230 V AC electromechanical sliding gate operator for gates up to 400 kg, with ZBX6 control board, mechanical limit switch, 30% duty cycle, IP54 housing, manual release and 10 m/min speed.



AED 1,475

Product price:AED 1,475
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

CAME BX-64 sliding gate motor is a 230 V AC electromechanical operator for residential sliding gates up to 400 kg in Abu Dhabi. It is designed for private home gate automation where controlled movement, reliable opening, and safe daily operation are required. The motor uses the ZBX6 electronic board, mechanical limit switches, manual release, and adjustable operating functions for practical residential use. With IP54 protection, 30% duty cycle, and 10 m/min maximum speed, it is suitable for light-duty sliding gate systems installed by qualified automation technicians.

Key Features and Technical Specifications

  • Brand: CAME
  • Model: BX-64
  • Product type: Sliding gate motor
  • Application: Residential sliding gate automation
  • Maximum gate weight: 400 kg
  • Power supply to control panel: 230 V AC, 50/60 Hz
  • Motor power supply: 230 V AC, 50/60 Hz
  • Maximum draw: 2.6 A
  • Power: 200 W
  • Maximum torque: 24 Nm
  • Reduction ratio: 1/33
  • Thrust: 300 N
  • Maximum speed: 10 m/min
  • Duty cycle: 30%
  • Protection rating: IP54
  • Insulation class: I
  • Motor heat protection: 150°C
  • Gearmotor weight: 15 kg
  • Control board: ZBX6 electronic board
  • Limit switch type: Mechanical
  • Manual release: Yes
  • Encoder-based control: Not specified by manufacturer for BX-64
  • Magnetic limit switches: Not specified by manufacturer for BX-64
  • Remote storage capacity: Not specified by manufacturer for BX-64

Use Cases

  • Residential sliding gates
  • Private home gate automation
  • Villa entrance gates
  • Light-duty parking entrances
  • Small residential access points
  • Low-traffic sliding gate systems
  • Manual-release gate automation where power failure access is required

Compatibility and Installation Notes

The CAME BX-64 is compatible with sliding gates up to 400 kg where the gate is mechanically stable, balanced, aligned, and fitted with proper opening and closing stops. Professional installation is required because the operator must be fixed on a solid base, aligned correctly with the rack, connected safely to the 230 V AC supply, and tested with photocells, flashing light, push button, and other safety devices. The official CAME BX range also confirms residential sliding gate use and technical safety features for the BX platform.

Packing Includes

  • 1 x CAME BX-64 400 kg sliding gate motor
  • 1 x Integrated ZBX6 control board
  • 2 x Remote controls
  • 1 x Pair of photocells
  • 1 x Remote receiver
  • 1 x Blinker light
  • 1 x 4 m nylon rack
  • 1 x Push button

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable gate automation products with local product guidance, technical support, and installation-focused assistance. For residential sliding gate systems, buyers get practical support before purchase and dependable after-sales help from a local Abu Dhabi supplier.

Buy CAME BX-64 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “CAME BX-64 400kg Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The CAME BX-64 and the CAME BX are both residential 230V sliding gate motors with IP54 and complete accessory kits. The BX-64 handles 400 kg at 30% duty with ZBX6 board, mechanical limit switches, 300N thrust, 24 Nm torque, and 10 m/min. The BX handles 800 kg at 17 cycles/hour with encoder-based control, EU 2023/826 compliance, self-diagnosing safety, CAME KEY support, and 250-user memory. Choose the BX-64 for lighter Abu Dhabi villa gates under 400 kg where a simple, reliable residential motor at AED 1,475 is sufficient.

The CAME BX-64’s 24 Nm maximum torque at the output shaft is produced by the motor’s speed reduced through a 1:33 gearbox ratio. A 1:33 ratio means the motor shaft turns 33 times for every one revolution of the output pinion, multiplying force 33-fold while reducing speed proportionally. This converts the motor’s high-speed, low-torque output into the 300N linear thrust acting on the gate rack at 10 m/min. Gate rollers and track must be in good condition; worn bearings can require force above the 300N thrust to move a 400 kg gate.

IP54 on the CAME BX-64 is the same protection rating as the premium CAME BKV range (BKV15AGS, BKV20AGS, BKV25AGS) and the BFT SP3500 TRI 400. IP54 means dust-tight protection and water jet resistance from any direction. Most entry-level residential sliding gate motors in the range carry IP44 or lower. For Abu Dhabi villa gate pillars exposed to fine sand, irrigation overspray, and occasional rain, IP54 on the BX-64 provides meaningfully better long-term protection than expected at this price point.

The CAME BX-64 uses mechanical limit switches to define the gate’s open and closed positions, without an encoder or electronic position tracking. The ZBX6 board stops the motor when the mechanical switch is physically triggered at the travel endpoint. The CAME BX uses encoder-based control for more precise position monitoring throughout the travel cycle. Without an encoder, the BX-64 relies on the limit switch contact and the board’s current monitoring for obstacle detection, which has less precision than encoder-based force profiling for a 400 kg gate.

The CAME BX-64 carries a 24-month CAME manufacturer warranty. Kit includes: 1 x BX-64 motor with ZBX6 control board, 2 x remote controls, 1 x photocell pair, 1 x remote receiver, 1 x blinker light, 1 x 4m nylon rack, and 1 x push button. Foundation plate and steel rack must be sourced separately. The 150°C thermal protection safeguards the 200W motor under Abu Dhabi’s outdoor temperatures. At AED 1,475, this is the most affordable complete CAME sliding gate kit in the range. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
