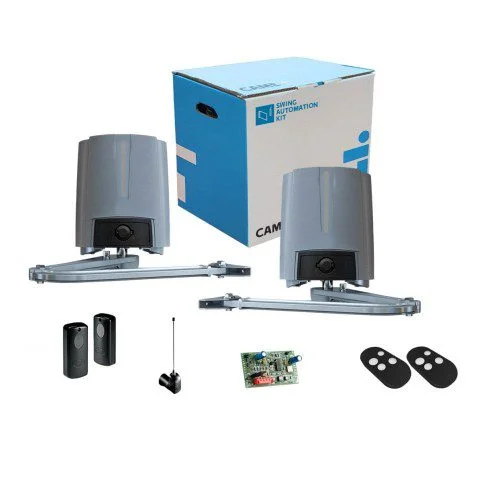

CAME FAST FA70230 Swing Gate Opener

The standard CAME FAST FA70230 has a C Max. of 200mm — the maximum perpendicular distance from the gate hinge pivot to the motor bracket mounting point on the gate pillar. For installations where the pillar geometry places the bracket further than 200mm from the hinge — common with thick stone or brick pillars typical in Abu Dhabi villa construction — CAME offers the optional extension accessory 801XC-0070, which increases the maximum C distance to 300mm. This is the only motor in the POWERgate Abu Dhabi swing gate range with a published optional C extension accessory. The 801XC-0070 effectively extends the motor arm reach, allowing the FAST FA70230 to be installed on pillar configurations that would otherwise require a different motor type. POWERgate Abu Dhabi can advise on whether this accessory is needed for your specific pillar layout.

Both the CAME FAST FA70230 and BFT IGEA BT are arm-type swing gate operators for similar-sized gates, but they differ significantly in technology. The FAST FA70230 uses a 230V/160W motor with a 30% duty cycle and IP54 protection, while the IGEA BT uses a 24V/40W motor with intensive-use duty cycle and IP44. The FAST FA70230 handles leaves up to 2.3m and 200 kg; the IGEA BT handles up to 2.5m and 250 kg. The FAST FA70230 uses a hinged transmission arm; the IGEA BT uses a true articulated two-section arm. The FAST FA70230’s IP54 rating provides better dust and moisture protection than the IGEA BT’s IP44 for Abu Dhabi outdoor exposure. For high-frequency or heavier gate use, the IGEA BT’s intensive-use rating is the advantage. For direct 230V installation with better IP rating, the FAST FA70230 is the stronger specification.

The CAME FAST FA70230 consumes 160W at 230V versus the AMICO A18230’s 80W — twice the power — but has a lower 30% duty cycle versus AMICO’s 50%. This reflects the FAST FA70230’s hinged arm transmission mechanism, which generates more heat per cycle than the AMICO’s direct gearmotor-to-leaf connection due to the additional friction and force transfer through the arm pivot points. The higher power draw at 160W combined with 30% duty means the motor requires more rest time between cycles to dissipate heat effectively. In practical terms for Abu Dhabi residential use, 30% duty equates to approximately 15 to 20 open/close cycles per day — adequate for most villa gates. The FAST FA70230’s advantage over the AMICO is not duty cycle but rather the hinged arm installation flexibility for pillar configurations where a direct linear rod cannot be positioned.

CAME specifies three compatible control panels for the FAST FA70230: 801QA-0110, 801QA-0120, and 801QA-0130. The 801QA-0110 is a CAME control board not listed for any other motor in the POWERgate Abu Dhabi swing gate range — it appears to be a lighter-specification panel suited to the FAST FA70230’s 30% residential duty cycle and 1.4A absorption. The 801QA-0120 and 801QA-0130 are also compatible with the AXO AX302304 (230V encoder version), indicating these are CAME’s more capable multi-use panels that work across the AXO and FAST product families. For a standard residential FAST FA70230 installation in Abu Dhabi, the 801QA-0110 is likely the cost-effective starting point. POWERgate Abu Dhabi can confirm current availability and correct panel selection for your installation requirements.

The CAME FAST FA70230 carries a 24-month manufacturer warranty from purchase. The most critical installation factor is the C Max. geometry: if the motor bracket exceeds 200mm from the hinge pivot without the optional 801XC-0070 extension, the arm operates outside its rated arc, causing stress on the hinge point and gearmotor output shaft that degrades rapidly. The 30% duty cycle must be observed — the 150°C thermal protection will engage if cycles are too frequent, but repeated thermal triggering indicates an installation or gate friction problem rather than a normal use pattern, and will cause premature motor wear. The motor’s IP54 rating (better than many arm-type motors) provides reliable outdoor protection in Abu Dhabi, but the hinged arm pivot and bracket fixings should be checked annually for corrosion or loosening. POWERgate Abu Dhabi handles all warranty claims locally — contact us on WhatsApp (+971 50 884 4933) or at sales@powergatead.com.
