Product Overview
NICE L9BAR Barrier is an electromechanical road barrier designed for wide access control openings from 7 to 9 meters. It is suitable for Abu Dhabi locations that require controlled vehicle entry with a long boom system, integrated control unit, and reliable safety inputs. The L9BAR uses a 24 VDC gearmotor with 230V power supply and supports modular boom configurations for large entrances. Its encoder movement control, BlueBus compatibility, and loop detector inputs make it a strong choice for parking entrances, facility gates, and controlled vehicle access points.
Key Features and Technical Specifications
- Brand: NICE
- Model: L9BAR
- Product type: Electromechanical road barrier system for road access control
- Clear opening: 7 to 9 m
- 9 m boom configuration: 4 m + 5 m modular bars with XBA9 expansion joint
- Gearmotor: 24 VDC with integrated control unit
- Power supply: 230V AC, 50/60Hz
- Control unit: Display and joystick programming
- Movement control: Encoder and electromechanical limit switches
- Obstacle detection: Motor draw monitoring during automation movement
- Manoeuvre time: Adjustable from 8 to 12 seconds
- Start peak torque: 400 Nm
- Maximum operating cycles/hour at nominal torque: 150
- Maximum power draw at peak: 160 W
- Maximum power at nominal torque: 50 W
- Protection rating: IP54
- Operating temperature: -20°C to +55°C
- BlueBus output: Maximum load of 10 BlueBus units
- Inputs for metal detectors: 2
- Radio connector: SM connector for SMXI and SMXIS receivers
- Emergency battery option: PS224 optional accessory
- Photovoltaic power option: SYKCE optional accessory
- Cabinet dimensions and weight: 500 × 299 × 1215 mm; 98 kg
- Standard L9BAR case: Steel case with protective cataphoresis treatment, painted orange
- Available variants: L9BARI stainless steel, L9BARWH white, L9BARGR1 grey
Use Cases
- Commercial parking entrances
- Industrial facility access points
- Warehouse vehicle gates
- Gated communities with wide entrances
- Security checkpoints
- Private facility vehicle control
- High-clearance access control lanes
- Long boom barrier installations in Abu Dhabi
Compatibility and Installation Notes
NICE L9BAR Barrier is compatible with NICE BlueBus safety devices, SMXI and SMXIS radio receivers, loop detector accessories, metal detector inputs, optional warning lights, traffic lights, boom lights, and backup power accessories. Installation should be handled by qualified automation technicians because the barrier requires correct foundation anchoring, spring balancing, electrical connection, boom configuration, safety input testing, and commissioning. For proper wiring, safety checks, and setup guidance, follow the official NICE M/L-BAR instruction manual.

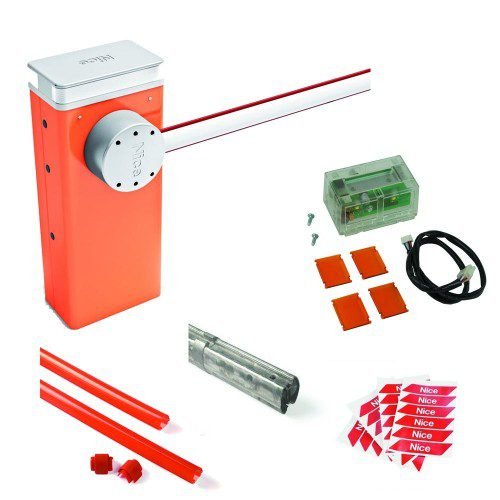

Packing Includes
- Boom gate with integrated control unit
- Boom cover and support
- 2 photocell boxes
- Fixed boom cap
- 2 connectors for rubber impact protectors
- 2 connectors without rubber impact protectors
- Keys for manually locking and unlocking the boom
- Key for the cover lock
- Metal smallware, including screws and washers
- Foundation plate
- 4 anchor bolts
- Aluminium connector 700 mm long, only present on L9BAR
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies automation products with local support, product guidance, and assistance for professional installation needs. Our team helps Abu Dhabi customers choose the correct barrier model, boom accessories, safety devices, and access control integration for reliable vehicle entry management.
Buy NICE L9BAR today from POWERgate abu dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.
