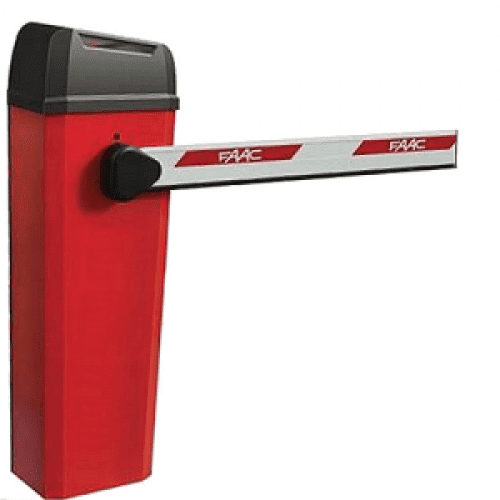

FAAC B614 4M Automatic Parking Gate Barrier

FAAC B614 4M automatic parking barrier with 24V brushed motor, integrated encoder, E614 control unit, IP55 protection, fast <2 s opening, supports rectangular and round arms up to 5 m.





AED 4,650

Product price:AED 4,650
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

FAAC B614 4M automatic parking barrier is a high-performance gate control system designed for efficient access management in Abu Dhabi. This Italian-made barrier features a 24V brushed motor, integrated encoder, and robust steel cabinet with galvanized and polyester powder coating, ensuring durability and reliability under continuous operation. With a fast opening time of less than 2 seconds for a 3-metre arm, FAAC B614 is ideal for residential, commercial, and industrial entrances. The kit supports both rectangular and round barrier arms up to 5 metres, combining electronic and mechanical deceleration for smooth and safe operation.

Key Features and Technical Specifications

  • Model: B614
  • Power supply: 220–240V ~ 50/60 Hz
  • Motor type: 24V brushed electric motor
  • Maximum power: 165 W
  • Maximum torque: 300 Nm
  • Housing material: Steel with pre-hot dip galvanization and polyester powder coating
  • Integrated incremental encoder
  • Deceleration: Electronic + mechanical
  • Supported beam types: Rectangular and round
  • Operating ambient temperature: -20 °C to +55 °C
  • Protection class: IP55 for electronic control unit, IP44 for other components
  • Barrier weight: 40 Kg
  • Dimensions (L × D × H): 360 × 250 × 1163 mm (installation base: 305 × 230 mm)
  • Maximum beam length: 5 m
  • Opening time: <2 s for 3 m arm at 80°
  • Use frequency: Continuous
  • Electronic control unit: E614

Use Cases

  • Residential gated communities
  • Villa parking entrances
  • Commercial parking lots
  • Office and industrial facility vehicle access
  • Hotel and mall parking management
  • Warehouse barrier systems
  • High-frequency vehicle access points

Compatibility and Installation Notes

The FAAC B614 4M barrier is compatible with both rectangular and round FAAC barrier arms up to 5 metres. Correct installation requires leveling the base, securing the barrier, and connecting the E614 electronic control unit following the FAAC installation guide. Professional installation is strongly recommended for optimal performance, safe operation, and proper configuration of motor, encoder, and deceleration functions. For more detailed installation and technical information, refer to the official FAAC B614 technical manual.

Packing Includes

  • FAAC B614 4M automatic parking barrier
  • E614 electronic control unit
  • Installation kit (mechanical fixing components)
  • Instruction manual

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi provides genuine FAAC automatic barriers with local support, installation guidance, and after-sales service for reliable operation. We assist customers in selecting and configuring the correct barrier for any parking or access control application.

Buy FAAC B614 4M today from POWERgate Abu Dhabi. Call/WhatsApp: +971508844933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “FAAC B614 4M Automatic Parking Gate Barrier”

Your email address will not be published. Required fields are marked *

The FAAC B614’s dual deceleration applies two independent braking mechanisms: electronic deceleration via the E614 control unit’s motor speed reduction command, and mechanical deceleration via a physical cam or spring mechanism in the drive train. Electronic deceleration slows the arm based on encoder position; mechanical deceleration provides a secondary physical brake if electronic control fails. This redundant approach reduces end-stop impact and gives the B614 smoother arm movement across millions of cycles at Abu Dhabi intensive-use sites.

The FAAC B614 assigns different IP ratings to its components: IP55 for the E614 electronic control unit (complete dust protection and water jet resistance) and IP44 for other mechanical components (partial dust protection and water splash resistance). The control unit — the most sensitive part — gets the highest protection. For Abu Dhabi outdoor installations exposed to dust and occasional rain, IP55 on the electronics significantly reduces the risk of ingress-related control board failure.

The FAAC B614’s sub-2-second opening for a 3m arm is achieved through a 24V DC brushed motor producing 300 Nm at 165W, combined with a high-efficiency gearbox and encoder-controlled speed management. The E614 control unit applies maximum motor output during the initial acceleration phase and uses electronic deceleration only near the end stop, keeping most of the travel at full speed. This makes the B614 suitable for continuous-duty Abu Dhabi high-throughput parking lanes.

The FAAC B614 housing uses pre-hot dip galvanization — a zinc coating applied to the steel before fabrication — followed by polyester powder coating. Hot dip galvanizing creates a metallurgically bonded zinc layer that protects steel from corrosion even if the surface coat is scratched. The polyester powder coat adds colour, UV resistance, and a second barrier. This two-layer system provides superior long-term corrosion resistance for Abu Dhabi’s outdoor humid and coastal environments versus single-coat finishes.

The FAAC B614 at AED 4,650 vs the CAME G4000 at AED 4,350: B614 offers sub-2s opening, IP55 E614 control unit, dual electronic+mechanical deceleration, pre-hot dip galvanization, continuous use, and 5m maximum arm. G4000 offers 200Nm, ZL37 board, custom key release, and RAL 2004 orange finish. B614 is faster and better protected; G4000 is AED 300 less. Both are Italian-made intensive-use barriers for 4m passages. Contact POWERgate Abu Dhabi on WhatsApp +971 50 884 4933.
