Product Overview

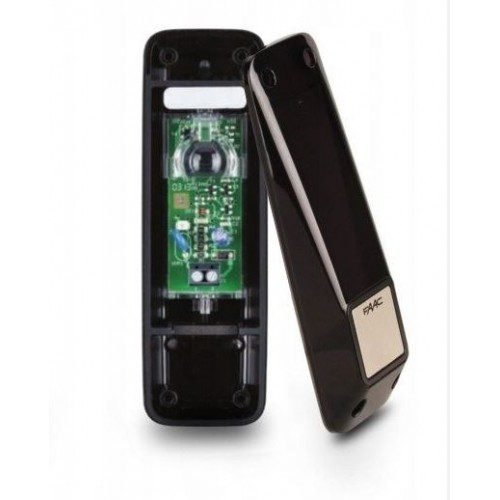

FAAC XP 20 D photocells are adjustable wall-mounted safety sensors for automatic gate and access automation systems in Abu Dhabi. They use a transmitter and receiver with modulated infrared beams to detect obstacles across the gate movement area. When the infrared beam is interrupted, the receiver changes status and signals the automation control system. With a 20 m nominal range, IP54 protection, and -90° to +90° horizontal adjustment, these photocells are suitable for reliable gate safety detection in residential, commercial, and industrial entrances where compatible FAAC control systems are installed.
Key Features and Technical Specifications
- Brand: FAAC
- Product model: XP 20 D
- Item code: 785102
- Product type: Adjustable wall photocell
- Power supply voltage: 24V DC / 24V AC
- Photocell maximum distance: 20 m
- Installation type: Wall-mounted
- Protection class: IP54
- Auto-alignment angle: ±7° at 20 m / ±13.5° at 5 m
- Horizontal adjustment angle: -90° to +90°
- Dimensions: 41.5 × 42.5 × 130 mm
- Absorbed current: Rx 30 mA + Tx 20 mA
- Output type: N.C.
- Contact rating: 60 VA / 24 W
- Operating ambient temperature: -20°C to +55°C
- Beam type: Modulated infrared transmitter and receiver
Use Cases
- Residential automatic gates
- Villa gate safety systems
- Commercial building entrances
- Parking entrance automation
- Warehouse access gates
- Industrial gate automation
- Pedestrian and vehicle access control systems
- Obstacle detection for swing and sliding gate movement areas
Compatibility and Installation Notes
FAAC XP 20 D should be installed with compatible FAAC automation control systems that support 24V photocell safety input and N.C. output connection. The transmitter and receiver must be aligned correctly, mounted securely, and positioned to protect the gate movement zone without false triggering. Professional installation is recommended because incorrect wiring, poor alignment, or unsuitable placement can affect gate safety and automation reliability. For official product and technical details, check the FAAC adjustable wall photocell information.
Packing Includes
- FAAC XP 20 D transmitter photocell: 1 piece
- FAAC XP 20 D receiver photocell: 1 piece
- Fixing accessories: Not specified by manufacturer
- Installation manual: Not specified by manufacturer
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies FAAC gate automation safety accessories with local support for homeowners, installers, maintenance teams, and commercial buyers. Abu Dhabi customers can confirm compatibility, installation suitability, and product requirements before ordering.
Buy FAAC XP 20 D today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
