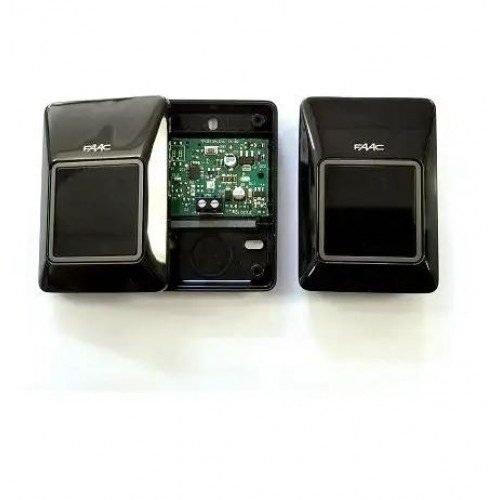

FAAC XP 30 wall-mounted photocell pair shown with one cover removed, revealing the circuit board for automatic gate safety.
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

FAAC XP 30 Wall Photocell Sensors

FAAC XP 30 wall photocell sensors with 30m range, 24V AC/DC supply, IP54 protection, automatic alignment and relay N.C./N.O. output for gate safety automation.

AED 240

Product price:AED 240
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

FAAC XP 30 Photocell Sensors are wall-mounted safety photocells for automatic gate and access automation systems in Abu Dhabi. The official FAAC XP 30 model is designed for gate safety detection with a maximum photocell distance of 30 metres, automatic alignment, and compact wall or column installation. It operates on 24V DC or 24V AC power and uses relay N.C./N.O. output contacts. With IP54 protection and a slim 55.4 x 21.5 x 78.4 mm body, it is suitable for modern residential, commercial, and parking entrance automation where reliable obstacle detection is required.

Key Features and Technical Specifications

  • Brand: FAAC
  • Model: XP 30
  • Product type: Wall photocell sensors
  • Item code: 785105
  • Power supply voltage: 24V DC / 24V AC
  • Maximum photocell distance: 30 m
  • Installation type: Wall or column
  • Protection class: IP54
  • Alignment: Automatic
  • Auto-alignment angle: ±7° at 20 m / ±13.5° at 5 m
  • Dimensions: 55.4 x 21.5 x 78.4 mm
  • Absorbed current: Rx 30 mA + Tx 20 mA
  • Output type: Relay N.C./N.O.
  • Contact rating: 60 VA / 24 W
  • Operating ambient temperature: -20°C to +55°C

Use Cases

  • Residential automatic gate safety systems
  • Villa swing gate automation
  • Sliding gate obstacle detection
  • Commercial gate entrances
  • Parking barrier safety systems
  • Warehouse access automation
  • Industrial entrance automation where compatible photocells are required
  • Replacement of old wall-mounted gate photocells

Compatibility and Installation Notes

FAAC XP 30 is suitable for compatible automation control boards that support 24V AC/DC photocell safety inputs and relay N.C./N.O. contact wiring. The transmitter and receiver must be positioned correctly across the gate opening to ensure accurate beam detection and safe gate movement. Professional installation is recommended because wiring polarity, relay contact selection, alignment, safety testing, and controller programming must be handled correctly. For product data and technical checking, review the official FAAC XP 30 product page before installation.

Packing Includes

  • FAAC XP 30 transmitter photocell — Quantity: 1
  • FAAC XP 30 receiver photocell — Quantity: 1

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies genuine automation safety products with local support for customers who need correct compatibility guidance, reliable spare parts, and practical help for gate automation projects. You get Abu Dhabi-focused assistance before and after purchase.

Buy FAAC XP 30 Sensors today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “FAAC XP 30 Wall Photocell Sensors”

Your email address will not be published. Required fields are marked *

The FAAC XP 30 uses automatic alignment with an auto-alignment angle of ±7° at 20 m and ±13.5° at 5 m, so slight misalignment between the two units is tolerated. It still needs firm posts, because a shifted bracket in Abu Dhabi wind or after a vehicle knock can push the beam outside that tolerance.

The FAAC XP 30 has relay N.C./N.O. output contacts rated 60 VA / 24 W and runs on 24V DC or 24V AC. Check that your board offers a 24V photocell supply and the contact logic you need, such as N.C., and use POWERgate Abu Dhabi to confirm the match from your board model.

The FAAC XP 30 draws Rx 30 mA plus Tx 20 mA, so each pair needs about 50 mA from your board’s 24V accessory output. Add that to the other accessories, such as flashing lights, and stay within the board’s rating, particularly when you fit a second pair for a wide Abu Dhabi commercial entrance.

The FAAC XP 30 measures just 55.4 × 21.5 × 78.4mm and mounts on a wall or column, with IP54 protection and a -20°C to +55°C range. That slim body fits narrow villa pillars, but in Abu Dhabi shade the lenses from low sun and clean away dust film regularly.

At AED 240, the FAAC XP 30 (item code 785105) supplies one transmitter and one receiver with a 30 m maximum distance. The FAAC XP 20 D adjustable photocells cost the same, so compare range and adjustment before choosing. Send your gate details to POWERgate Abu Dhabi on WhatsApp +971 50 884 4933.
