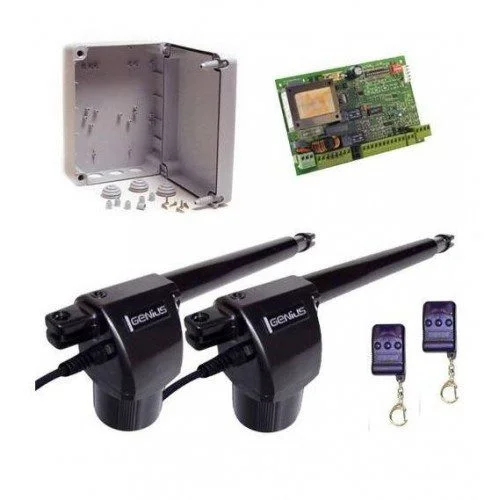

Genius EURO BAT400 Swing Gate Motor Kit

Product Overview

Genius EURO BAT400 is a 230Vac linear screw swing gate motor kit designed for automated swing gates with leaves up to 4m. It uses an electro-mechanical worm screw operator to move swing gate leaves and is suitable for controlled vehicle access in Abu Dhabi villas, homes, and light commercial entrances. The EURO BAT operator is designed as a sturdy automation solution and supports right-hand or left-hand opening installations. This kit includes the main operator, BRAIN592 control board, receiver, transmitters, photocells, and push button accessories for a complete swing gate automation setup.

Key Features and Technical Specifications

• Brand: Genius Automation
• Product model: EURO BAT400
• Product type: Electro-mechanical linear screw swing gate operator
• Automation type: Swing gate automation
• Power supply: 230V, 50Hz
• Operator system: Worm screw drive
• Maximum gate leaf length: Up to 4m with 400mm stroke operator
• Absorbed power: 280W
• Capacitor: 8µF / 400V
• Maximum thrust/traction force: 350 daN
• Rod stroke: 300mm / 400mm
• Rod speed: 1.6cm/sec
• Operating temperature range: -20°C to +55°C
• Operator weight: 6.5kg
• Housing protection: IP44
• Duty cycle: 30 cycles/hour
• Opening versions: Right-hand and left-hand versions available
• Control board: BRAIN592
• Receiver: Single channel 868 MHz receiver
• Transmitters: KILO 2 transmitters
• Safety photocells: VEGA photocells
• Maximum gate weight: Not specified by manufacturer
• Battery backup: Not specified by manufacturer

Use Cases

• Residential swing gates
• Villa entrance gates
• Private parking entrances
• Light commercial gates
• Small warehouse access gates
• Controlled vehicle access points
• Abu Dhabi property gate automation

Compatibility and Installation Notes

Genius EURO BAT400 is suitable for swing gate leaves up to 4m when the gate structure is strong, rigid, correctly hinged, and able to move smoothly without stiff points. The manufacturer’s installation guidance states that mechanical travel limit stops should be present and that power cables must be kept separate from low-voltage accessory cables such as photocells, receiver, and push-button wiring. For safety, installation must be carried out by qualified technicians, with correct bracket positioning, electrical isolation, photocell alignment, and full testing before use. You can review the Euro Bat installation manual for technical installation guidance and safety notes.

Packing Includes

• 1 x EURO-BAT400 L/H electro-mechanical operator
• 1 x BRAIN592 control board
• 1 x Control board housing
• 1 x Single channel 868 MHz receiver
• 2 x KILO 2 transmitters
• 1 x VEGA photocells
• 1 x Push button
