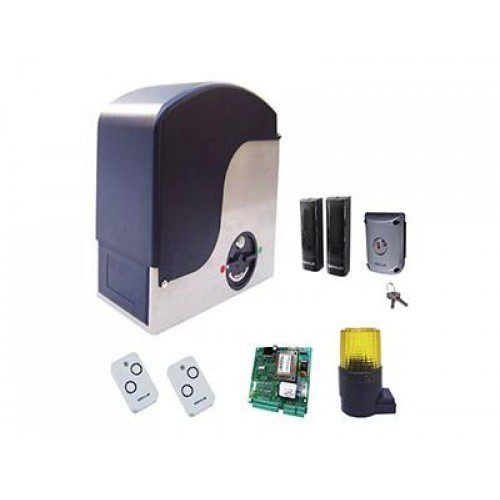

Genius Falcon M14 C sliding gate motor kit with remotes, sensors and light
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

GENIUS Falcon M14 C Sliding Gate Motor

230V industrial sliding gate operator for gates up to 1400kg, with Sprint 382 board, magnetic limit switches, Z16 module 4 pinion, IP44 protection and manual key release.



AED 2,575

Product price:AED 2,575
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

GENIUS Falcon M14 C sliding gate motor is a heavy-duty electromechanical gear motor for Abu Dhabi sliding gate automation projects. The rough data mentioned 2000kg, but official GENIUS data confirms Falcon M14 C is rated for gates up to 1400kg. For 2000kg gates, the correct model is Falcon M20 C. The Falcon M14 C features a 230V motor, magnetic limit switches, Sprint 382 integrated control board and non-reversible industrial design. It is suitable for demanding gate entrances where strong construction, quiet movement and professional installation are required.

Key Features and Technical Specifications

  • Brand: GENIUS
  • Product model: Falcon M14 C
  • Product code: 6110002
  • Product type: Electromechanical sliding gate motor
  • Version: Non-reversible with integrated Sprint 382 board
  • Power supply: 230V
  • Electric motor voltage: 230V
  • Maximum gate weight: 1400kg
  • Nominal power: 650W
  • Current: 2.80A
  • Thermal protection: 140°C
  • Capacitor: 16µF
  • Maximum torque: 35Nm
  • Thrust on pinion: 110daN
  • Pinion type: Z16 module 4
  • Angular speed: 10m/min
  • Frequency of use at 20°C: S3 – 40%
  • Operating temperature: -20°C to +55°C
  • Protection rating: IP44
  • Operator weight: 14kg
  • Magnetic limit switches
  • Aluminium gearmotor body painted with polyester powder
  • ABS protective housing
  • User-friendly release system with customised key
  • Optional encoder installation for obstacle detection
  • Note: 2000kg rating applies to Falcon M20 C, not Falcon M14 C. (van Klompenburg Hekwerken)

Use Cases

  • Industrial sliding gates up to 1400kg
  • Commercial property entrances
  • Warehouse sliding gates
  • Factory and service-yard access gates
  • Heavy residential compound gates
  • Parking entrance sliding gates
  • Controlled vehicle access points in Abu Dhabi

Compatibility and Installation Notes

GENIUS Falcon M14 C is compatible with sliding gates up to 1400kg when the gate is correctly balanced, aligned and fitted with a suitable rack, foundation plate, end stops and safety devices. Professional installation is recommended because wiring, magnetic limit switch adjustment, force setting, photocell positioning and control-board programming must be completed correctly for safe and reliable operation. For model dimensions, wiring and installation guidance, review the official GENIUS Falcon technical brochure.

Packing Includes

  • 1 x GENIUS Falcon M14 C electromechanical operator with integrated Sprint control board
  • 1 x Foundation plate
  • 1 x Single-channel 868MHz receiver
  • 2 x AMIGO 2 transmitters
  • 1 x VISION photocell
  • 1 x 6m rack
  • 1 x Installation accessories set
  • 1 x Installation instructions

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable sliding gate automation products with local support, product guidance and installation-focused assistance. We help customers choose the correct gate motor model based on actual gate weight, site use and safety requirements. Buy GENIUS Falcon M14 C today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “GENIUS Falcon M14 C Sliding Gate Motor”

Your email address will not be published. Required fields are marked *

The GENIUS Falcon M14 C and the Genius Blizzard 500 are both GENIUS FAAC Group sliding gate motors. The Falcon M14 C is the industrial range: 1400 kg at 650W, 110 daN thrust, Sprint 382 board, non-reversible, 40% duty, 6m rack, and polyester powder-coated aluminium body. The Blizzard 500 is the residential range: 500 kg at 390N, magnetic encoder, 30% duty, and KILO 868 MHz remotes. The Falcon M14 C suits warehouse entrances, factory gates, and heavy compound gates; the Blizzard 500 suits standard Abu Dhabi villas.

The GENIUS Falcon M14 C is the only motor kit in the POWERgate Abu Dhabi range to include 6 metres of rack as standard. All other complete kits include 4 metres. A 1400 kg sliding gate typically requires a longer track than residential gates to accommodate the gate leaf plus its travel and overrun space. The 6m rack provision reduces the additional rack that must be sourced separately for a standard industrial installation. M4 steel rack should be considered for the remaining track length where the gate structure demands more than 6m coverage.

The GENIUS Falcon M14 C does not include an encoder as standard — it is listed as an optional installation. Without the encoder, obstacle detection relies on the Sprint 382 board’s amperometric (current-based) monitoring only. An encoder adds position-specific sensitivity and allows the board to distinguish between normal startup current and mid-travel obstacle resistance, providing more reliable anti-crushing response. For a 1400 kg industrial gate, the encoder option is strongly recommended before commissioning. POWERgate Abu Dhabi can confirm encoder availability as a separate accessory.

No — the GENIUS Falcon M14 C is officially rated for gates up to 1400 kg. The reference to 2000 kg in some listings is a misattribution: the 2000 kg rating applies to the GENIUS Falcon M20 C, a separate and higher-capacity model. GENIUS official product data (code 6110002) confirms 1400 kg as the Falcon M14 C’s maximum gate weight. Specifying the M14 C for a 2000 kg gate would exceed its rated capacity. For gates between 1400 kg and 2000 kg, the Falcon M20 C should be specified. POWERgate Abu Dhabi can confirm M20 C availability.

The GENIUS Falcon M14 C carries a 24-month GENIUS warranty. Kit includes: 1 x Falcon M14 C operator with Sprint 382 board, 1 x foundation plate, 1 x 868 MHz single-channel receiver, 2 x AMIGO 2 transmitters, 1 x VISION photocell, 1 x 6m rack, and installation accessories set. The encoder for obstacle detection is optional and must be ordered separately. Flashing light, safety edges, push button, and additional remotes must be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
