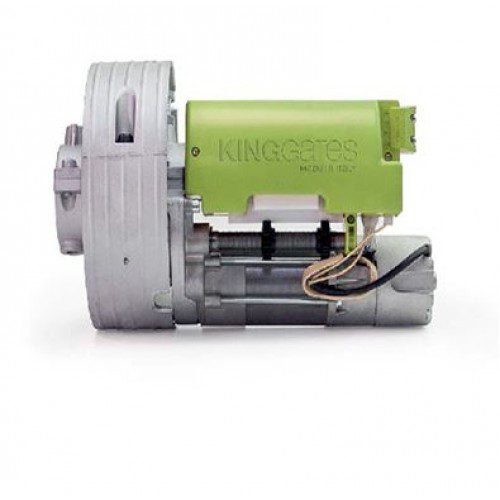

KINGgates RING 380-PLUS | Rolling Shutter Motor

Rolling shutter motors are torque-driven rather than thrust-driven because they rotate a shaft to wind a heavy curtain, not push a panel along a track. The KINGgates RING 380-PLUS’s 430 Nm torque at 1330W reflects the rotational force needed to start winding a 380 kg balanced shutter curtain from a standstill. Heavy commercial and industrial Abu Dhabi shopfront or warehouse shutters — steel or aluminium with large surface areas — require this level of torque to overcome starting inertia reliably in daily operation.

The KINGgates RING 380-PLUS’s integrated electro-brake applies a braking force to the motor shaft when power is removed — holding the shutter curtain in position and preventing it from unwinding under gravity. Without an electro-brake, a heavy 380 kg balanced shutter could drift down slowly when the motor is de-energised, especially if the spring balance degrades over time. The electro-brake ensures the shutter holds its open position precisely, avoiding the curtain sagging or sliding during building occupancy in Abu Dhabi commercial properties.

Rolling shutter shafts are manufactured in standard diameters; the most common in Abu Dhabi commercial installations are 76mm and 101mm. The KINGgates RING 380-PLUS is designed for 101mm shaft direct fit, with a 76mm shaft adapter included for compatibility with smaller shafts. The shaft diameter is determined by the shutter manufacturer during original installation. Buyers should measure the existing shaft diameter before ordering, or confirm the shaft size with POWERgate Abu Dhabi to ensure the correct adapter is supplied.

The KINGgates RING 380-PLUS’s 8 rpm output speed means the shutter shaft completes 8 full rotations per minute — the curtain’s rise or fall speed depends on the shaft diameter and curtain geometry. The 240mm crown is the drive coupling diameter at the shaft interface. KINGgates confirms a 110V / 60Hz version is available for sites with 110V supply — relevant for Abu Dhabi properties with imported equipment on 110V circuits. Standard packing: RING380PLUS motor, 76mm adapter, built-in limit switches, and integrated electro-brake. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
