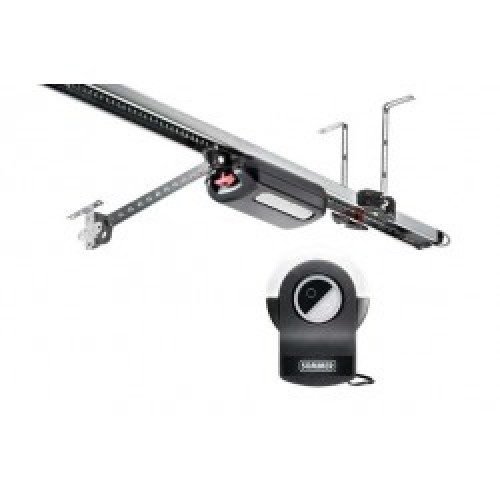

SOMMER S 9110 PRO+ S3 Garage Door Opener

SOMMER S 9110 PRO+ S3 garage door opener is a powerful 1,100N operator with separate control for Abu Dhabi garage door automation. It is designed for sectional doors, one-piece doors, up-and-over doors, hinged double doors, and side-opening sectional doors within the official size limits. The system uses a motor carriage with integrated SOMloq2 868.95 MHz radio receiver, 40 radio memory positions, LED lighting, and a pre-programmed Pearl Vibe handheld transmitter. Its 200 kg maximum door weight capacity and 180 mm/s running speed make it suitable for strong, smooth, and reliable garage door movement.

Key Features and Technical Specifications

• Brand: SOMMER
• Model: S 9110 PRO+ S3
• Article number: S15048-00001
• Product type: Garage door operator with separate control
• Maximum pull and pushing force: 1,100N
• Maximum sectional door width / height: 8,000 mm / 2,500 mm
• Maximum one-piece door width / height: 8,000 mm / 2,750 mm
• Maximum up-and-over door width / height: 8,000 mm / 2,050 mm
• Maximum hinged double door width / height: 2,800 mm / 3,000 mm
• Maximum side-opening sectional door / side-opening door width / height: 6,850 mm / 3,000 mm
• Standard travel length: 2,750 mm
• Maximum extended travel length: 7,100 mm with 4 extensions of 1,096 mm
• Maximum door weight: 200 kg
• Maximum running speed: 180 mm/s
• Standby power consumption: 0.5W
• Motor duty cycle: ED 40% S3
• Radio system: FM 868.95 MHz SOMloq2
• Radio memory positions: 40
• Maximum recommended number of spaces: 50
• Motor carriage: Integrated radio receiver
• Control unit: Separate housing with two integrated interior push-buttons
• Lighting: LED lighting in the motor carriage
• Hand transmitter: Pearl Vibe 4-command handheld transmitter with vibration feedback

Use Cases

• Residential garage doors
• Villa garage door automation
• Sectional garage doors
• One-piece garage doors
• Up-and-over garage doors
• Hinged double garage doors
• Side-opening sectional doors
• Private parking entrances
• Commercial garage access where compatible with door limits
• Multi-user garage doors within recommended usage capacity

Compatibility and Installation Notes

SOMMER S 9110 PRO+ S3 garage door opener is compatible with several garage door types, including sectional, one-piece, up-and-over, hinged double, and side-opening sectional doors, provided the door stays within the manufacturer’s approved size, travel, and 200 kg weight limits. Professional installation is recommended because the rail, motor carriage, control housing, push arm, header attachment, travel limits, and safety accessories must be fitted and programmed correctly. For official installation guidance and technical details, check the SOMMER product information page.

Packing Includes

• 1 x 3-piece rail
• 1 x Motor carriage
• 1 x Control unit housing
• 1 x Ceiling suspension unit
• 1 x Attachment to header
• 1 x Push arm
• 1 x Door bracket
• 1 x Mounting material
• 1 x Pre-programmed Pearl Vibe 4-command handheld transmitter

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies SOMMER garage door automation with local product support, technical guidance, and installation assistance. Buyers get help selecting the correct opener for their door type, weight, and usage instead of depending on copied product listings with wrong or incomplete specifications.

Buy SOMMER S 9110 PRO+ S3 today from POWERgate abu dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
