Product Overview

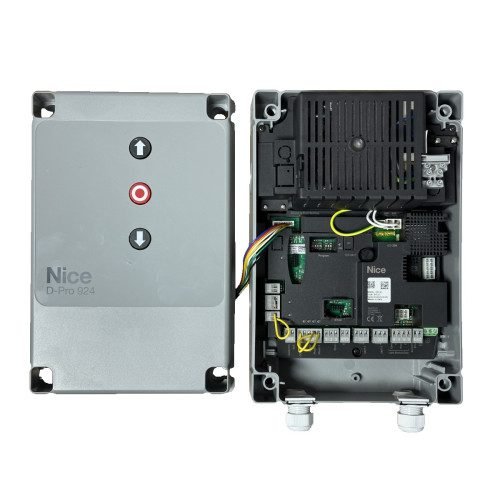

NICE DPRO924 control unit is a control board for automating balanced sectional doors in Abu Dhabi using compatible 24V DC motors. It is designed to control motors with encoder, Hall-effect position control, or electromechanical limit switches, making it suitable for professional sectional door automation setups. The unit supports safety edge input, photocell inputs, receiver connection, Oview programming through IBT4N, standby mode, programmable outputs, and backup battery connection with PS224. This control unit is best used for correct replacement, maintenance, or system repair where NICE DPRO924 compatibility is confirmed first. A similar NICE control unit is the NICE DPRO500.
Key Features and Technical Specifications
- Brand: NICE
- Product model: DPRO924
- Product type: Control unit for sectional balanced doors
- Intended use: Automation of balanced sectional doors
- Motor compatibility: 24V DC motor with encoder, Hall-effect position control, or electromechanical limit switches
- Main power supply: 230V AC, 50/60Hz
- DPRO924/V1 supply version: 120V AC, 50/60Hz
- Maximum power absorbed: 500W
- Insulation class: Class 1; safety grounding system required
- Emergency supply: With optional PS224 accessory
- Service output: 24V, -30/+50%, 200mA
- Phototest output: 24V, maximum current 200mA
- OUT1 output: For one ELDC flasher, programmable with Oview
- OUT2 output: Clean contact relay, programmable with Oview
- OUT3 output: Clean contact relay, programmable with Oview
- STOP input: Supports 8.2kΩ resistive sensitive edge or OSE optical edge
- ALT input: For normally closed safety contacts
- SbS input: For normally open contacts, programmable with Oview
- Open input: For normally open contacts, programmable with Oview
- Close input: For normally open contacts, programmable with Oview
- Photo input: For normally closed contacts
- Photo2 input: For normally closed contacts
- Radio connection: SM connector for SMXI, OXI, OXI New Generation, and OXIBD receivers
- Programming connection: IBT4N accessory for Oview or IT4WiFi connection
- Operating temperature: -20°C to +55°C
- Protection rating: IP55 when the enclosure is undamaged
- Dimensions: 310 × 210 × 125mm
- Weight: About 4kg
- Board fuses: F2 2A type T and F1 20A auto type
- Programming: DIP-switch and Oview-supported programming
- Speed adjustment: Opening, slowdown, closing, and closing slowdown speed adjustment supported
Use Cases
- Balanced sectional door automation
- Residential sectional garage doors
- Commercial sectional doors
- Industrial sectional door systems
- Garage door control unit replacement
- NICE sectional door automation repair
- Access automation maintenance projects
- Systems using photocells, safety edge, flasher, receiver, and Oview programming
Compatibility and Installation Notes
The NICE DPRO924 control unit should only be installed with compatible balanced sectional door motors and the correct NICE accessories, including suitable receivers, photocells, safety edges, flashers, and optional PS224 backup battery where required. Compatibility with SPIN BUS or SPYKIT is not confirmed from the verified DPRO924 installation data, so those claims should not be used without checking the exact operator manual. Professional installation is necessary because mains wiring, safety grounding, receiver setup, photocell learning, and force/speed settings directly affect safe door movement. For technical setup guidance, use the official NICE DPRO924 instruction manual download.
Packing Includes
- 1 × NICE DPRO924 control unit
