NICE HOPPBDKCE Swing Gate Opener Kit

Product Overview

NICE HOPPBDKCE Swing Gate Opener is a 24V articulated-arm swing gate automation kit for Abu Dhabi homes, villas, and private entrances. It is designed for swing gates with leaves up to 2.4 m, including installations with large posts and lightweight gate structures, subject to correct site measurements. The HOPP system uses HO7124 and HO7224 electromechanical gearmotors with external mounting, articulated arms, BlueBUS compatibility, and programmable control functions for smooth, practical gate movement.

Key Features and Technical Specifications

• Product code: HOPPBDKCE.
• Motor models: HO7124 with incorporated control unit and OXI receiver; HO7224 without control unit.
• Product type: Electromechanical gearmotor for automatic gate and door systems with direct-current motor, epicyclic gear reducer, and mechanical unlocking mechanism.
• Motor system: 24V DC articulated-arm swing gate opener.
• Mounting type: Surface mounted / external assembly.
• Suitable gate leaf length: Up to 2.4 m.
• Application limit: Up to 250 kg for leaves up to 1.5 m; up to 160 kg for leaves up to 2.4 m.
• Peak torque: 250 Nm.
• Nominal torque: 100 Nm.
• Nominal torque speed: 0.13 rad/s, 1.2 rpm.
• No-load speed: 0.17 rad/s, 1.6 rpm.
• Maximum operating cycles: 35 cycles/hour at nominal torque.
• Maximum continuous operating time: 10 minutes at nominal torque.
• Protection rating: IP54 with container intact.
• Operating temperature: -20°C to +55°C.
• Dimensions: 180 x 252 x h290 mm.
• Weight: HO7124 9 kg; HO7224 6.5 kg.
• Programmable functions: 8 ON/OFF functions and 8 adjustable functions.
• Self-learning functions: BlueBUS device learning, STOP input learning, gate path learning, slowdown point calculation, partial opening point calculation, and one/two motor learning.
• Automatic closing function: Available through Level 1 programming.
• Manual release: Mechanical unlocking device for manual gate movement during power failure, malfunction, or installation.

Use Cases

• Residential swing gates.
• Villa entrance gates.
• Private property access gates.
• Lightweight swing gate structures.
• Swing gates with large posts or offset hinge geometry.
• Medium-duty entrance automation.
• Parking entrance swing gates where articulated-arm installation is suitable.

Compatibility and Installation Notes

The NICE HOPPBDKCE Swing Gate Opener is compatible with swing gates up to 2.4 m per leaf when the gate structure, weight, hinge condition, pillar depth, and opening geometry match the manufacturer’s operating limits. Nice notes that the distance between the post face where the motor is fixed and the gate hinge axis must be a maximum of 25 cm. Professional installation is strongly recommended because the installer must verify gate balance, mechanical stops, electrical earthing, BlueBUS photocell wiring, programming, force settings, and final safety testing. For technical reference, see the official Nice HOPP installation manual. (Nice)

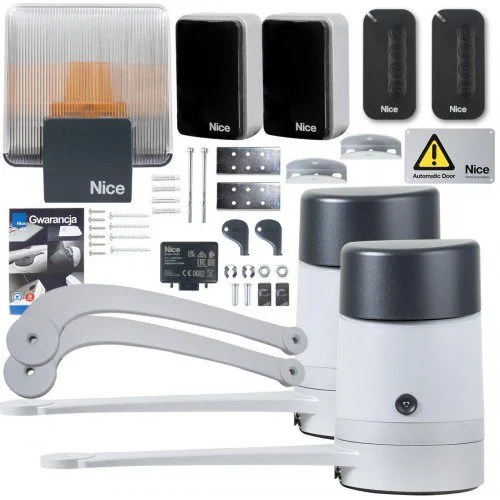

Packing Includes

• 1 x NICE HO7124 electromechanical gearmotor with incorporated control unit.
• 1 x NICE HO7224 electromechanical gearmotor without control unit.
• 1 x OXIBD plug-in bidirectional radio receiver.
• 2 x NICE radio transmitters, exact supplied model not specified by manufacturer in available official product data.
• 1 x Pair of EPMB photocells for outdoor use with Nice BlueBUS connection.
• 1 x ELDC LED flashing light.
• Mounting arms and fixing brackets supplied with the gearmotors.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi provides local automation product supply, technical guidance, and support for customers choosing the right swing gate opener for Abu Dhabi properties. We help buyers select suitable gate automation based on gate size, post layout, usage level, safety accessories, and installation requirements.

Buy NICE HOPPBDKCE today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
