Product Overview

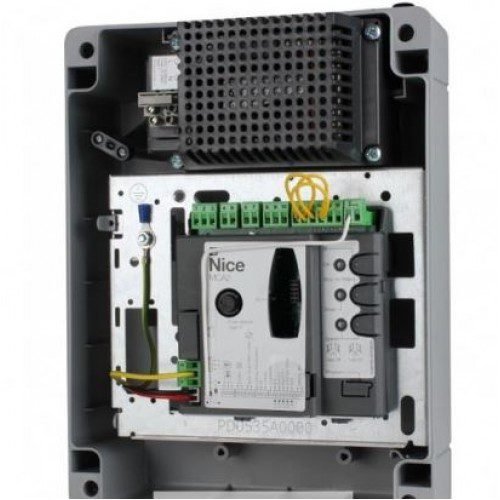

Nice MC424L control unit is an electronic controller for 24V swing gate automation systems in Abu Dhabi. It is designed for compatible Nice WINGO, TOO, and SFAB electromechanical actuators, with automatic work-time memorisation, obstacle detection during normal gate movement, and built-in radio-control management. The unit supports one or two 24V gate motors, PS124 backup battery connection, Solemyo solar kit compatibility, and SM-type receiver installation. Its IP54 enclosure, service outputs, warning light output, electric lock output, and safety input support make it a practical replacement board for residential and light commercial swing gate automation.
Key Features and Technical Specifications
- Brand: Nice
- Product model: MC424L
- Product range: Moonclever
- Product type: Swing gate control unit
- Application: Electronic control unit for swing gate automation
- Compatible actuator families: Nice WINGO, TOO, and SFAB 24V electromechanical actuators
- Compatible actuator models: WG2024, WG3524, WG4024, WG5024, TOO3024, TOO4524, and XME2024
- Motor support: 1 or 2 motors
- Mains power supply: 230V AC ±10%, 50–60Hz
- Maximum power input: 170W
- Maximum motor current: 3A
- Services power output: 24V DC, maximum 200mA
- Phototest output: 24V DC, maximum 100mA
- Warning light output: 24V DC, maximum 25W
- Electric lock output: 12V AC, 15VA or 24V DC lamp output, maximum 5W
- ALT STOP input: NC contacts or 8.2 kΩ fixed resistor ±25%
- Radio receiver: SM-type connector for SMXI, SMXIS, and OXI receivers
- Backup power: Configured for PS124 backup batteries
- Solar compatibility: Configured for Solemyo solar power kit
- Programming support: Pre-set functions and programmable parameters
- Safety function: Obstacle detection during normal gate movement
- Work time: Measured automatically
- Pause time: Settable
- Leaf opening delay: Settable
- Leaf closing delay: Measured automatically
- Operating temperature: -20°C to +55°C
- Protection rating: IP54 with container intact
- Dimensions: 310 x 232 x 122 mm
- Weight: 4.1 kg
Use Cases
- Residential swing gate automation
- Villa swing gate control systems
- Compound gate automation
- Light commercial swing gates
- NICE WINGO motor control replacement
- NICE TOO motor control replacement
- NICE SFAB motor control replacement
- Gate automation maintenance and upgrades
- 24V swing gate PCB replacement in Abu Dhabi
Compatibility and Installation Notes
The Nice MC424L control unit must be used only with supported Nice 24V swing gate actuators, including WINGO, TOO, and SFAB models listed in the official instructions. Installation should be handled by a qualified gate automation technician because mains wiring, motor selection, safety inputs, photocell setup, receiver installation, backup battery connection, travel learning, and obstacle detection must be tested before operation. For official wiring and commissioning guidance, refer to the Nice MC424L installation instructions.
Packing Includes
- 1 x Nice Moonclever MC424L control unit
