Product Overview

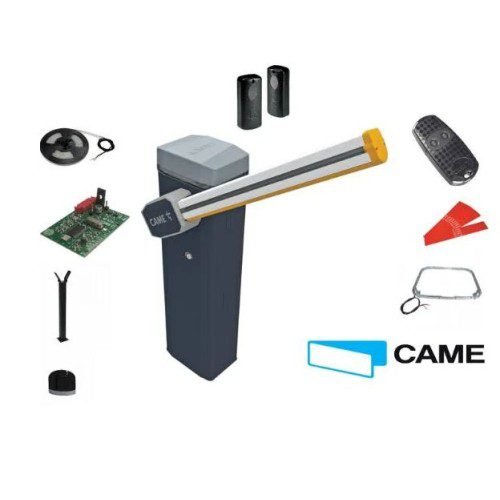

CAME Gard GT4 Barrier is a heavy-duty automatic road barrier for Abu Dhabi entrances requiring fast, reliable vehicle access control. The official CAME model 803BB-0160 / GGT40AGS is designed with a 24V DC irreversible gearmotor with encoder, galvanized and painted steel cabinet, and included balancing spring. It supports a maximum net clearance width of 5 metres and is suitable for intensive operation up to 350 cycles per hour. With adjustable 2–6 second movement time and IP54 protection, it is ideal for high-traffic parking entrances, gated properties, and commercial access control systems.
Key Features and Technical Specifications
- Brand: CAME
- Product series: GARD GT4
- Model: GGT40AGS
- Product code: 803BB-0160
- Product type: Automatic road gate barrier
- Maximum net clearance width: 5 m
- Gearmotor: 24V DC irreversible gearmotor with encoder
- Cabinet: Galvanized and painted steel cabinet with provision for accessories
- Balancing spring: Included
- Power supply: 230V AC, 50/60 Hz
- Motor power supply: 24V DC
- Power: 240 W
- Manoeuvring time at 90°: 2–6 seconds
- Cycles per hour: 350
- Operating temperature: -20°C to +55°C
- Protection rating: IP54
- Torque: 300 Nm
- Reduction ratio: 202
- Weight: 56 kg
- CAME Connect: Supported
- Encoder: Supported
- CXN BUS: Supported
- MCBF: 3 million cycles
- Boom arm included: Not specified by manufacturer
Use Cases
- Residential gated communities
- Commercial parking areas
- Office building entrances
- Shopping mall parking access
- Hotel and hospital vehicle entry points
- Industrial sites and warehouses
- Toll-style controlled entrances
- High-traffic automatic parking barrier systems
Compatibility and Installation Notes
CAME GARD GT4 GGT40AGS is suitable for entrances with a maximum net clearance width of 5 m and must be installed with compatible CAME barrier booms, safety accessories, and access control devices according to the site requirement. Professional installation is recommended because the boom length, balancing spring setup, encoder configuration, safety devices, and opening speed must be correctly adjusted for safe operation. For more technical details, refer to the official CAME page for operational limits and technical data.
Packing Includes
- CAME GARD GT4 GGT40AGS automatic barrier unit
- Integrated 24V DC irreversible gearmotor with encoder
- Galvanized and painted steel cabinet
- Balancing spring
