Product Overview
RIB K800 Sliding Gate Motor is an irreversible residential sliding gate operator for gates weighing up to 800 kg. It is suitable for Abu Dhabi villas, residential entrances, private parking gates, and light access automation where controlled movement and reliable daily operation are required. The K800 range is available with L1-CRX control board options, electromechanical or magnetic limit switches, gradual start, electronic force adjustment, soft-stop during approach, and electronic brake. Its IP44 protection, 230V supply, and rack module 4 drive system make it a practical solution for professionally installed sliding gate automation.
Key Features and Technical Specifications
- Brand: RIB
- Product model: K800
- Product type: Irreversible operator for residential sliding gates
- Maximum gate weight: 800 kg
- Power supply: 230V
- Operating speed: 0.16 m/s for standard K800 version
- Maximum thrust force: 600 N for standard K800 version
- Maximum torque: 20.4 Nm for standard K800 version
- Current draw: 1.38 A for standard K800 version
- Rack module: Module 4
- Actuator weight: 10.5 kg for standard K800 version
- Protection grade: IP44
- Operating temperature: -10°C to +55°C
- Suggested daily cycles: 400 for standard K800 version
- Service rating: 50% for standard K800 version
- Consecutive cycles guaranteed: 8 cycles with 6 m gate
- Control board option: L1-CRX PC board
- Limit switch options: Electromechanical limit switches or magnetic limit switches
- Standard functions: Gradual start, electronic force adjustment, soft-stop in approach, and electronic brake
- Pedestrian opening command: Supported through L1-CRX
- Photocell autotest: Supported as required by EN 12453:2022
- Radio receiver: Not included as standard by manufacturer
- Heating option: ACG4665 probe can be used for low-temperature motor heating
Use Cases
- Residential sliding gates
- Villa entrance gates
- Private parking gates
- Light commercial access gates
- Gated property entrances
- Medium-size warehouse sliding gates
Compatibility and Installation Notes
RIB K800 Sliding Gate Motor is compatible with sliding gates up to 800 kg when the gate structure is stable, the track is clean and level, the rack is correctly aligned, and the electrical supply, photocells, limit switches, and safety accessories are installed properly. Professional installation is recommended because the installer must adjust the force, limit travel, safety photocells, pedestrian opening, manual release, and soft-stop functions before operation. For more technical installation details, refer to the official RIB K800 product documentation.

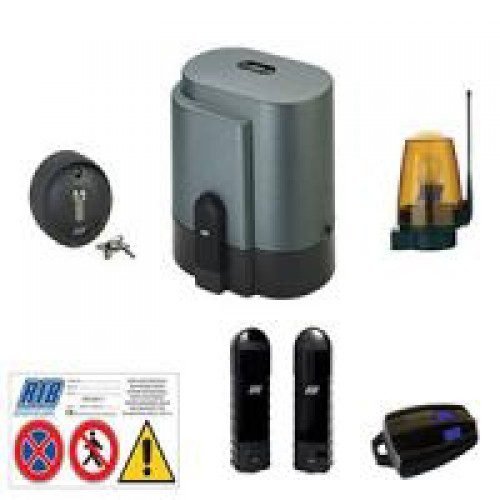

Packing Includes
- 1 x RIB K800 operator equipped with L1-CRX control board
- 1 x SUN 2CH 2-channel transmitter
- 1 x Pair of FIT SLIM photocells
- 1 x SAIL blinker
- 1 x Warning plate and instruction manuals
- 1 x Push button
- 4 x Nylon racks, 1 m each
