Product Overview
RIB K400 gate motor is an irreversible sliding gate operator designed for gates up to 400 kg, suitable for Abu Dhabi residential and light commercial gate automation. The K400 uses a 24V DC motor with 230V mains supply, adjustable operating speed, Module 4 rack drive, and IP44 protection. Its irreversible design helps keep the gate closed without requiring an electric lock in standard installations. The operator includes safety-focused features such as adjustable motor power, photocell compatibility, impact control through the control board, and manual release by key for emergency operation.
Key Features and Technical Specifications
- Brand: RIB
- Product model: K400
- Product type: Irreversible sliding gate operator
- Maximum gate leaf weight: 400 kg
- Power supply: 230V AC, 50/60 Hz
- Motor power supply: 24V DC
- Operating speed: 0.15–0.33 m/s
- Approximate speed range: 9–20 m/min
- Thrust force: 434N
- Torque: 14.7Nm
- Rack module: Module 4
- Power capacity: 96.6W
- Power absorbed with load: 0.42A
- Service rating: 100%
- Suggested daily operations: 78
- Guaranteed consecutive cycles: 40/5m
- Weight of electroreducer: 9.8 kg
- Noise level: Less than 70 dB
- Working temperature: -10°C to +55°C
- Protection rating: IP44
- Built-in heater: Available through control board setting
- Manual release: Key-operated release system
- Base plate: Allows vertical height adjustment
- Rack-to-pinion clearance requirement: 1 mm
- Backup batteries: Optional battery charger board and batteries
Use Cases
- Residential sliding gates
- Villa gate automation
- Light commercial sliding gates
- Small parking entrance gates
- Warehouse access gates within rated weight
- Abu Dhabi property access control systems
Compatibility and Installation Notes
RIB K400 gate motor is compatible with sliding gates up to 400 kg when the gate is mechanically sound, frictionless, correctly guided, and fitted with suitable Module 4 rack and mechanical end stops. Installation requires proper foundation fixing, rack-to-pinion clearance, limit switch cam adjustment, photocell positioning, grounding, and safety checks according to the site risk assessment. RIB states that installation must be carried out by specialized personnel because incorrect installation can cause serious damage or safety risks; for setup details, refer to the official installation manual. Professional installation is recommended to ensure correct force adjustment, safe wiring, emergency release testing, and reliable long-term gate movement.

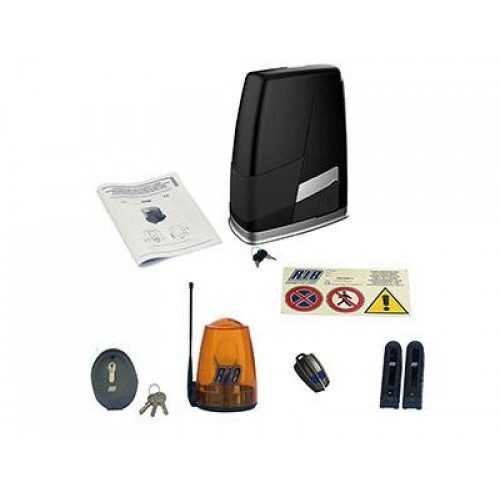

Packing Includes
- 1 x RIB K400 sliding gate motor
- 1 x Warning plate and instruction manual
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies reliable sliding gate automation products with local support, product guidance, and professional installation assistance. We help customers choose the right gate motor based on gate weight, usage level, and safety requirements.
Buy RIB K400 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
