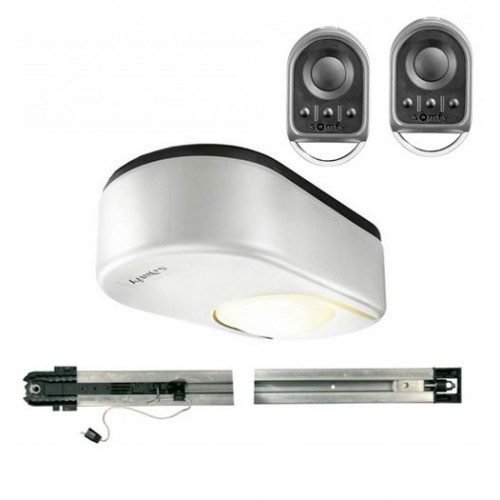

Somfy Dexxo Pro 800 RTS is a reliable garage door motor for residential garage automation in Abu Dhabi. It is designed for motorising sectional doors, projecting up-and-over doors, side-opening sliding doors, swinging doors, and selected semi or non-projecting doors when the correct Somfy accessories are used. The motor offers 800N peak traction force, RTS 433.42 MHz radio technology, built-in lighting, adjustable speed, obstacle detection, and automatic closing options. It is suitable for customers who need smooth, secure, and professionally installed garage door automation with Somfy remote-control convenience.
Key Features and Technical Specifications
- Brand: Somfy
- Model: Dexxo Pro 800 RTS
- Product reference: 1216269
- Product type: Garage door motor head
- Radio technology: RTS
- Radio frequency: 433.42 MHz
- Mains supply: 230V / 50Hz
- Standby power consumption: 5W
- Maximum power consumption: 600W with 500W remote lighting
- Peak traction force: 800N
- Starting force: 650N
- Maximum speed: 18 cm/s
- Built-in lighting: 24V / 21W, BA15s socket
- Remote lighting output: 230V / 500W, Class 2
- Number of memorised channels: 32
- Programming interface: 7 buttons with 2-character LCD display
- Operating temperature: -20°C to +60°C
- Installation environment: Indoor dry location
- Protection rating: IP20
- Electrical insulation: Class 2 double insulation
- Safety input type: Dry contact, NC
- Compatible safety devices: Photoelectric TX/RX cells, reflex cell, sensor strip with dry contact output
- Accessory power supply output: 24V / 500mA max
- Backup battery input: Yes, compatible with Somfy battery pack ref. 9001001
- Backup battery autonomy: 24 hours, 5 to 10 cycles depending on door
- Automatic closing mode: Programmable from 10 to 120 seconds
- Opening speed: Programmable from 3.5 cm/s to 18 cm/s
- Closing speed: Programmable from 3.5 cm/s to 18 cm/s
- Obstacle detection: Built-in, adjustable sensitivity with 4 levels
- Partial opening command: Adjustable partial opening position
- Progressive start-up: Yes
Use Cases
- Residential garage doors
- Villa garage door automation
- Sectional garage doors
- Projecting up-and-over garage doors
- Side-opening sliding garage doors with suitable accessories
- Swinging garage doors with the correct Somfy kit
- Semi and non-projecting garage doors with high-performance rail and matching kit
- Private parking garage entrances
- Smart home garage access using RTS-compatible controls
Compatibility and Installation Notes
The Somfy Dexxo Pro 800 RTS is compatible with several garage door types, but the correct rail, mounting bracket, safety accessories, and door kit must be selected according to the door structure. The door must be mechanically sound, balanced, and able to move smoothly before automation is installed. For safe operation, photoelectric cells are recommended for automatic closing, and professional installation is necessary to set travel limits, test obstacle reversal, connect safety inputs, and secure the manual release system correctly. For detailed fitting guidance, review the official Somfy installation manual. (Somfy)
Packing Includes
- 1 x Somfy Dexxo Pro 800 RTS motor with electronic board
- 2 x Keygo 4 RTS remote controls
- 1 x 2.9m chain rail
- 1 x Fixing accessories set
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies genuine garage door automation products with local support, product guidance, and installation-focused assistance. Customers get help choosing the correct Somfy motor, rail, accessories, and safety devices before purchase, instead of risking the wrong setup for their garage door.
Buy Somfy Dexxo Pro 800 RTS today from PowerGate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
