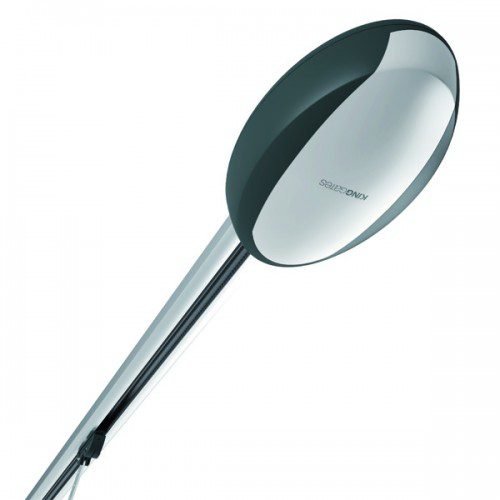

KINGgates ROLLS 1200 garage door motor with rail for sectional door automation
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

KINGgates ROLLS 1200 Sectional | Garage Door Motor

24V DC electromechanical garage door operator with 1200N force, 230Vac input, belt-drive rail, LED courtesy light, 433.92MHz receiver and IP40 protection for sectional or overhead doors.



AED 1,450

Product price:AED 1,450
Total options:
Order total:
- +
Category: Tags: , , , Brand:

ROLLS 1200 Garage Door Motor is a 24V electromechanical automation system for sectional and overhead garage doors in Abu Dhabi. The official KINGgates range confirms ROLLS for sectional doors up to 23 m² and overhead doors up to 14 m², with the ROLLS 1200 model rated at 1200N maximum force. It is built for customers who need reliable garage door automation with self-learning programming, adjustable speed and force control, a strong belt-drive rail, and safe manual release during power failure. This model is suitable for correctly balanced residential garage doors within manufacturer operating limits.

Key Features and Technical Specifications

  • Brand: KINGgates
  • Product range: ROLLS
  • Model: ROLLS 1200
  • Model code: 25S017
  • Product type: Electromechanical gearmotor for sectional and overhead garage doors
  • Maximum force: 1200N
  • Maximum sectional door size: 23 m²
  • Maximum overhead door size: 14 m²
  • Maximum door height: 3.7 m
  • Mains power supply: 230Vac ±10%, 50/60Hz
  • Motor supply: 24V DC
  • Motor power supply for ROLLS 1200: 24V DC, 150W
  • Maximum absorbed power: 300W
  • Working cycle: 60%
  • Protection class: IP40, for indoor or protected environments
  • Operating temperature: -20°C to +55°C
  • Operator dimensions: 414 × 264 × 110 mm
  • Control unit: STAR ROL
  • Programming: Self-learning function
  • Adjustable functions: Dip-switches with power and speed regulation
  • Rail system: Profiled metal guide with belt-drive transmission and 6-core steel cables
  • Courtesy light: LED
  • Radio receiver frequency: 433.920 MHz
  • Transmitter compatibility: DigiPad, Stylo 4K, Myo C4, Novo TX and Novo Digy
  • Manual release: Supported for door movement during power failure
  • Use in acid, saline or potentially explosive atmosphere: No

Use Cases

Compatibility and Installation Notes

ROLLS 1200 Garage Door Motor is compatible with sectional doors up to 23 m² and overhead doors up to 14 m², provided the door is correctly balanced, the guide friction is acceptable, and the required moving force does not exceed the manufacturer’s operating limits. Professional installation is strongly recommended because the system requires correct rail selection, electrical grounding, photocell/safety accessory wiring, force testing, travel setup, and commissioning before use. For installation, safety checks and commissioning guidance, refer to the official handbook (KINGgates).

Packing Includes

  • 1 × KINGgates ROLLS 1200 operator / gearmotor
  • 1 × STAR ROL control unit
  • GRB rail configuration: Not specified by manufacturer for the exact supplied carton
  • STYLO 4K transmitters: 2 pcs in manufacturer-listed ROLLS kit configurations

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies garage door automation products with local product guidance, installation support, and after-sales assistance for Abu Dhabi customers. We help buyers choose the right automation based on door size, door type, safety requirements, and site conditions, instead of selling a motor blindly.

Buy ROLLS 1200 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “KINGgates ROLLS 1200 Sectional | Garage Door Motor”

Your email address will not be published. Required fields are marked *

Sectional doors distribute their panel weight across multiple hinge points and track rollers, with spring counterbalancing reducing the effective traction load on the motor. Overhead (tip-up) doors move as a single rigid panel, concentrating the full momentum at the pivot point and generating higher inertial load during movement. The KINGgates ROLLS 1200 allows a larger 23 m² sectional door because the load is better distributed, but limits overhead doors to 14 m² where the single-panel inertia is more demanding on the 1200N rated motor.

The KINGgates ROLLS 1200 drive rail uses a profiled metal guide with belt transmission incorporating 6-core steel cables. Standard belt rails use a rubber or polyurethane belt without steel reinforcement. The 6 steel cores running through the belt provide tensile strength under sustained 1200N carriage forces, preventing belt stretch or snap over time. This reinforced belt combines the quiet, smooth movement of belt drive with the structural durability of a cable-reinforced construction, suited to heavier Abu Dhabi garage door applications.

The KINGgates ROLLS 1200’s 433.92 MHz receiver is compatible with five KINGgates transmitter families: DigiPad, Stylo 4K, Myo C4, Novo TX, and Novo Digy. This wide compatibility allows Abu Dhabi users with existing KINGgates transmitters from other gate or door automation products on the same property to use one remote for multiple access points. The kit includes 2× Stylo 4K transmitters as standard — the same visor-clip format remote used across the KINGgates sliding gate range.

The KINGgates ROLLS 1200’s STAR ROL control unit uses physical dip-switches to set force and speed levels, rather than navigating a display menu. Each dip-switch position corresponds to a defined force or speed setting, selected by toggling the switch before commissioning. For Abu Dhabi installers familiar with hardware-based configuration, dip-switches offer a fast, direct setting method. The self-learning function then memorises the door’s open and close travel positions automatically on the first commissioning run, regardless of the dip-switch settings.

The KINGgates ROLLS 1200 supports doors up to 3.7m high, 60% working cycle, IP40, -20°C/+55°C. KINGgates explicitly states the motor must not be used in acid, saline, or potentially explosive environments — relevant for Abu Dhabi coastal, chemical, or fuel storage properties. Standard packing includes: 1× ROLLS 1200 gearmotor, 1× STAR ROL control unit, and 2× Stylo 4K remotes. Rail configuration must be confirmed separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
