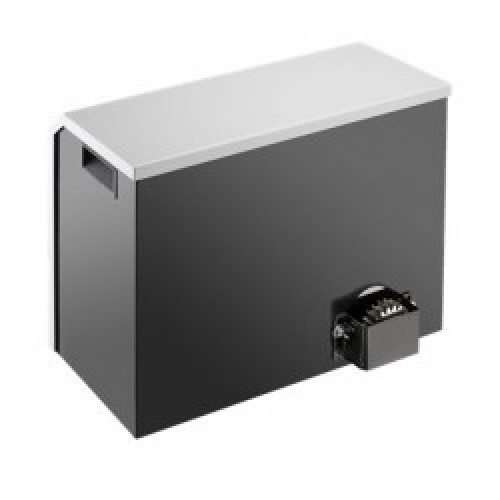

SOMMER GIGAslide 1800 Sliding Gate Motor

Product Overview

SOMMER GIGAslide 1800 is a heavy-duty sliding gate motor for gates weighing up to 1,800 kg. It is suitable for Abu Dhabi industrial entrances, large residential gates, commercial access points, and heavy sliding gate systems that require strong torque and reliable operation. The operator uses the GIGAcontrol A automatic control system, SOMloq2 radio technology, and a 868.95 MHz SOMup4 S2 receiver. With IP44 protection, up to 240 mm/s opening speed, and soft start/soft stop operation, this motor is designed for powerful and controlled gate movement.

Key Features and Technical Specifications

• Brand: SOMMER
• Product name: GIGAslide 1800 single operator
• Article number: S13519-00001
• Product type: Sliding gate operator
• Colour/version: Black/white aluminium
• Maximum gate weight: 1,800 kg
• Maximum travel path: 18,000 mm
• Maximum opening speed: 240 mm/s
• Maximum torque: 120 Nm
• Power consumption in standby: 13 W
• Rated voltage range: 220–240 V
• Rated frequency: 50–60 Hz
• Operating temperature range: -25°C to +65°C
• Protection class: IP44
• Radio system: SOMloq2
• Radio frequency: 868.95 MHz
• Radio memory locations: 40
• Radio receiver: SOMup4 S2, pluggable, FM 868.95 MHz SOMloq2
• Memory extension: Slot for Memo memory extension up to 450 radio commands
• Control system: GIGAcontrol A automatic control system
• Functions: Automatic closing, partial opening, soft start/soft stop, dead-man function, pulse mode, adjustable pre-warning time
• Safety note: Active safety contact strips are required on main and auxiliary closing edges
• Rack requirement: For gates over 600 kg, operation is permissible only with steel racks

Use Cases

• Heavy industrial sliding gates
• Commercial entrance gates
• Large villa sliding gates
• Warehouse access gates
• Factory entrance gates
• Private compounds and high-duty access points
• Large parking and logistics entrances

Compatibility and Installation Notes

SOMMER GIGAslide 1800 is compatible with sliding gates up to 1,800 kg and a travel path up to 18 m when the gate structure, steel rack, foundation, control wiring, photocells, safety contact strips, and emergency stop devices are correctly installed. Active safety contact strips must be used on the main and auxiliary closing edges, and gates above 600 kg must use steel racks. Professional installation is strongly recommended because torque, travel limits, safety inputs, radio programming, soft running, and emergency release functions must be configured and tested correctly. For more technical details, refer to the official SOMMER product page.

Packing Includes

• 1 x SOMMER GIGAslide 1800 single operator
• 1 x Motor control unit
• 1 x SOMup4 S2 radio receiver, FM 868.95 MHz SOMloq2

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies heavy-duty gate automation products with local support, product guidance, and installation-focused assistance for Abu Dhabi customers. We help buyers select the correct motor, safety accessories, rack system, and control setup for reliable long-term gate operation.

Buy SOMMER GIGAslide 1800 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
