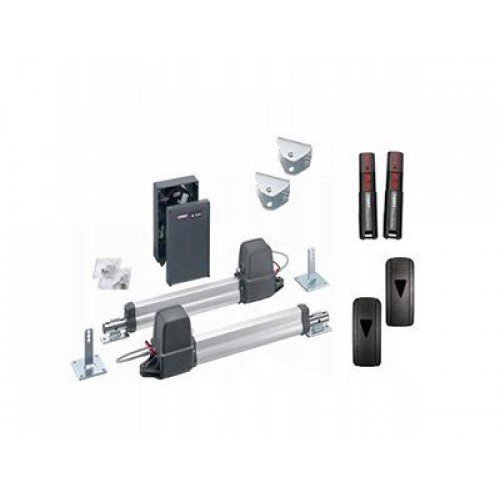

Sommer twist 200 E swing gate kit with operators, control unit and accessories
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Sommer twist 200 E Swing Gate Motor Kit

24V swing gate operator set with two twist 200 E drives, 390mm travel, 2000N max force, IP44 motors, IP65 control housing, 868.95MHz SOMloq2 receiver, handheld transmitters and fittings.



AED 2,150

Product price:AED 2,150
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Sommer twist 200 E is a 2-leaf swing gate motor kit designed for gates up to 2.5m leaf width and up to 300kg per leaf, depending on gate size and installation conditions. It is suitable for Abu Dhabi residential and light commercial swing gate automation where reliable movement, compact design, and controlled opening are required. The operator supports 1-leaf and 2-leaf installations, uses internal limit switches for gate open and close positions, and includes automatic force monitoring through the control unit for safer operation.

Key Features and Technical Specifications

  • Brand: SOMMER
  • Product model: twist 200 E
  • Article number: S11521-00001
  • Product type: Swing gate operator set for 2-leaf gates
  • Gate operation: 1-leaf or 2-leaf swing gate automation
  • Mains voltage: AC 220–240V
  • Rated frequency: 50–60Hz
  • Travel length / movement range: 390mm
  • Maximum gate weight: 300kg per leaf
  • Maximum gate leaf length: 2.5m per leaf, at max. 200kg
  • Minimum gate leaf length: 0.825m per leaf
  • Gate inclination: Up to 10%
  • Operating time: S3 = 15%
  • Operating temperature: -30°C to +70°C
  • Operator protection class: IP44
  • Control unit protection class: IP65
  • Max. traction and pressure force: 2,000N per leaf
  • Rated pulling and pushing force: 660N per leaf
  • Max. power consumption: 140W per leaf
  • Rated power consumption: 75W per leaf
  • Max. current consumption: 0.8A per leaf
  • Rated current consumption: 0.45A per leaf
  • Power-saving mode consumption: 2.9W
  • Max. feed speed: 16.5mm/s
  • Radio frequency: 868.95MHz SOMloq2
  • Radio memory: 40 positions, expandable to 450 with Memo
  • Emission value: 47dB(A)
  • Internal limit switches: Yes
  • Automatic force monitoring: Yes

Use Cases

Compatibility and Installation Notes

Sommer twist 200 E is suitable for stable and rigid swing gate leaves that do not bend or twist during operation, and the gate hinges should have minimal play. Mechanical stops at the gate open and gate close positions are essential, and the control unit must be connected to the mains by a qualified electrician. The manufacturer also notes that the supplied mains cable is not approved for permanent or outdoor operation, so correct wiring, conduits, safety accessories, and final testing are important. For full installation and safety guidance, review the official SOMMER installation and operating manual. Professional installation is recommended for bracket alignment, force learning, radio setup, photocell connection, and safe commissioning.

Packing Includes

  • 2 x twist 200 E swing gate operators
  • 1 x Control unit DST-A 24 in housing
  • 1 x Post and gate leaf fitting set
  • 1 x SOMup4 radio receiver, FM 868.95MHz
  • 1 x Pearl Vibe 4-command handheld transmitter
  • 1 x Blinker light
  • 2 x Fixing brackets

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable swing gate automation products with local Abu Dhabi support, product guidance, and customer-focused service. We help buyers choose the correct motor kit according to gate size, usage, and installation requirements. Buy Sommer twist 200 E today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Sommer twist 200 E Swing Gate Motor Kit”

Your email address will not be published. Required fields are marked *

Yes — the Sommer twist 200 E’s -30°C to +70°C operating range is the widest of any motor in the POWERgate Abu Dhabi range, and the only motor combining both temperature extremes simultaneously. The RIB PRINCE 24V matches -30°C at the cold end, and LIFE motors match +70°C at the hot end — but no other motor achieves both in one product. For Abu Dhabi gate pillars facing direct afternoon sun where surface temperatures can reach +65–70°C in summer, the twist 200 E’s +70°C upper limit provides the strongest thermal protection in the entire range without risk of shutdown.

Yes — the Sommer twist 200 E’s 47 dB(A) emission level is the lowest published noise figure in the POWERgate Abu Dhabi range. The previous quietest was the MOTORLINE LINCE at ≤50 dB(A); most other motors with noise ratings publish ≤70 dB(A). At 47 dB(A), the twist 200 E operates at approximately the level of a library or quiet room. For Abu Dhabi villas where the gate motor is close to bedroom windows, sleeping areas, or shared walls, the twist 200 E is the most acoustically considerate swing gate motor available.

The Sommer twist 200 E’s DST-A 24 control unit in housing carries IP65 protection — the only control unit in the POWERgate Abu Dhabi range to achieve this rating. IP65 means complete dust-tightness (6) and protection against water jets from any direction (5), significantly more robust than IP44 (protection against objects >1mm and water splashing). For Abu Dhabi pillar-mounted control boxes exposed to heavy dust accumulation and occasional irrigation system overspray or rain, IP65 eliminates the moisture and dust ingress failures that commonly affect IP44 panels over multi-year outdoor operation.

The Sommer twist 200 E specifies a 2.9W power-saving mode consumption — the standby power draw of the DST-A 24 control unit when the gate is stationary and waiting for the next command. The twist 200 E is the only motor in the POWERgate Abu Dhabi range to publish a standby consumption figure. At 2.9W continuous, the annual standby energy cost is negligible. For Abu Dhabi solar-powered gate installations or properties managing electricity consumption carefully, the low standby figure confirms the twist 200 E as one of the most energy-conscious gate automation solutions available.

The Sommer twist 200 E’s SOMup4 receiver stores 40 radio positions as standard, using the 868.95 MHz SOMloq2 proprietary rolling code protocol. Capacity expands to 450 positions by adding SOMMER’s optional Memo accessory, which provides additional code storage memory to the receiver. The Pearl Vibe 4-command transmitter and SOMloq2 protocol are SOMMER-specific — non-SOMMER 868 MHz remotes (such as Marantec bi.linked or Genius 868 MHz) are not compatible. For Abu Dhabi apartment blocks or gated communities, the 450-position expansion covers large numbers of residents from a single receiver.

The Sommer twist 200 E carries a 24-month manufacturer warranty. The gate leaf must be between 0.825m and 2.5m per leaf — the only motor in the range with a published minimum leaf length. The gate must not bend or twist during operation, and hinges must have minimal play. The S3 = 15% duty cycle is low, suited to residential use with natural rest intervals. The supplied mains cable is not rated for outdoor permanent installation — correct conduit and wiring is required by the installer. Mechanical stops at open and close are essential. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
