RIB PRINCE Swing Gate Motor Kit

Product Overview

RIB PRINCE Swing Gate Motor is a 24V swing gate automation kit for Abu Dhabi properties with gate leaves up to 3 m long and weighing up to 250 kg. The KIT PRINCE 24V is an all-in-one system supplied with two PRINCE operators, B2 24V-CRX electronic control board, APP card, transmitter, photocells, and warning accessories. It is designed for smooth swing gate movement, pedestrian opening, impact detection with the compatible RIB control board, and controlled slowdown near the final gate position.

Key Features and Technical Specifications

• Brand: RIB
• Product name: KIT PRINCE 24V
• Product type: Swing gate motor kit
• Operator model: PRINCE 24V
• Application: Swing gate automation
• Maximum leaf length: 3 m
• Maximum leaf weight: 250 kg
• Motor power supply: 24 Vdc
• Control board: B2 24V-CRX
• Maximum opening time: 17 seconds average
• Maximum traction stroke: 343 mm
• Average traction speed: 0.0134 m/s
• Maximum power with B2 24V: 44 W
• Maximum absorption with B2 24V: 2.2 A
• Maximum force with B2 24V: 1450 N
• Recommended daily cycles: 60
• Service rating: 80%
• Guaranteed consecutive cycles: 60/14s
• Motor weight: 5 kg
• Noise level: Less than 70 dB
• Operating temperature: -30°C to +55°C
• Protection rating: IP44
• Radio receiver frequency: 433.92 MHz
• B2 24V-CRX memory capacity: 1000 codes
• Features with B2 24V-CRX: impact detection, pedestrian opening, slowdown near final position
• Optional battery backup: Not included in standard kit

Use Cases

• Residential swing gates
• Villa entrance gates
• Private driveway gates
• Double-leaf swing gate automation
• Pedestrian opening gate systems
• Light residential access control in Abu Dhabi
• Small private parking entrance gates

Compatibility and Installation Notes

The RIB PRINCE Swing Gate Motor is suitable for double swing gates where each leaf is within the manufacturer limit of 3 m and 250 kg. Before installation, the gate structure, hinge movement, pillar strength, mechanical stops, electrical cabling, photocell positioning, and emergency release access must be checked. RIB notes that correct operation is only guaranteed when the operator is managed by a RIB control panel, so professional installation is recommended for wiring, B2 24V-CRX setup, force adjustment, pedestrian opening programming, impact sensor testing, and final safety commissioning. For detailed setup guidance, refer to the official PRINCE 24V manual.

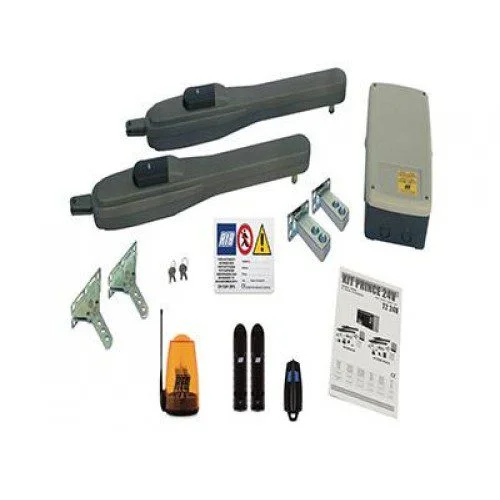

Packing Includes

• 2 x PRINCE 24V swing gate operators
• 1 x B2 24V-CRX electronic control board
• 1 x APP card for Bluetooth control
• 1 x SUN 2CH 2-channel transmitter
• 1 x Pair of FIT SLIM photocells
• 1 x SAIL blinker with built-in 433 MHz antenna
• 1 x Warning plate and instruction manuals
