BENINCA BILL30M Swing Gate Motor Kit

Product Overview

BENINCA BILL30M Swing Gate Motor is a 230 Vac irreversible electromechanical geared motor kit designed for swing gates up to 2.5 m per door leaf. It is a compact and reliable automation solution for Abu Dhabi customers who need smooth gate movement for forged iron or wrought-iron swing gates. The BILL30M features a neat design, quick installation geometry, stainless steel stem, and scraper-ring protection for dusty, sandy, or aggressive outdoor environments. Its top-access manual release helps make maintenance and emergency release easier for residential and light commercial gate automation.

Key Features and Technical Specifications

• Brand: Benincà
• Product model: BILL30M
• Kit model: KBILL30M
• Product type: Irreversible electromechanical geared motor for swing gates
• Motor supply: 230 Vac, 50–60 Hz
• Maximum leaf dimension: 2.5 m per door leaf
• Maximum absorbed current: 1.1 A
• Maximum thrust: 2800 N
• Opening time: 16 seconds
• Standard stroke: 300 mm
• Maximum stroke: 320 mm
• Duty cycle: 30%
• Protection level: IP54
• Built-in control unit: Not specified by manufacturer
• Encoder: Not specified by manufacturer
• Operating temperature: -20°C to +50°C
• Lubrication: Grease
• Operator weight: 6.1 kg
• Kit weight: 14.6 kg
• Available in right or left version
• Worm protected by scraper ring and stainless steel stem
• Suitable for dusty, sandy, or aggressive atmospheric environments

Use Cases

• Residential swing gates
• Villa entrance gates
• Forged iron gates
• Wrought-iron swing gates
• Light commercial gate entrances
• Private parking entrances
• Small property access control gates

Compatibility and Installation Notes

BENINCA BILL30M Swing Gate Motor is compatible with swing gate leaves up to 2.5 m per door leaf and works with 230 Vac automation systems. Installation requires correct gate geometry, secure bracket fixing, proper wiring, control unit setup, photocell alignment, and final safety testing before operation. Professional installation is recommended because swing gate automation involves force adjustment, moving mechanical parts, electrical connections, and safety accessories that must be installed correctly. For verified dimensions, kit contents, and technical details, check the official Benincà product details.

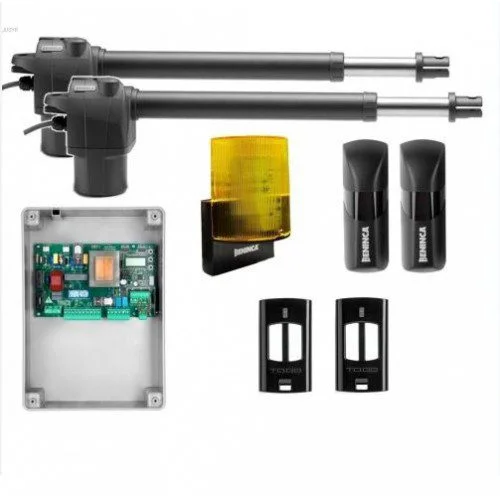

Packing Includes

• 2 x BILL30M 230 Vac electromechanical geared motors
• 1 x HEADY 230 Vac control unit with integrated receiver
• 1 x PUPILLA.T pair of adjustable photocells
• 1 x LAMPY flashing light with integrated antenna
• 1 x TO.GO2VA 2-channel 433.92 MHz transmitter
