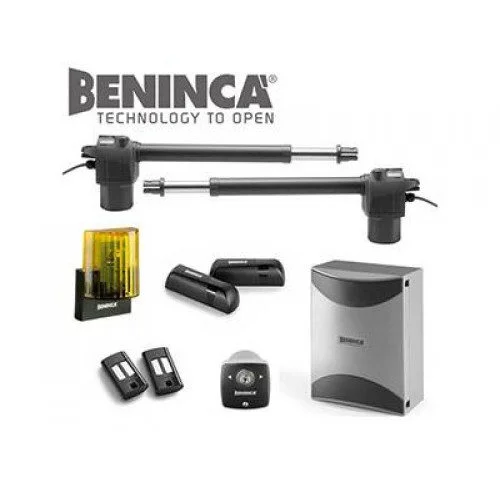

BENINCA BILL50M 230 Vac Swing Gate Motor Kit

The BILL50M takes 21 seconds to complete a full open cycle — longer than the BILL30M (16 seconds) and BILL40M (18 seconds) because its 500mm stroke must travel a greater distance to fully extend the gate leaf to 4.0m. At a standard 30% duty cycle, each full open/close sequence on the BILL50M takes approximately 44–46 seconds. This is within normal parameters for residential and light commercial gates. The operating temperature range of -20°C to +50°C and IP54 protection ensure consistent 21-second cycling performance across Abu Dhabi’s temperature extremes.

The KBILL50M kit includes two personalised manual release keys — one per motor — which is unique in the BILL range. Each key is inserted into the top of its respective BILL50M motor housing to disengage the 500mm stroke actuator from the irreversible worm mechanism, allowing the gate leaf to be moved by hand. Given the BILL50M’s 6.9 kg motor weight and the extended 4.0m gate leaves it typically operates, gate hinges must be well-lubricated and properly aligned for manual operation to be manageable. The inclusion of two keys ensures both gate leaves can be independently released.

Yes. The HEADY 230 Vac control unit in the KBILL50M kit accepts a GSM opener, video intercom, keypad, or RFID reader via its dedicated auxiliary, stop, and trigger input terminals. The HEADY provides independent torque adjustment for each of the two BILL50M actuators, supports separate photocell inputs for opening and closing phases, and its integrated 433.92 MHz receiver decodes rolling code and fixed code signals. The kit includes an exit push button for pedestrian release, which can be replaced or supplemented with a coded keypad or access reader. The HEADY’s standby power consumption complies with EU Regulation 2023/826.

The PUPILLA.R is a pair of fixed-beam infrared safety photocells — the transmitter and receiver must be mounted directly opposite each other with no angular adjustment. This differs from the PUPILLA.T (adjustable) supplied with the BILL30M and BILL40M kits. For standard villa driveways in Abu Dhabi where gate posts sit directly opposite each other at a consistent height, the PUPILLA.R is fully adequate. The photocell beam must be positioned to protect the full gate opening width — with gate leaves up to 4.0m per leaf, beam placement should be confirmed by the installing technician before commissioning.

The BENINCA BILL50M carries a 24-month manufacturer warranty from the purchase date, covering material and workmanship defects under normal operating conditions. Warranty is voided by power surge damage to the HEADY control unit, incorrect bracket geometry causing mechanical stress on the 500mm stroke actuator, or modification of any component. Because the BILL50M is the most mechanically extended model in the BILL range, precise bracket positioning during installation is especially critical. At POWERgate Abu Dhabi, warranty support is handled locally — contact us on WhatsApp (+971 50 884 4933) or at sales@powergatead.com.
