Benincà BULL8M 800 kg Sliding Gate Motor Kit

230 Vac sliding gate motor for gates up to 800 kg, integrated control unit, encoder, 940 N thrust, 10.5 m/min opening speed, IP44 protection, M4 Z18 pinion, grease lubrication and 30% duty cycle.





AED 2,175

Product price:AED 2,175
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Benincà BULL8M motor is a 230 Vac sliding gate gear motor designed for gates weighing up to 800 kg. It is built for reliable gate automation in Abu Dhabi properties where controlled access, safety, and smooth gate movement are required. The motor includes an integrated control unit, built-in receiver, and encoder device for accurate gate movement and anti-crushing safety during operation. Its compact design makes it suitable for different architectural settings, while the 64-transmitter memory gives flexibility for multi-user access. Official Benincà data lists the BULL8M as a commercial/community-use sliding gate automation system.

Key Features and Technical Specifications

  • Brand: Benincà
  • Model: BULL8M
  • Product type: Sliding gate gear motor
  • Power supply: 230 Vac, 50–60 Hz
  • Motor supply: 230 Vac
  • Maximum gate weight: 800 kg
  • Maximum absorbed current: 2.6 A
  • Maximum thrust: 940 N
  • Opening speed: 10.5 m/min
  • Duty cycle: 30%
  • Protection level: IP44
  • Built-in control unit: Yes
  • Integrated receiver: Yes
  • Encoder: Yes
  • Virtual encoder: No
  • Magnetic limit switches: No
  • Receiver memory: 64 transmitters
  • Pinion for rack: M4 Z18
  • Operating temperature: -20°C to +50°C
  • Lubrication: Grease
  • Motor weight: 13.6 kg
  • Kit weight: 14.5 kg
  • Release device: Metal release system with personalised release key
  • Foundation plate: Reinforced foundation plate included
  • Foundation plate dimensions: 326 x 164.5 x 2 mm
  • Motor fixing distance: 301 x 75 mm
  • Foundation plate holes: 4 holes, Ø 8.5 mm

Use Cases

  • Sliding gate automation for villas with suitable gate weight and duty cycle
  • Commercial entrance gates
  • Community access gates
  • Parking entrance gates
  • Warehouse sliding gates
  • Industrial access points with moderate operating cycle requirements
  • Controlled access areas requiring transmitter-based entry

Compatibility and Installation Notes

The Benincà BULL8M motor is compatible with sliding gates up to 800 kg using an M4 Z18 rack pinion system and a 230 Vac power supply. Installation must include correct foundation fixing, rack alignment, photocell positioning, control unit setup, encoder configuration, and safety testing before handover. Because this motor includes electrical wiring, moving mechanical parts, and anti-crushing safety functions, professional installation is strongly recommended. For official technical details and installation guidance, refer to the Benincà BULL8M product information.

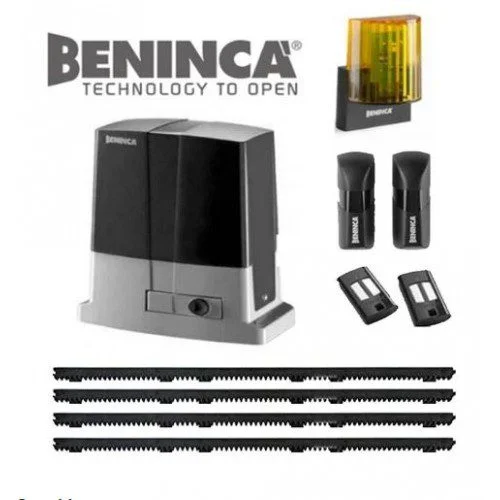

Packing Includes

  • 1 x Benincà BULL8M 230 Vac gear motor with integrated control unit and encoder
  • 1 x PUPILLA.T pair of adjustable photocells
  • 1 x LAMPY flashing light with integrated antenna
  • 1 x TO.GO2VA 2-channel 433.92 MHz transmitter

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable automation products with local support for gate motor selection, installation guidance, and after-sales assistance. Buying locally helps you get better product matching, faster communication, and practical support for Abu Dhabi gate automation requirements.

Buy Benincà BULL8M today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Benincà BULL8M 800 kg Sliding Gate Motor Kit”

Your email address will not be published. Required fields are marked *

The Benincà BULL8M and the Beninca BULL6M SE.S are both 230 Vac grease-lubricated motors with M4 Z18 pinion, encoder, PUPILLA.T photocells, and TO.GO2VA remote. The BULL8M handles 800 kg at 940N with IP44, 13.6 kg, community use, and personalised release key — but no magnetic limit switches. The BULL6M SE.S handles 600 kg at 650N, 10.9 kg, includes magnetic limit switches but has no confirmed IP rating. The BULL8M is the correct choice for gates between 600–1000 kg with IP44 protection.

The Benincà BULL8M’s 940N maximum thrust via M4 Z18 pinion acts on the gate rack to generate the rotational force needed to accelerate an 800 kg gate from rest. The gate’s track rollers must be in good condition: worn rollers on an 800 kg gate can require significantly more than 940N to overcome rolling resistance, pushing the motor into overload. Track alignment, roller maintenance, and gate balance directly affect how much of the 940N is used for inertia versus friction, leaving margin for the encoder’s obstacle detection response.

The Benincà BULL8M includes a metal release system with a personalised release key. The personalised key is cut specifically for this motor unit — a standard or universal key cannot operate the release. This prevents unauthorised persons from manually disengaging the motor and sliding the gate open during a power failure or at any time without the property owner’s key. For Abu Dhabi community and commercial entrances where gate security is important, the personalised key is a meaningful deterrent against forced manual access.

The Benincà BULL8M uses its standard encoder to track gate position throughout every cycle, without physical magnetic limit switches. The encoder counts motor shaft revolutions from the learned start position, and the integrated control unit uses these counts to determine when the gate has reached the programmed open and closed limits. The encoder must be correctly calibrated during commissioning. A separate travel-learning procedure programs the open and close positions into the control unit, replacing the definitive position signal that magnetic limit switches would otherwise provide.

The Benincà BULL8M carries a 24-month BENINCA manufacturer warranty. Kit includes: 1 x BULL8M motor with built-in control unit and encoder, 1 x PUPILLA.T adjustable photocell pair, 1 x LAMPY flashing light with integrated antenna, and 1 x TO.GO2VA 2-channel ARC transmitter. Foundation plate, push button, rack, and additional remotes must be sourced separately. The IP44 rating provides confirmed dust and splash protection for Abu Dhabi outdoor pillar mounting. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
