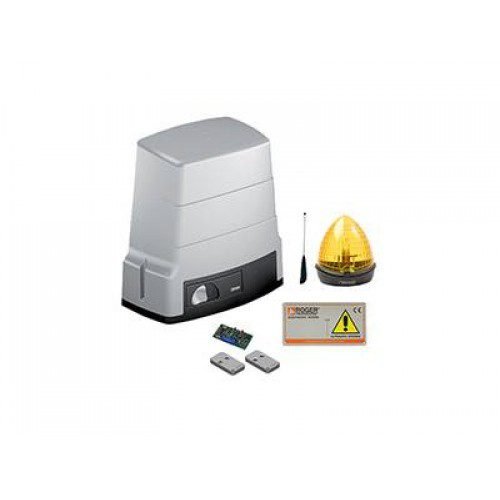

Roger R30/805 Sliding Gate Motor Kit

Product Overview

Roger R30/805 Motor is a 230V AC irreversible electromechanical sliding gate automation kit for Abu Dhabi customers who need reliable operation for gates up to 800kg. The kit includes the R30/803 motor with built-in H70 control unit, optical encoder, fixing plate, mechanical limit switch, receiver, transmitters, photocells, flashing light, and automatic-opening signboard. Designed for medium-duty access control, it offers 500N thrust, 50% frequency of use, and 9.5 m/min manoeuvre speed. Its compact structure, IP44 protection, and integrated control system make it suitable for residential and commercial sliding gate automation.

Key Features and Technical Specifications

• Official kit model: KIT R30/805
• Motor model included: R30/803
• Gate type: Sliding gate automation
• Motor type: Electromechanical irreversible motor
• Maximum gate weight: 800kg
• Power line supply: 230V AC, 50Hz
• Motor power supply: 230V AC
• Power rating: 350W
• Stand-by consumption: ≤ 0.5W
• Frequency of use: 50%
• Thrust: 500N
• Operating temperature: -20°C to +55°C
• Protection level: IP44
• Reducer type: Irreversible
• Manoeuvre speed: 9.5 m/min, equal to 0.16 m/s
• Motor thermal protection: 150°C
• Incorporated condenser: 15 µF
• Limit switch: Mechanical
• Onboard control unit: H70/104AC
• Encoder: Optical
• Exit gear type: Z17/mod 4
• Maximum product dimensions: 325 x 162 x 295mm
• Packed product weight: 15.9kg
• Number of items per pallet/box: 44
• Receiver: H93/RX22A/I plug-in receiver, fixed code, 2 channels, 433.92MHz
• Receiver memory: 500 storable codes
• Transmitters: T80/TX2 dual-code transmitters, 433.92MHz, 2 channels, with copy function
• Photocells: R90/F2ES synchronized external photocells
• Flashing light: FIFTHY/230 LED flashing light 230V–115V with integrated antenna

Use Cases

• Residential sliding gates
• Villa entrance gates
• Commercial sliding gates
• Parking entrance automation
• Medium-duty access control points
• Small warehouse sliding gates
• Gated property entrances
• Sliding gates requiring optical encoder control

Compatibility and Installation Notes

The Roger R30/805 Motor is suitable for sliding gates up to 800kg where the gate track, rollers, rack alignment, foundation plate, mechanical stops, power supply, photocells, and safety devices are correctly prepared. Professional installation is strongly recommended because incorrect wiring, wrong rack positioning, poor force setup, or unsafe photocell placement can damage the motor and create safety risks. Installers should review the official Roger Technology KIT R30/805 product data sheet before mounting, wiring, commissioning, and safety testing.

Packing Includes

• 1 x R30/803 electromechanical 230V AC irreversible motor
• 1 x Built-in H70 control unit
• 1 x Optical encoder
• 1 x Fixing plate with tie rods
• 1 x Mechanical limit switch
• 1 x H93/RX22A/I plug-in receiver, fixed code, 2 channels, 433.92MHz
• 2 x T80/TX2 dual-code transmitters, 433.92MHz, 2 channels
• 1 x R90/F2ES pair of synchronized external photocells
• 1 x FIFTHY/230 LED flashing light with integrated antenna
• 1 x R99/C/001 “Automatic Opening” signboard

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable sliding gate automation products with local support, technical guidance, and after-sales assistance for Abu Dhabi buyers. We help customers select the correct motor capacity, accessories, and installation setup for safe long-term gate automation.

Buy Roger R30/805 today from POWERgate abu dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
