Product Overview

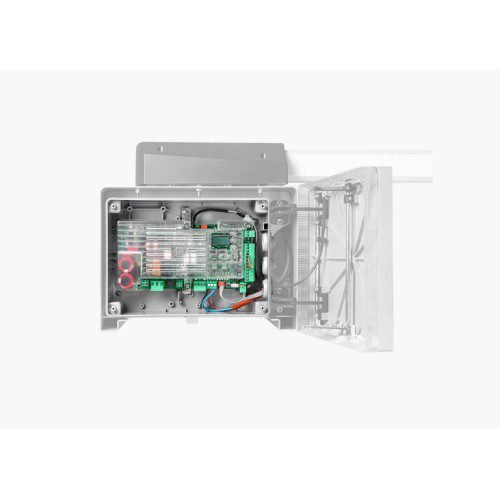

BENINCA CP DIVA control board is an internal control unit for managing one brushless road barrier from the Benincà DIVA range in Abu Dhabi automation systems. It supports 115V or 230V selectable power input and supplies a 24Vdc three-phase brushless motor. The board includes an LCD display, integrated 433.92MHz radio receiver, ARC coding, removable terminal blocks, and multiple operating logics. It is built for precise barrier control, safety management, speed adjustment, torque control, and system diagnostics in compatible barrier installations.
Key Features and Technical Specifications
- Official model: BENINCA CP.DIVA
- Product type: Internal control unit for DIVA road barrier range
- Application: 1 brushless road barrier from the DIVA range
- Control unit power supply: 115V or 230V AC selectable, 50/60Hz
- Motor power supply: 24Vdc / 11A three-phase brushless
- Integrated LCD display: Yes
- Integrated receiver: 433.92MHz radio receiver
- Receiver memory: Up to 512 codes
- Radio coding: ARC coding
- Terminal blocks: Removable terminal boards
- Operating logic: Automatic, semi-automatic, and deadman logic
- Inputs: Step-by-step, stop, photocell, open, and close inputs
- Configurable outputs: Open barrier indicator, second radio channel, boom lights, courtesy light, verified photocell power supply, maintenance indicator, and barrier status contact
- Autoset: Automatic operation parameter setup
- Torque control: Electronic torque adjustment with STC System
- Speed control: Separate electronic opening and closing speed adjustments
- Safety control: Anti-crushing safety through amperometric detection and encoder management
- Slowdown function: Electronic slowdowns in opening and closing
- Opposed barrier setup: Prepared for SIS synchronisation board, optional
- KNX connection: Prepared for X.BE card, optional
- App/service management: Prepared for BeUP app with PRO.UP accessory
- Battery charger: Built-in charger compatible with DA.BT2 / DA.BT6 batteries
- Programming protection: Access password available
- Maintenance function: Manoeuvre counter and maintenance warning
Use Cases
- DIVA road barrier control systems
- Parking barrier automation
- Commercial access entrances
- Residential compound barrier systems
- Industrial entry and exit control points
- Maintenance replacement for compatible Benincà barrier systems
- Barrier automation upgrades requiring ARC receiver support
- Sites requiring speed, torque, and encoder-based control management
Compatibility and Installation Notes
The BENINCA CP DIVA control board is not a universal gate barrier PCB; it is designed for one brushless road barrier from the Benincà DIVA range. Compatibility must be checked against the installed barrier model, motor type, accessories, photocells, receiver requirements, battery backup setup, and optional synchronisation or KNX modules. Professional installation is strongly recommended because incorrect wiring, wrong voltage selection, poor safety input setup, or skipped anti-crushing tests can damage the control unit or create unsafe barrier movement. For technical confirmation, check the official Benincà control unit details.
Packing Includes
- 1 x BENINCA CP.DIVA internal control unit
