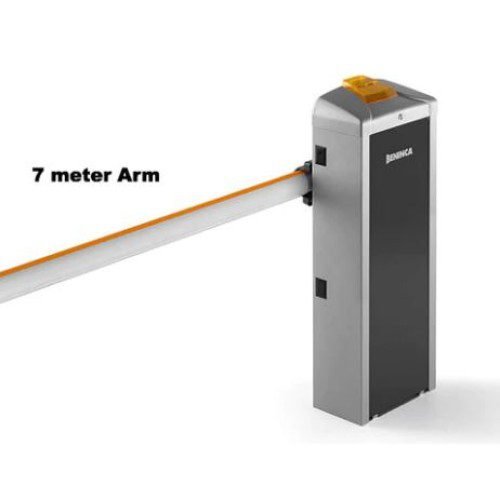

Beninca EVA 7 parking barrier with 7 meter arm for vehicle access control
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

Beninca EVA 7 Parking Gate Barrier

24 Vdc electromechanical barrier for passages up to 7.0 m, intensive-use operation, integrated CP.EVA control unit, encoder, battery charger, IP44 rating, 285 Nm torque, and 3.5–6 s opening.

AED 6,350

Product price:AED 6,350
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

Beninca EVA 7 Barrier is a 24 Vdc electromechanical parking gate barrier designed for passages up to 7.0 m in Abu Dhabi. The official Benincà EVA.7 model is built for intensive use and includes an integrated control unit, encoder, and battery charger for reliable automation performance. It is suitable for parking entrances, commercial access lanes, villa compounds, warehouses, and industrial premises where controlled vehicle entry is required. The system supports optional photocells, LED arm lights, flashing lamp accessories, and opposed-barrier synchronization with the optional SIS board.

Key Features and Technical Specifications

  • Official product name: Barrier EVA.7
  • Product type: 24 Vdc electromechanical road barrier
  • Application: Passages up to 7.0 m
  • Duty cycle: Intensive use
  • Power supply: 100 ÷ 250 Vac, 50–60 Hz
  • Motor supply: 24 Vdc
  • Max absorbed current: 3.1 / 1.6 A
  • Torque: 285 Nm
  • Opening time: 3.5 s ÷ 6 s
  • Protection level: IP44
  • Control unit: Built-in CP.EVA
  • Integrated receiver: Yes
  • Encoder: Yes
  • Battery charger: Integrated
  • Operating temperature: -20°C to +50°C
  • Lubrication: Grease
  • Passage width: 7.0 m
  • Weight: 78.4 kg
  • Receiver memory: 64 transmitters storable inside the receiver
  • Optional accessories supported: LED.AL8 arm lights, FTC.S photocells, EVA.LAMP flashing lamp, SIS synchronization board
  • Available versions: Right or left version
  • Foundation plate: Not included by manufacturer

Use Cases

  • Parking entrance automation
  • Commercial building vehicle access
  • Residential compound parking lanes
  • Villa parking access control
  • Warehouse entry and exit points
  • Industrial facility access lanes
  • Office and staff parking areas
  • Opposed-barrier installations with optional synchronization board

Compatibility and Installation Notes

Beninca EVA 7 Barrier is compatible with Benincà EVA road barrier accessories and the integrated CP.EVA control unit used for EVA.5, EVA.7, and EVA.8 barrier systems. Installation should be completed by a qualified technician because barrier balancing, power supply wiring, control input setup, photocell positioning, release testing, and obstacle-detection adjustment affect safety and long-term performance. For more installation and technical details, check the official EVA.7 product information before setup. (Automatismi Benincà)

Packing Includes

  • Benincà EVA.7 barrier operator with integrated control unit
  • Integrated receiver
  • Integrated encoder
  • Integrated battery charger

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automatic parking barrier systems with local product support, compatibility guidance, and reliable assistance for gate automation projects. We help customers choose the correct barrier, accessories, and installation setup for safe vehicle access control.

Buy Beninca EVA 7 today from PowerGate Abu Dhabi. Call/WhatsApp: +971 50 88 44933 or email us: sales@powergatead.com.



Reviews

There are no reviews yet.

Be the first to review “Beninca EVA 7 Parking Gate Barrier”

Your email address will not be published. Required fields are marked *

The Benincà EVA.7’s 7.0m boom arm covers wide vehicle lanes found at Abu Dhabi warehouse loading docks, dual-lane parking entrances, hotel drop-off zones, and industrial facility access roads. Standard single parking lanes are 3–4m wide; dual carriageway entrances reach 6–7m. The EVA.7 is the widest barrier in the Benincà range at POWERgate Abu Dhabi, handling spans that would require two narrower barriers in a split configuration.

The EVA.7’s adjustable 3.5–6 second opening range lets installers tune arm speed to site conditions. A 3.5s faster setting suits high-throughput Abu Dhabi commercial entrances where vehicles queue. A 6s slower setting is safer at sites with pedestrian exposure or where the long 7m arm’s momentum at higher speed could cause damage if the arm contacts an obstacle at full travel velocity.

The optional SIS board synchronises two opposed EVA barriers on the same lane — one on each side of the road — so both arms open and close simultaneously from a single command. At Abu Dhabi dual-barrier installations on wide roads where two barriers face each other, SIS prevents one arm opening while the other remains down, ensuring coordinated vehicle flow without needing separate wiring between the two control units.

The EVA.7’s 285 Nm torque far exceeds the Benincà DIVA.3’s brushless motor output, reflecting the mechanical load of moving a 7m aluminium boom arm versus a 3m arm. A longer arm creates more rotational inertia at the pivot point; 285 Nm provides the force to accelerate and decelerate the 7m arm reliably across intensive-use cycles at Abu Dhabi commercial sites.

The EVA.7 must be specified as right-hand or left-hand version based on the approach direction at the Abu Dhabi site. The unit uses grease lubrication (vs oil on the DIVA.3) and stores 64 transmitters in the integrated receiver — sufficient for smaller managed sites. The CP.EVA control unit is shared with EVA.5 and EVA.8 variants. Packing includes barrier operator, receiver, encoder, and battery charger. Contact POWERgate Abu Dhabi on WhatsApp +971 50 884 4933.
