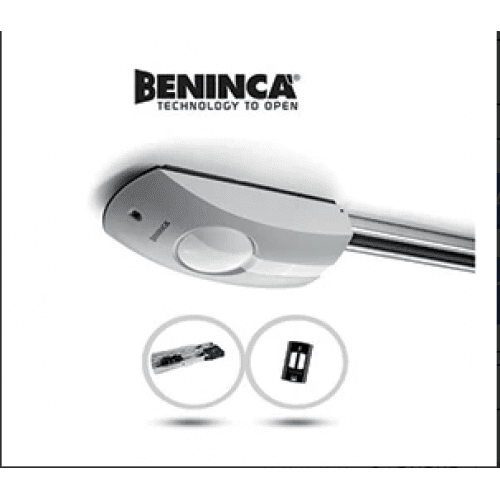

BENINCA JM.3 garage door opener is a 24 Vdc geared motor for intensive-use sectional garage doors in Abu Dhabi. It includes an integrated control unit, encoder-based movement control, 600 N thrust, and up to 11 m² door surface capacity for reliable residential garage automation.
Key Features and Technical Specifications of JM.3
- Official model: BENINCA JM.3
- Product type: Geared motor for sectional garage doors
- Use: Residential
- Motor type: 24 Vdc gear motor
- Power supply: 230 Vac, 50–60 Hz
- Motor supply: 24 Vdc
- Maximum absorbed current: 1 A
- Standby power consumption: Complies with EU 2023/826
- Thrust: 600 N
- Opening speed: 12 m/min
- Duty cycle: Intensive use
- Protection level: IP40
- Built-in control unit: Yes
- Integrated receiver: Yes
- Receiver frequency: 433.92 MHz
- Transmitter memory: Up to 64 transmitters
- Encoder: Yes
- Limit switch: Electronic with encoder
- Operating temperature: -20°C to +50°C
- Maximum door surface area: 11 m²
- Weight: 6.2 kg
- Rail: Not included by manufacturer
- Safety system: Anti-crushing system with amperometric obstacle detection
- Courtesy light: Built-in LED service light
- Optional battery operation: Supported with compatible batteries, not included unless supplied separately
Use Cases
- Residential sectional garage doors
- Villa garage automation
- Private home garage entrances
- Covered parking garage doors
- Small residential parking access points
- Indoor garage automation where IP40 protection is suitable
Compatibility and Installation Notes
BENINCA JM.3 is designed for sectional garage doors up to 11 m² and should be installed with the correct rail, door arm connection, safety photocells, and control accessories. Because this opener uses encoder control, torque management, and anti-crushing safety functions, professional installation is strongly recommended to ensure correct force settings, travel limits, and safe operation. For technical confirmation, check the official BENINCA JM.3 product information. (Benincà)
Packing Includes
- BENINCA JM.3 garage door motor: 1 pc
- Remote control: 2 pcs
- Push button: 1 pc
- Pair of photocells: 1 set
- Fixing bracket: 1 pc
Why Buy from POWERgate Abu Dhabi
POWERgate Abu Dhabi supplies automation products with local support, product guidance, and installation-focused advice for customers in Abu Dhabi. You get practical help before purchase, proper product matching, and after-sales support for garage door automation needs.
Buy BENINCA JM.3 today. Call/WhatsApp: +971 508844933 or email us: sales@powergatead.com.
