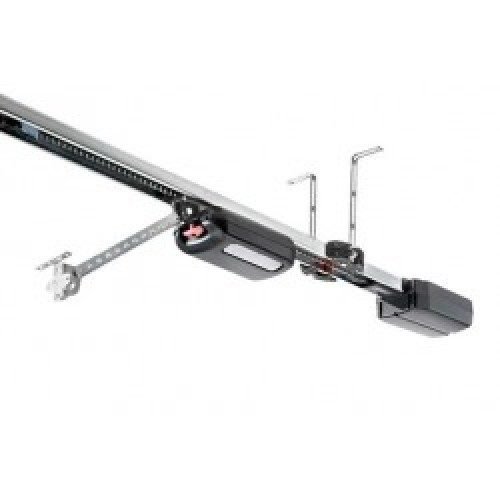

SOMMER S 9110 base+ S3 Garage Door Opener

SOMMER S 9110 base+ S3 garage door opener is a strong 1100N garage door operator for Abu Dhabi homes, villas, parking entrances, and larger residential doors. It supports sectional doors, one-piece doors, up-and-over doors, and side-opening sectional doors when installed with the correct rail setup. The operator uses SOMMER’s 868.95MHz SOMloq2 radio system, integrated LED lighting in the motor carriage, and a ceiling control unit for practical daily use. With a 200kg maximum door weight, 180mm/s running speed, and 0.5W standby consumption, it is built for efficient and reliable garage door automation.

Key Features and Technical Specifications

• Brand: SOMMER
• Product model: S 9110 base+ S3
• Product type: Garage door operator with ceiling control
• Article number: S15024-00001
• Maximum pull and pushing force: 1,100N
• Maximum sectional door size: 8,000mm width × 2,500mm height
• Maximum one-piece door size: 8,000mm width × 2,750mm height
• Maximum up-and-over door size: 8,000mm width × 2,050mm height
• Maximum side-opening sectional door / side-opening door size: 6,850mm width × 3,000mm height
• Standard travel length: 2,750mm
• Maximum extended travel length: 7,100mm with 4 × 1,096mm extensions
• Maximum door weight: 200kg
• Maximum running speed: 180mm/s
• Standby power consumption: 0.5W
• Motor duty cycle: ED 40% S3
• Radio memory positions: 40
• Radio receiver: Integrated FM 868.95MHz SOMloq2 receiver
• Lighting: LED lighting in the motor carriage
• Hand transmitter: Pre-programmed Pearl Vibe 4-command handheld transmitter
• Remote feedback: Vibration feedback for radio commands
• Rail type: 3-piece rail
• Control type: Ceiling control unit
• Maximum recommended spaces: 50

Use Cases

• Residential garage doors
• Villa garage door automation
• Sectional garage doors
• One-piece garage doors
• Up-and-over garage doors
• Side-opening sectional doors
• Private parking entrances
• Larger residential doors up to 200kg
• Garage automation projects requiring 1100N force

Compatibility and Installation Notes

The SOMMER S 9110 base+ S3 garage door opener is compatible with sectional, one-piece, up-and-over, and side-opening garage doors when the correct rail, travel length, mounting brackets, and door hardware are selected. Before installation, the door must be balanced correctly, the ceiling structure must support the operator, and safety devices should be positioned properly. Professional installation is recommended because the wrong rail extension, poor door alignment, or unsafe force setting can reduce performance and create avoidable risk. For official technical details, check the SOMMER product information page.

Packing Includes

• 1 × Motor carriage with integrated radio receiver
• 1 × Pre-programmed Pearl Vibe 4-command handheld transmitter
• 1 × 3-piece rail
• 1 × Ceiling control unit
• 1 × Ceiling suspension unit
• 1 × Attachment to header
• 1 × Push arm
• 1 × Door bracket
• 1 × Mounting material set

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies garage door automation products with local support for Abu Dhabi customers. Buyers get proper guidance for operator force, door size, rail length, accessory matching, and installation planning instead of relying on copied product descriptions that may not fit the actual door.

Buy SOMMER S 9110 base+ S3 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.
