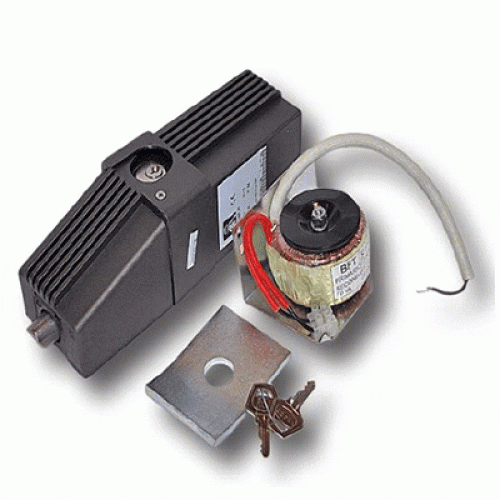

BFT EBP 24 vertical electric gate lock kit with transformer, mounting plate, cable and keys.

BFT EBP 24 Electric Lock

Name: BFT EBP 24 Electric Lock | POWERgate Abu Dhabi
Price: 450 AED
Availability: InStock

Vertical drop-down electric lock for automated swing gates, with 120/230V 50/60Hz supply, 230/24V transformer, IP44 rating, thermal protection, 15A inrush current and -20°C to +55°C operation.

AED 450

Product Overview

BFT EBP 24 Electric Lock is a vertical drop-down electric lock for automated swing gates in Abu Dhabi. It is designed to improve gate locking strength by transferring closing forces to the electromechanical lock instead of the gate motor, helping the automation system operate more reliably over time. The official BFT model is EBP 24 with product code P123001 00013 and international code 2600520. It includes 120/230V 50/60Hz operation with a 230/24V transformer that can be installed on the control panel.

Key Features and Technical Specifications

Brand: BFT
Product name: EBP 24
Product type: Vertical drop-down electric lock
Product code: P123001 00013
International code: 2600520
Application: Automated swinging gates
Power supply: 120/230V 50/60Hz
Transformer: 230/24V transformer installable on the control panel
Thermal protection: Yes
Interconnectivity: No
Operating temperature: -20°C to +55°C
IP rating: IP44
Inrush current: 15 A
Holding current for retracted bolt: 1450 mA
External key block: Can be added with compatible accessories
Opening direction support: Suitable for inward or outward swing gate installations when installed correctly

Use Cases

Residential swing gates
Villa entrance gates
Commercial swing gate automation
Building access gates
Warehouse swing gate entrances
Large swing gates exposed to wind or manual pushing force
Reversible swing gate operator installations requiring secure locking

Compatibility and Installation Notes

The BFT EBP 24 Electric Lock is compatible with automated swing gate systems where a vertical drop-down lock is required for improved closing security. It is especially useful with reversible operators and larger swing gates that need additional mechanical locking support. Correct positioning, wiring, transformer connection, ground plate direction and control panel compatibility must be checked before installation. For more technical details, review the official BFT product documentation. Professional installation is recommended to ensure safe operation, proper locking alignment and long-term reliability in Abu Dhabi gate automation systems.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies reliable automation products with local support, installation guidance and after-sales assistance for customers in Abu Dhabi. We help buyers choose the right electric lock for their gate automation system and ensure the product is suitable for the application before installation.

Buy BFT EBP 24 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “BFT EBP 24 Electric Lock”

Why add the BFT EBP 24 electric lock to an Abu Dhabi swing gate?

The BFT EBP 24 is a vertical drop-down lock that transfers closing forces to the lock instead of the gate motor. That helps large swing gates exposed to wind or manual pushing, and reversible operators that cannot hold a closed leaf by themselves. In Abu Dhabi, strong winds make it a sensible addition on heavy leaves.

How should the BFT EBP 24 be powered, given its 15 A inrush and 1450 mA holding current?

The BFT EBP 24 runs from 120/230V mains through a 230/24V transformer that can sit on the control panel. It draws a 15 A inrush and holds the retracted bolt at 1450 mA, so size the supply and wiring for that peak. It has thermal protection but no interconnectivity.

The BFT EBP 24 drops a vertical bolt into the ground — how do I keep it working in Abu Dhabi dust?

The BFT EBP 24 drops a bolt into a ground plate, so keep that receiving hole drained and free of sand, because Abu Dhabi dust and rain can block it and stop the leaf latching. Fit the ground plate in the correct direction for inward or outward gates, and ask POWERgate Abu Dhabi about the external key block accessory.

At AED 450, how does the BFT EBP 24 compare with the BFT EBP AC A 230V lock?

At AED 450, the BFT EBP 24 (code P123001 00013, international code 2600520) is AED 130 cheaper than the BFT EBP AC A 230V lock at AED 580. The EBP 24 uses a 24V system with a transformer, so choose by your control panel’s supply and confirm with POWERgate Abu Dhabi on WhatsApp +971 50 884 4933.
