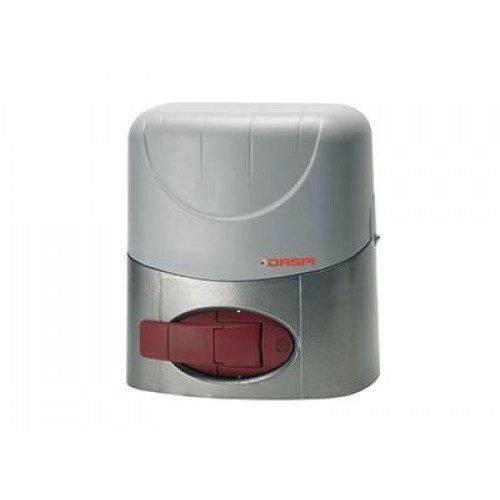

DASPI MAX 800 sliding gate motor with grey casing and red manual release
✓ 100% Genuine Brand Product
★ 1 Year Warranty
➤ UAE Wide Delivery
⚙ Technical Support

DASPI MAX 800 Sliding Gate Motor 800kg

230V sliding gate gear motor for gates up to 800kg, 300W rated power, 1.1A absorbed power, IP44 protection, Z14 M4 pinion, 58 rpm output, capacitor operation and manual release compatibility.



AED 2,650

Product price:AED 2,650
Total options:
Order total:
- +
Category: Tags: , , , Brand:

Product Overview

DASPI MAX 800 motor is an electromechanical gear motor for sliding gates up to 800kg, suitable for automated vehicle access in Abu Dhabi villas, parking entrances, and commercial properties. The DASPI MAX series is designed for sliding gate automation, with the MAX 800 model specified for heavier gate operation. It works with a 230V AC power supply and includes technical features such as IP44 protection, Z14 M4 pinion, and manual-release-based installation requirements. For safe, reliable use, the gate structure, rack alignment, electrical protection, and safety accessories must be checked before installation. A related DASPI sliding gate motor is the DASPI IDEA 600.

Key Features and Technical Specifications

  • Product model: DASPI MAX 800
  • Product type: Gear motor for sliding gate automation
  • Maximum gate weight: 800kg
  • Power supply: 230V ±10%, 50Hz
  • Rated power: 300W
  • Absorbed power: 1.1A
  • Thrust: 780N
  • Operating temperature: -25°C to +70°C
  • Capacitor: 16µF
  • Work cycle: 40%
  • Output revolutions: 58 rpm
  • Pinion: Z14 M4
  • Protection class: IP44
  • Motor weight: 12kg
  • Manual release/key operation: Required for emergency/manual operation setup

Use Cases

  • Residential sliding gates
  • Villa entrance gates
  • Commercial parking entrances
  • Car parking access systems
  • Warehouse sliding gates
  • Light commercial automation systems
  • Controlled vehicle entry points in Abu Dhabi

Compatibility and Installation Notes

The DASPI MAX 800 motor is compatible with sliding gates up to 800kg when the gate is mechanically smooth, correctly balanced, and fitted with a suitable rack and safety accessories. The installation should include a 230V electrical line, photocells, flashing light, rack, key selector, mechanical stops, safety signage, and appropriate electrical protection as shown in the manufacturer installation manual. The manual notes that the MAX motor is not equipped with a mechanical clutch, so it must be installed with a DASPI control panel or a compatible control unit with electronic clutch/friction control. Professional installation is recommended to ensure correct alignment, safe force adjustment, electrical isolation, and reliable long-term operation.

Why Buy from POWERgate Abu Dhabi

POWERgate Abu Dhabi supplies automation products with local support, product guidance, and installation-focused assistance for Abu Dhabi customers. We help buyers choose suitable sliding gate motors and compatible accessories for safe, reliable gate automation.

Buy DASPI MAX 800 today from POWERgate Abu Dhabi. Call/WhatsApp: +971 50 884 4933 or email us: sales@powergatead.com.

Reviews

There are no reviews yet.

Be the first to review “DASPI MAX 800 Sliding Gate Motor 800kg”

Your email address will not be published. Required fields are marked *

The DASPI MAX 800 and the DASPI IDEA 600 KG are both DASPI sliding gate motors for residential and commercial use. The MAX 800 uses 230V AC at 300W, handles 800 kg at 780N, 40% work cycle, IP44, -25°C to +70°C, Z14 M4 pinion, and no mechanical clutch. The IDEA 600 KG handles 600 kg with built-in WiFi, RX Multi 433-868 MHz, and a choice of 24V or 230V. The MAX 800 is the heavier-gate specialist; the IDEA 600 KG is the smart-connectivity and dual-voltage choice at 600 kg.

Yes — the DASPI MAX 800’s -25°C to +70°C operating temperature range is the widest of any motor in the POWERgate Abu Dhabi sliding gate range. Most residential sliding gate motors are rated to -20°C at the cold end and +55°C at the upper limit. The MAX 800’s +70°C ceiling matches the CAME BY 3500T industrial motor. For Abu Dhabi gate pillar positions exposed to direct afternoon sun, where motor body temperatures can exceed +55°C in summer, the MAX 800’s +70°C upper rating provides the most robust thermal headroom of any standard-voltage sliding gate motor in the range.

DASPI explicitly states the MAX 800 is not equipped with a mechanical clutch. A mechanical clutch provides physical obstacle protection by slipping when the motor force exceeds a set threshold. Without one, the MAX 800 requires a DASPI control panel or compatible control unit with electronic clutch or friction control to provide obstacle detection and motor cut-off. Using a generic or non-DASPI control panel without electronic force management on the MAX 800 creates a safety risk for a 800 kg gate. The control unit must be specified and confirmed compatible before purchase.

The DASPI MAX 800’s 16µF capacitor is the largest published capacitor value for a sliding gate motor in the range, providing a strong reactive current for reliable 230V motor startup under 800 kg gate resistance. The Z14 M4 pinion at 58 rpm output means the motor shaft rotates at 58 revolutions per minute, driving the 14-tooth M4 pinion across the gate rack. The Z14 produces a slower linear gate speed than a Z17 or Z18 pinion at the same rpm, trading speed for greater rack engagement force at 780N thrust, suitable for an 800 kg gate.

The DASPI MAX 800 carries a 24-month warranty. Critical pre-installation confirmations: the DASPI control panel or compatible unit with electronic force control must be specified before ordering — a standard panel without this is insufficient. IP44 requires sheltered mounting. The 40% work cycle limits gate frequency to standard residential use. The 12 kg motor requires a correctly rated foundation. Photocells, rack, blinker, key selector, mechanical stops, and signage must all be sourced separately. Contact POWERgate Abu Dhabi on WhatsApp (+971 50 884 4933) or sales@powergatead.com.
