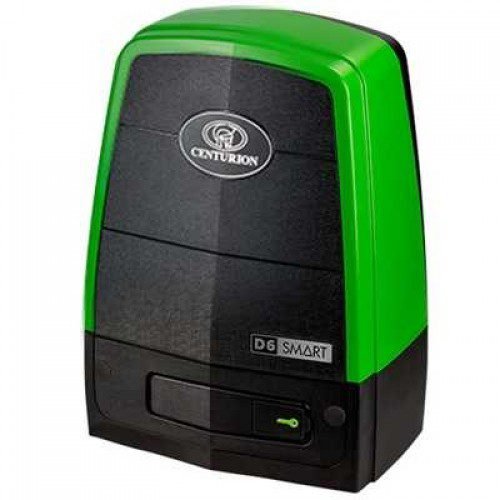

Centurion D6 Smart Sliding Gate Motor

Product Overview

Centurion D6 Smart is a 24V sliding gate motor designed for residential, villa, commercial, and light-industrial sliding gates up to 600kg. It combines smart setup, fast gate movement, battery-backed operation, theft-deterrent protection, and electronic collision sensing for safer daily use. For Abu Dhabi customers, this motor is suitable where reliable gate automation, strong access control, and smooth operation are required. The onboard multichannel NOVA receiver supports high remote storage capacity, while Hall Effect position control helps maintain accurate gate movement with reduced interference.

Key Features and Technical Specifications

• Product name: Centurion D6 Smart Sliding Gate Motor
• Gate weight capacity: Up to 600kg
• Maximum gate length: 100m
• Motor voltage: 24V DC
• Input voltage: 90V–240V AC ±10% @ 50Hz
• Current consumption on mains: 200mA
• Battery charger current output: 1.3A
• Maximum operations per day: 150
• Duty cycle with mains present: 50%
• Motor power supply: Battery-driven standard capacity system using 2 × 12V batteries
• Current consumption at rated motor load: 13A
• Starting push force: 30kgf
• Rated push force: 17kgf
• Gate speed: 35m/min @ 17kgf, varies with load
• Manual override: Lockable with key release
• Collision sensing: Electronic
• Operating temperature range: -15°C to +50°C
• Onboard receiver type: Code-hopping multichannel receiver with selective add and delete
• Receiver storage capacity: 1500 remotes
• Receiver frequency: 433.92MHz
• Degree of protection: IP55
• Packed mass with standard kit, excluding rack and battery: 9.1kg
• Packaging dimensions, excluding rack and battery: 325mm wide × 244mm deep × 445mm high
• Smartphone setup and configuration supported
• Improved theft-deterrent cage with patented design
• Vibration sensor output for third-party tamper notification device
• Intelligent battery charger with onboard diagnostics
• Hall Effect position control system
• Individually configurable inputs and outputs
• Convenient single-action manual release

Use Cases

• Residential sliding gates
• Villa entrance gates
• Commercial access gates
• Parking entrance gates
• Light-industrial sliding gates
• Warehouse access gates within the 600kg rating
• Gated property entrances requiring smart access control
• Sites requiring battery backup during power failure

Compatibility and Installation Notes

The Centurion D6 Smart is compatible with sliding gates up to 600kg and up to 100m in length, provided the gate structure, track, guide rollers, end-stops, rack alignment, and safety accessories are correctly installed. Professional installation is strongly recommended because incorrect foundation placement, unsafe force settings, poor cabling, or missing safety beams can damage the motor and create serious safety risks. Installers should follow the official D6 SMART installation manual for technical setup, wiring, safety, and commissioning guidance.

Packing Includes

• Centurion D6 Smart motor unit
• Onboard multichannel NOVA receiver
• Intelligent battery charger
• Lockable manual release system
• Standard motor casing and internal control components
• Packing details not fully specified by manufacturer
• Rack not included unless supplied separately
• Batteries not included unless supplied separately
